Hummer
>>
2009
>>
H2 V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Control ( Automatic - Electronic )
>>
Suspension Main Relay
Suspension Main Relay

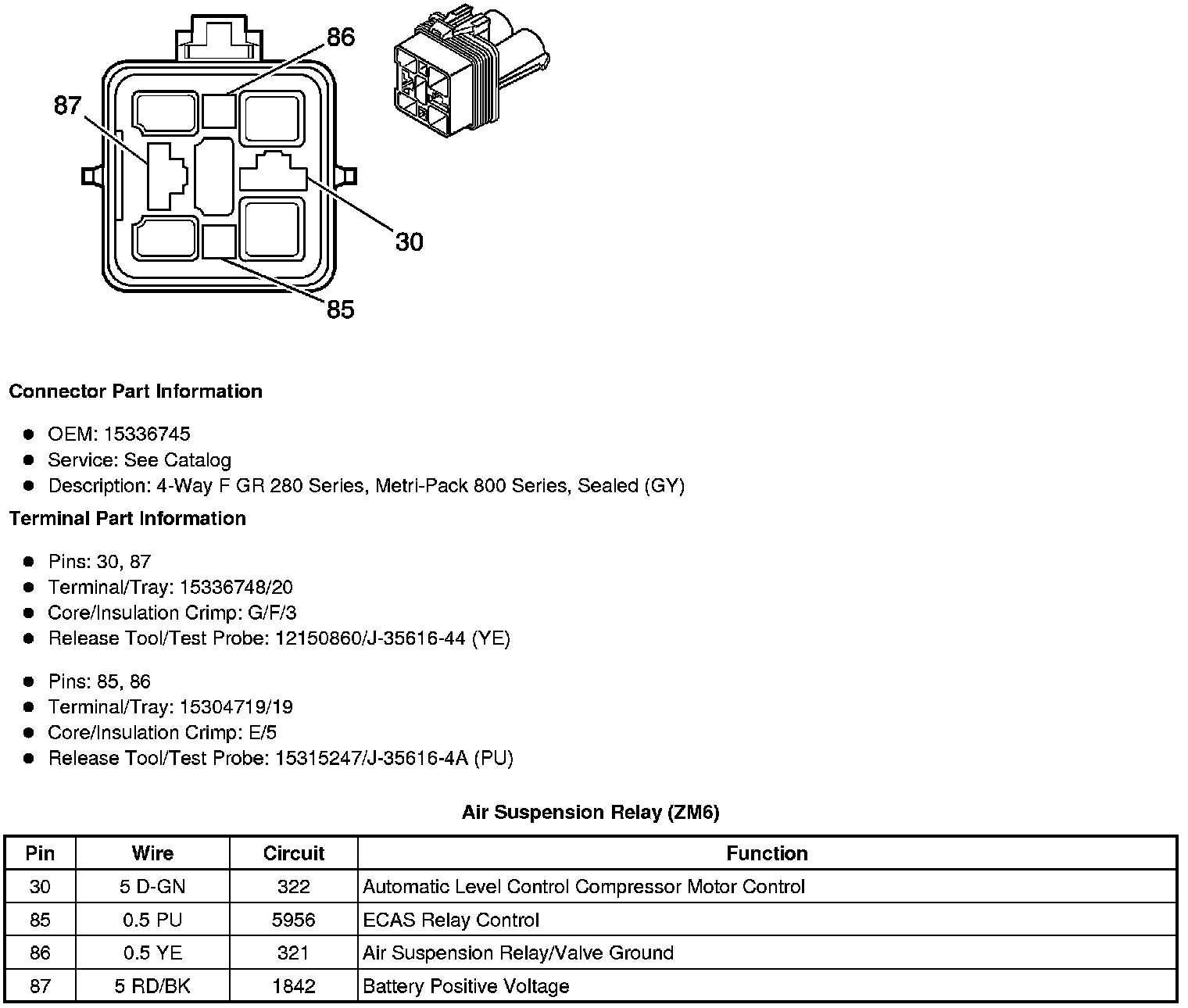

Component Connector End Views
Air Suspension Relay (ZM6)
