Suspension Control ( Automatic - Electronic )
>>
Suspension Control Pressure Sensor/Switch
>>
Air Suspension Sensor - Right Rear (ZM6)
Air Suspension Sensor - Right Rear (ZM6)

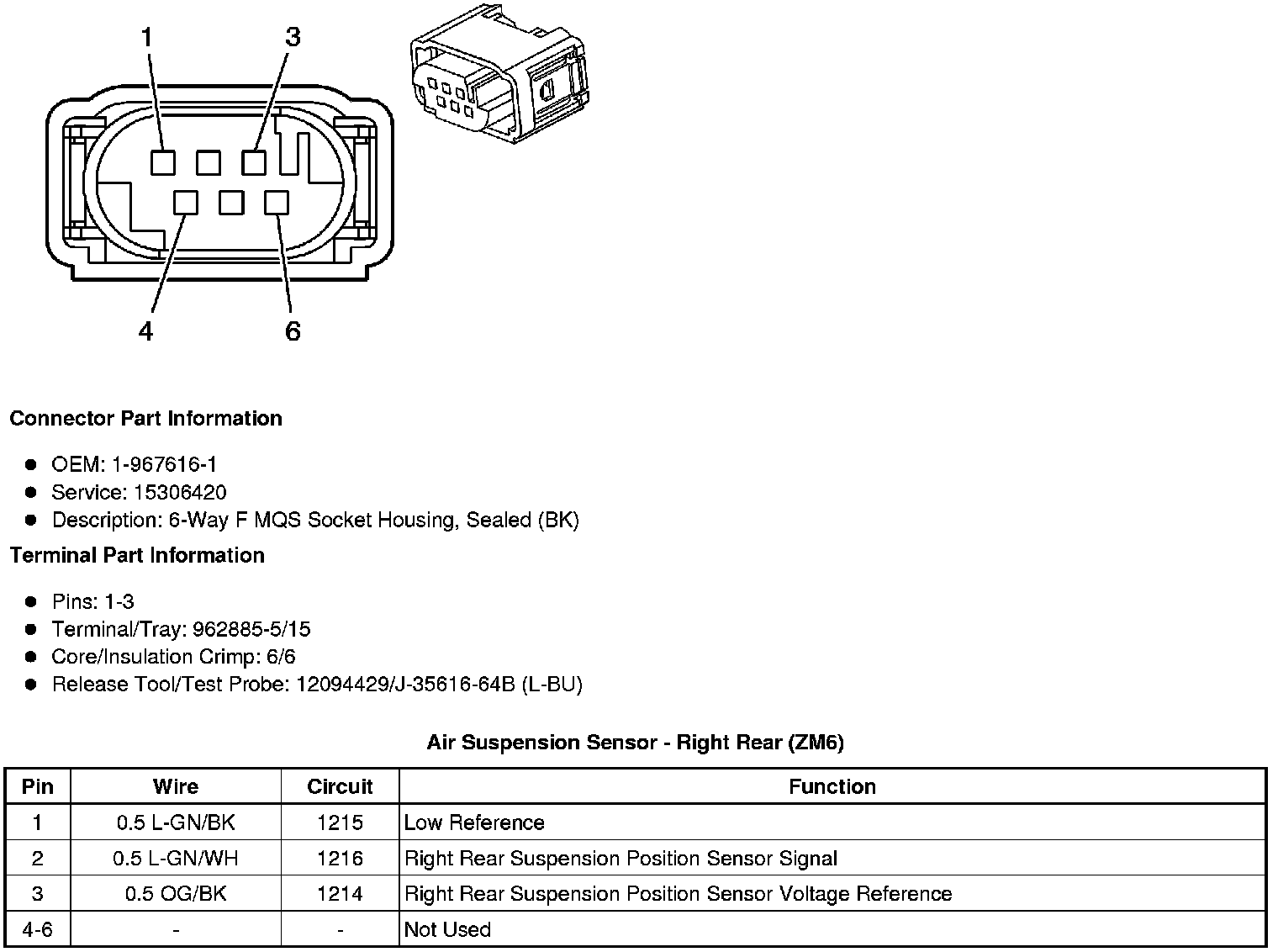

Component Connector End Views
Air Suspension Sensor - Right Rear (ZM6)
