Seat Temperature Element
>>
Heated Seat Element - Passenger Back
Heated Seat Element - Passenger Back

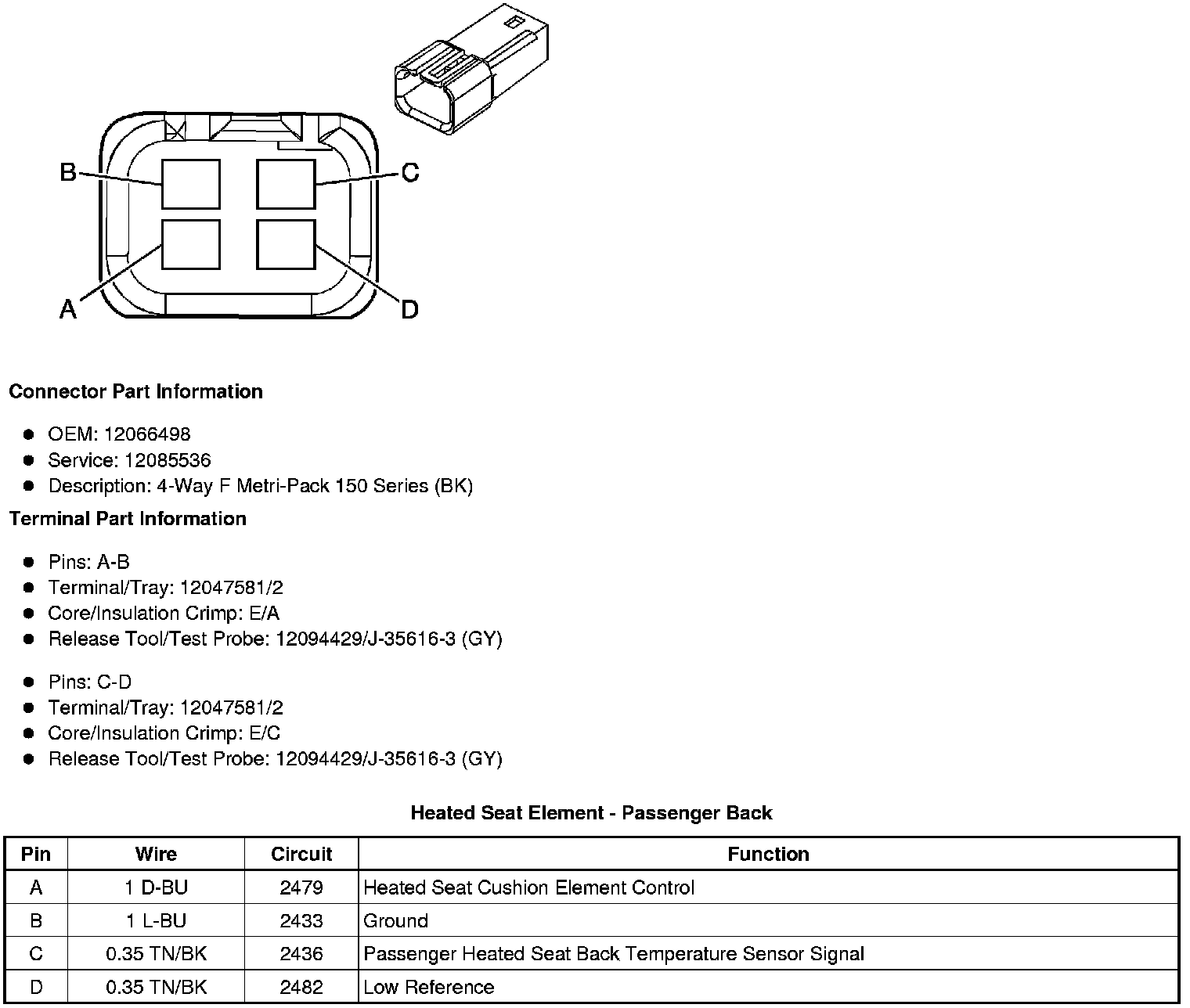

Component Connector End Views
Heated Seat Element - Passenger Back
