Home >> Hummer >> 2009 >> H2 V8-6.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Element >> Heated Seat Element - Left Rear Cushion

Heated Seat Element - Left Rear Cushion

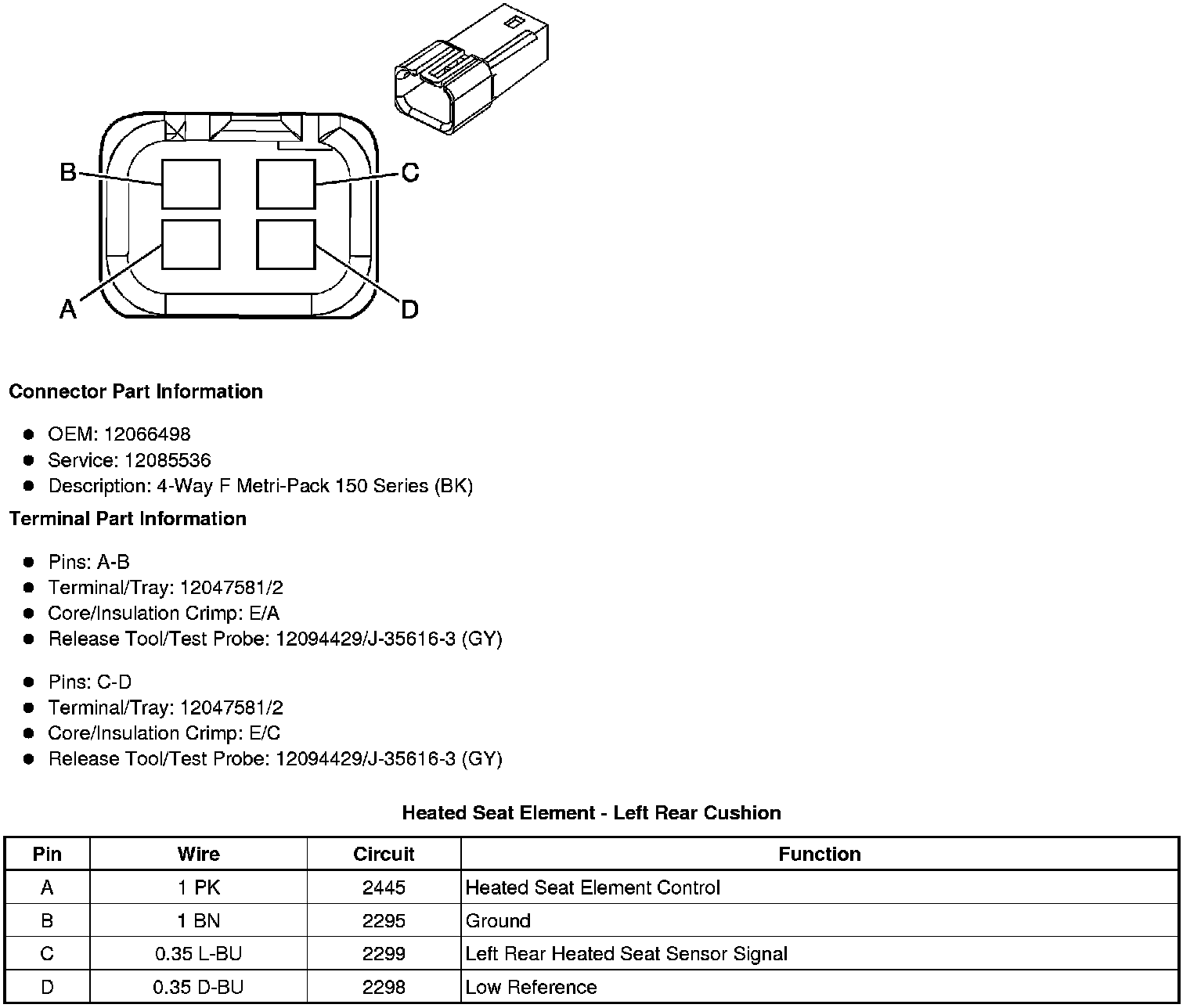

Component Connector End Views

Heated Seat Element - Left Rear Cushion
