Rear Door Latch
>>
Door Latch - Right Rear
Door Latch - Right Rear

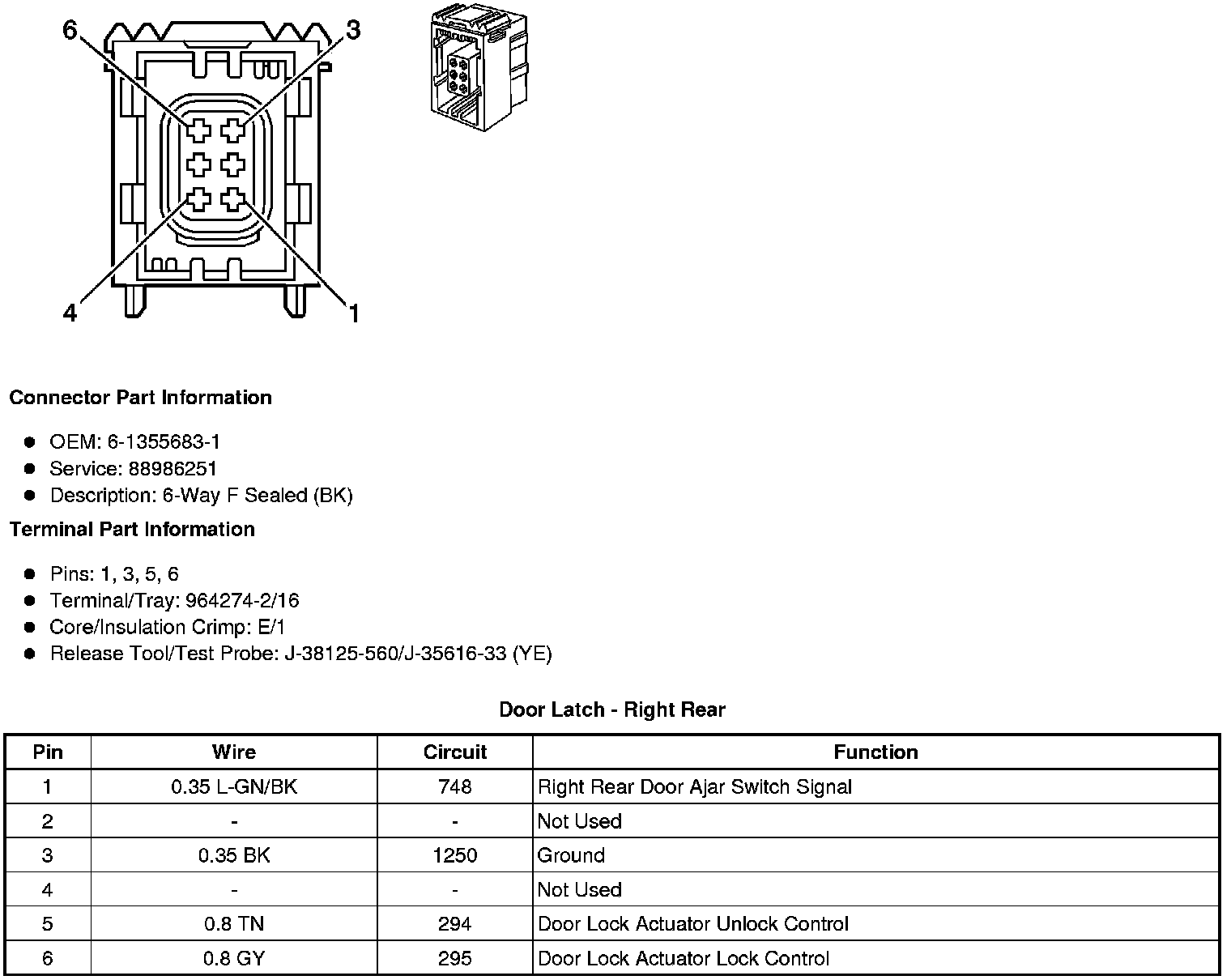

Component Connector End Views
Door Latch - Right Rear
