Rear Door Latch
>>
Door Latch - Left Rear
Door Latch - Left Rear

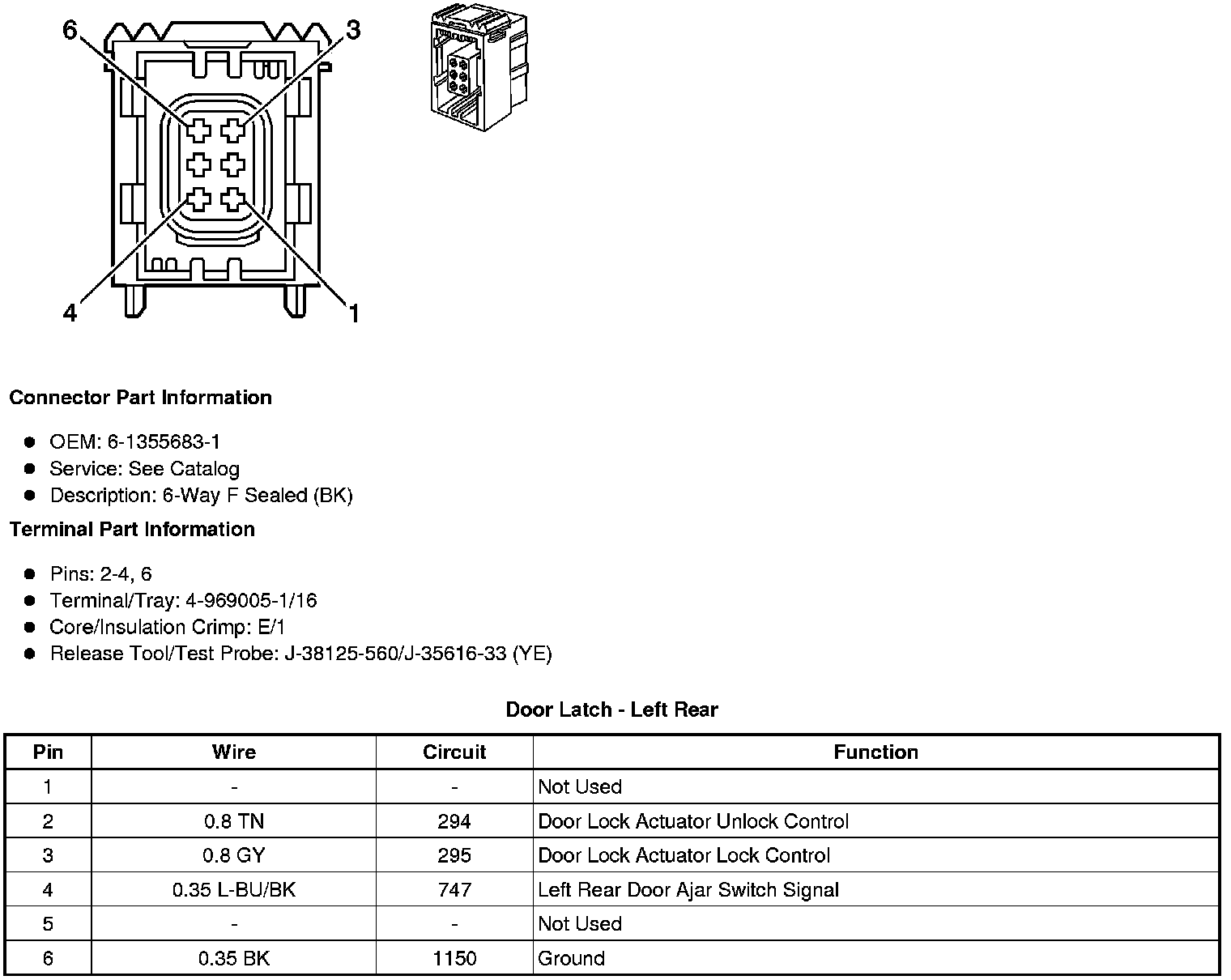

Component Connector End Views
Door Latch - Left Rear
