Hummer
>>
2009
>>
H2 V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio/Stereo
>>
System Diagram
>>
Radio X3 (U42)
Radio X3 (U42)

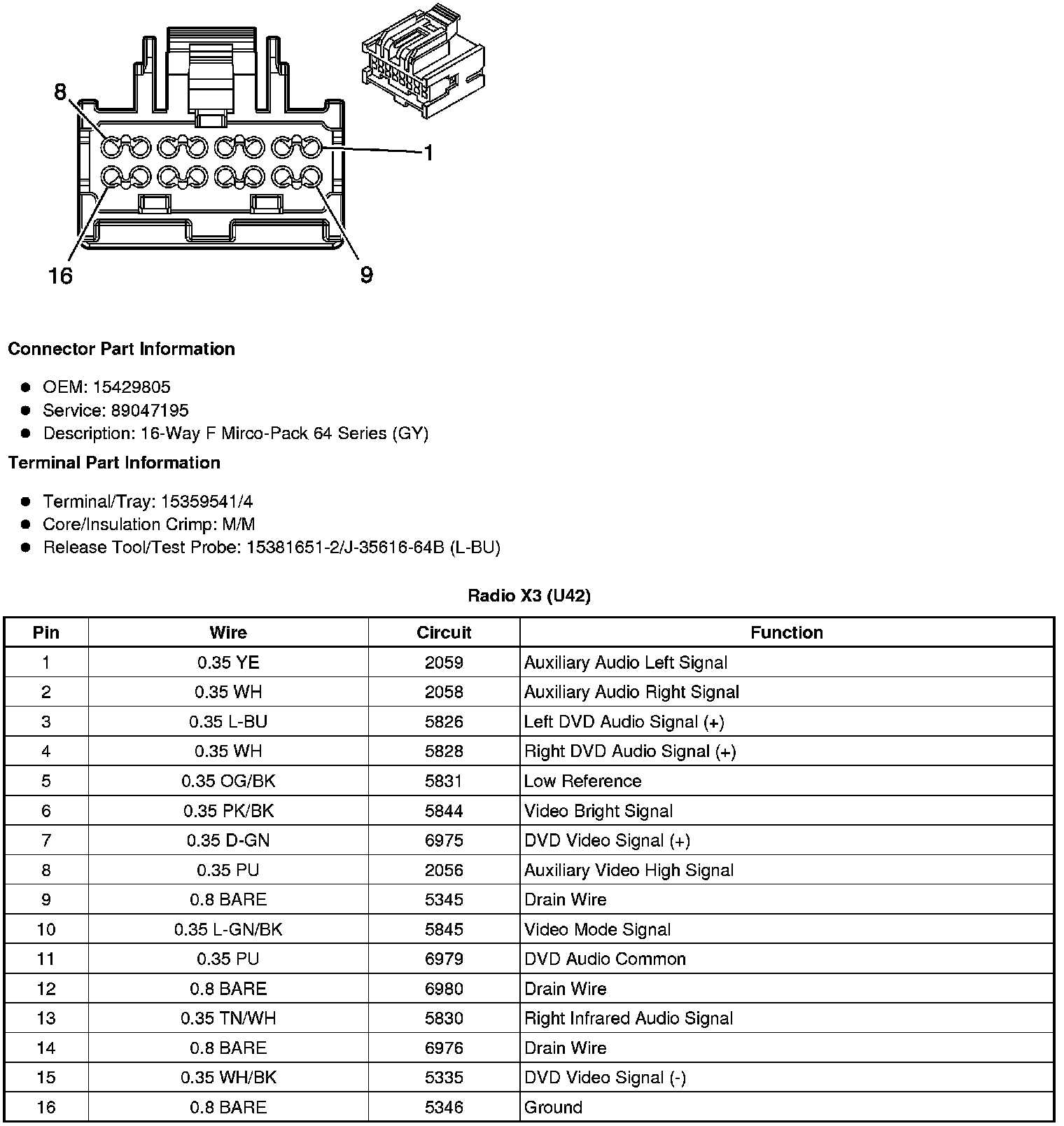

Component Connector End Views
Radio X3 (U42)
