Hummer
>>
2009
>>
H2 V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>
Seat Lumbar Switch - Passenger
Seat Lumbar Switch - Passenger

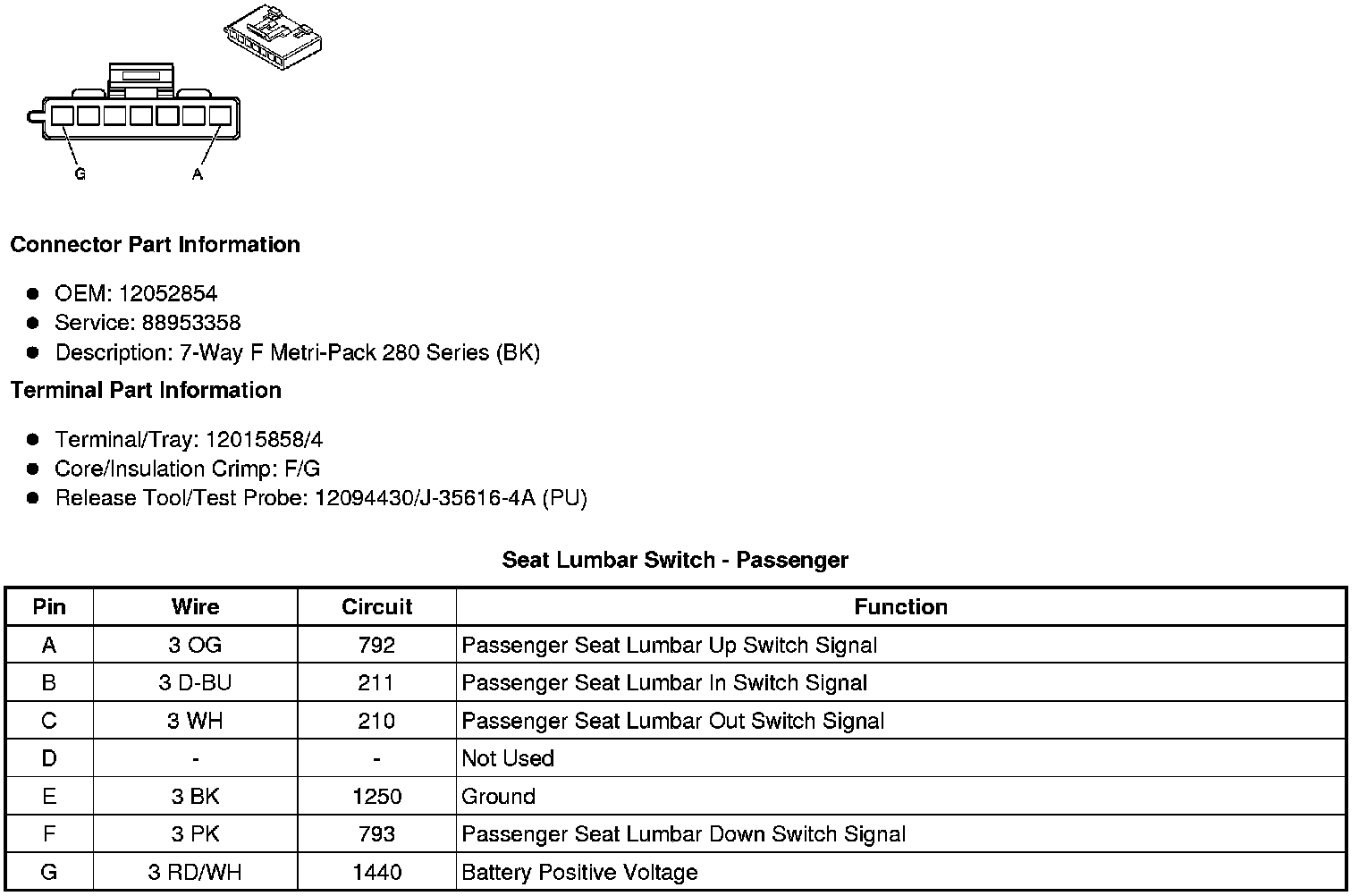

Component Connector End Views
Seat Lumbar Switch - Passenger
