Power Seat Motor
>>
Seat Adjuster Motor Assembly - Passenger

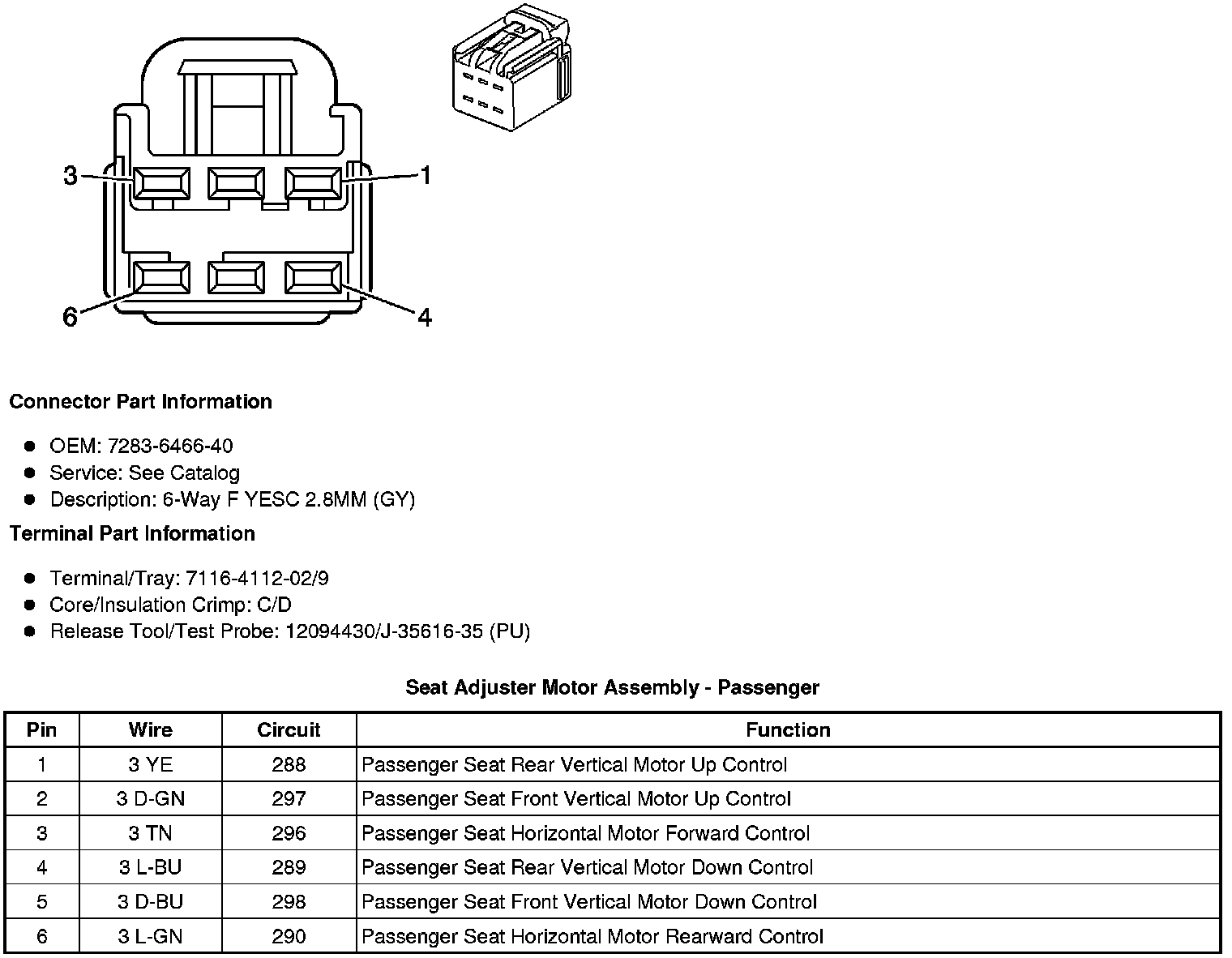

Seat Adjuster Motor Assembly - Passenger
Component Connector End Views
Seat Adjuster Motor Assembly - Passenger
