Power Seat Motor
>>

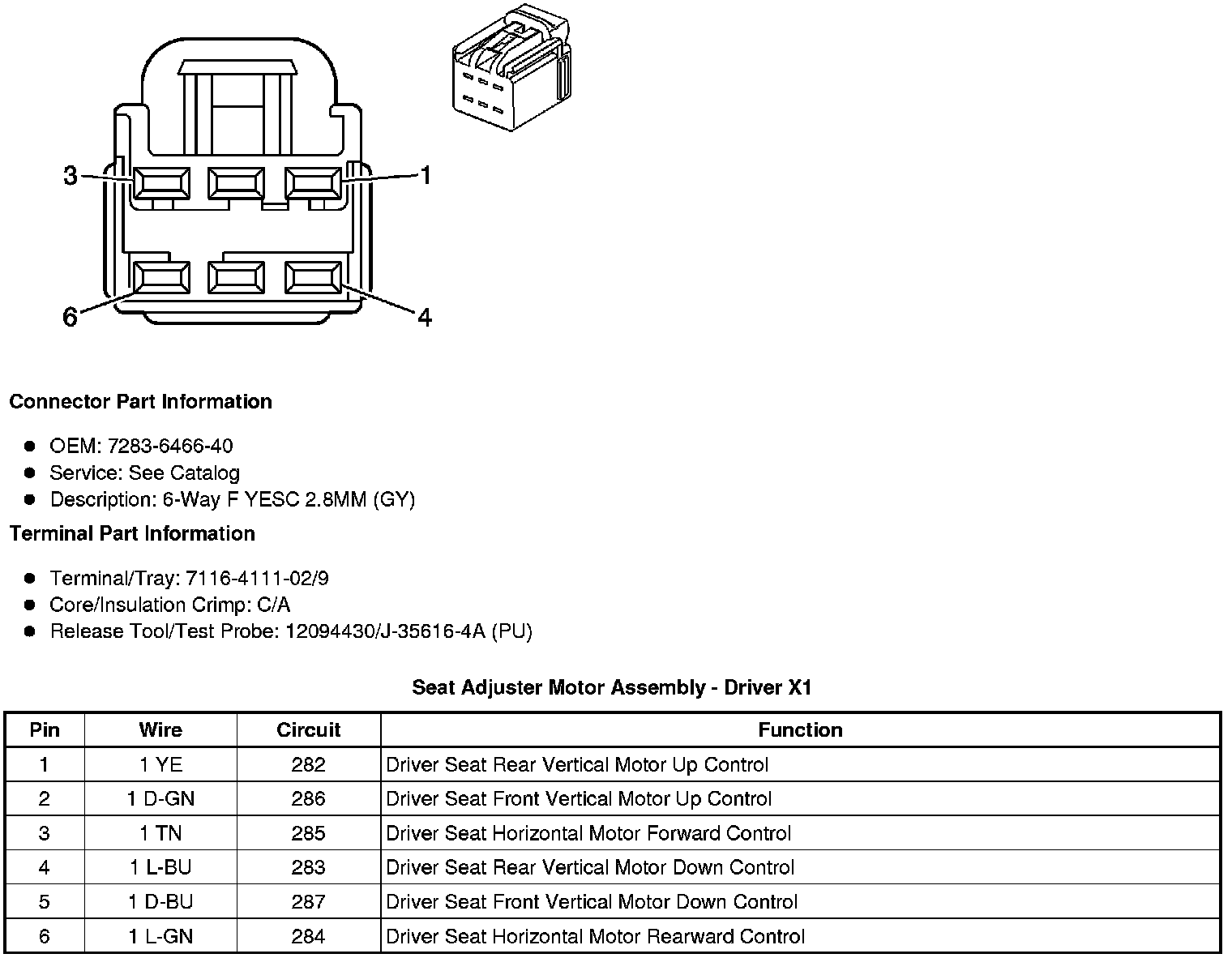

Seat Adjuster Motor Assembly - Driver X1
Seat Adjuster Motor Assembly - Driver X1
Component Connector End Views
Seat Adjuster Motor Assembly - Driver X1
