Home >> Hummer >> 2009 >> H2 V8-6.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Parking Lamp >> Park/Turn Signal Lamp - Right Front

Park/Turn Signal Lamp - Right Front

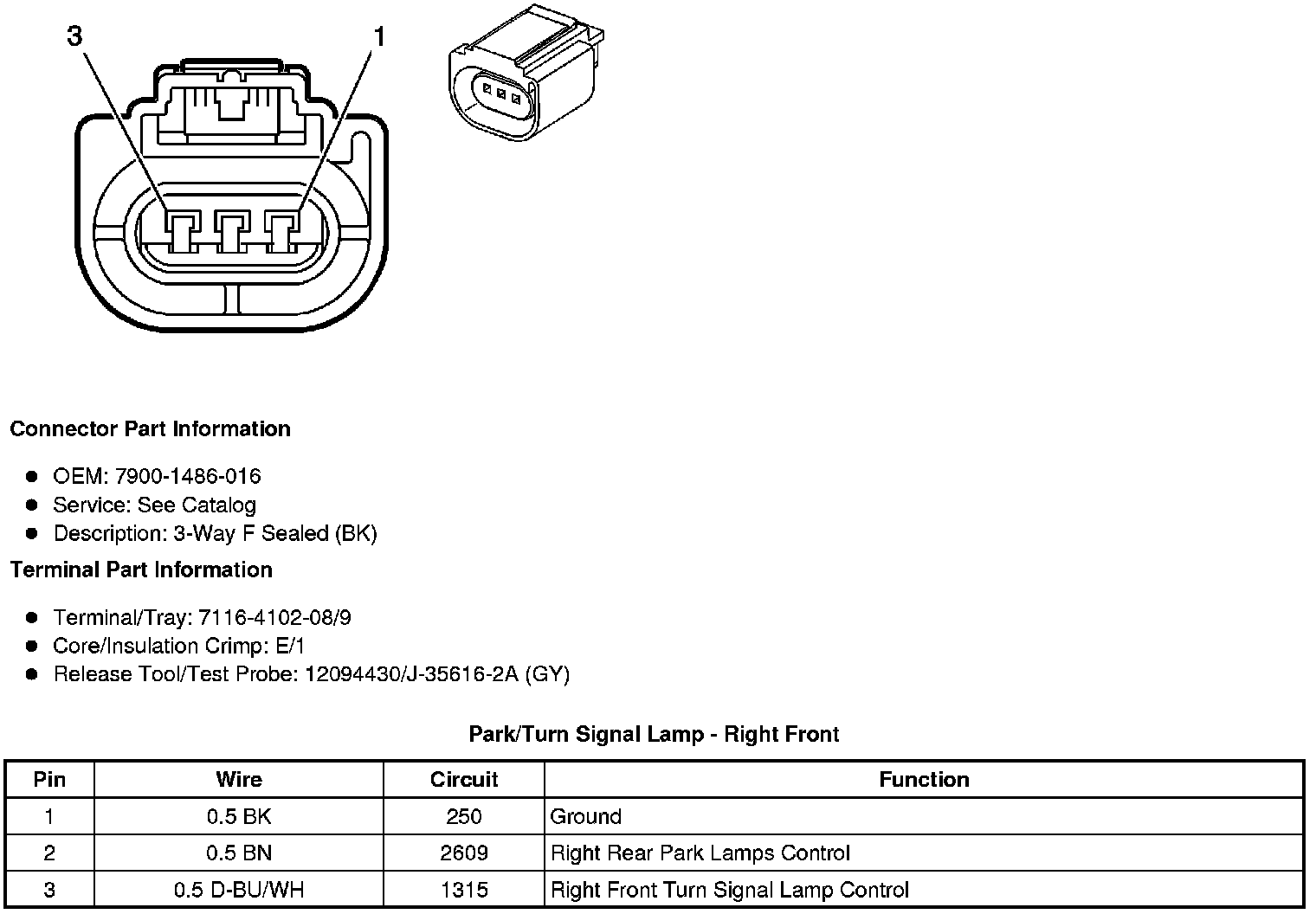

Component Connector End Views

Park/Turn Signal Lamp - Right Front
