X325

Inline Harness Connector End Views

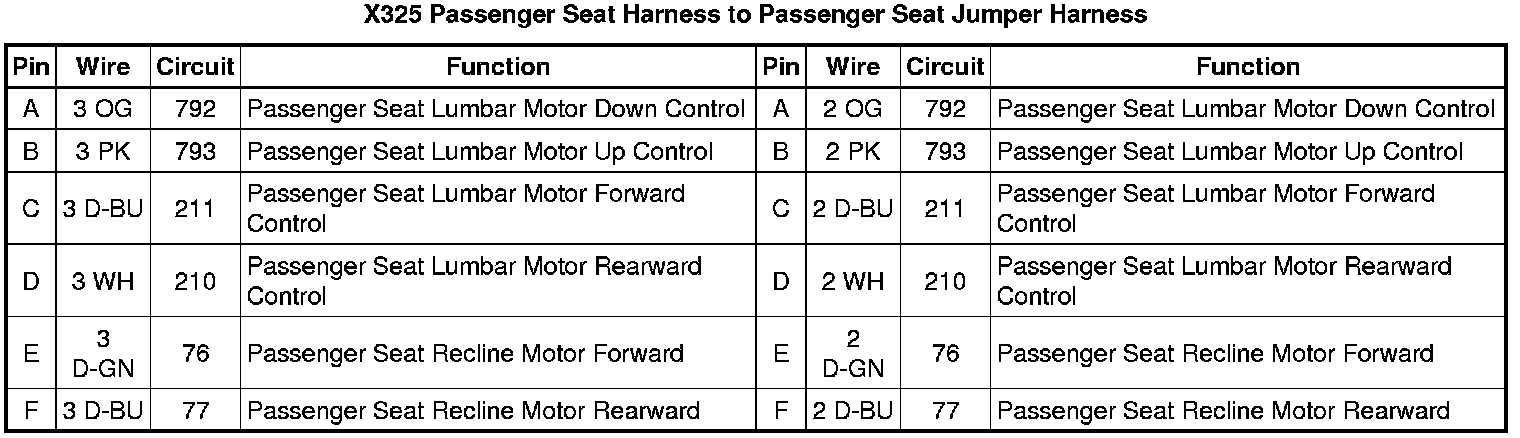

X325 Passenger Seat Harness to Passenger Seat Jumper Harness
