Instrument Cluster / Carrier
>>
Multifunction Switch - I/P
Multifunction Switch - I/P
Component Connector End Views

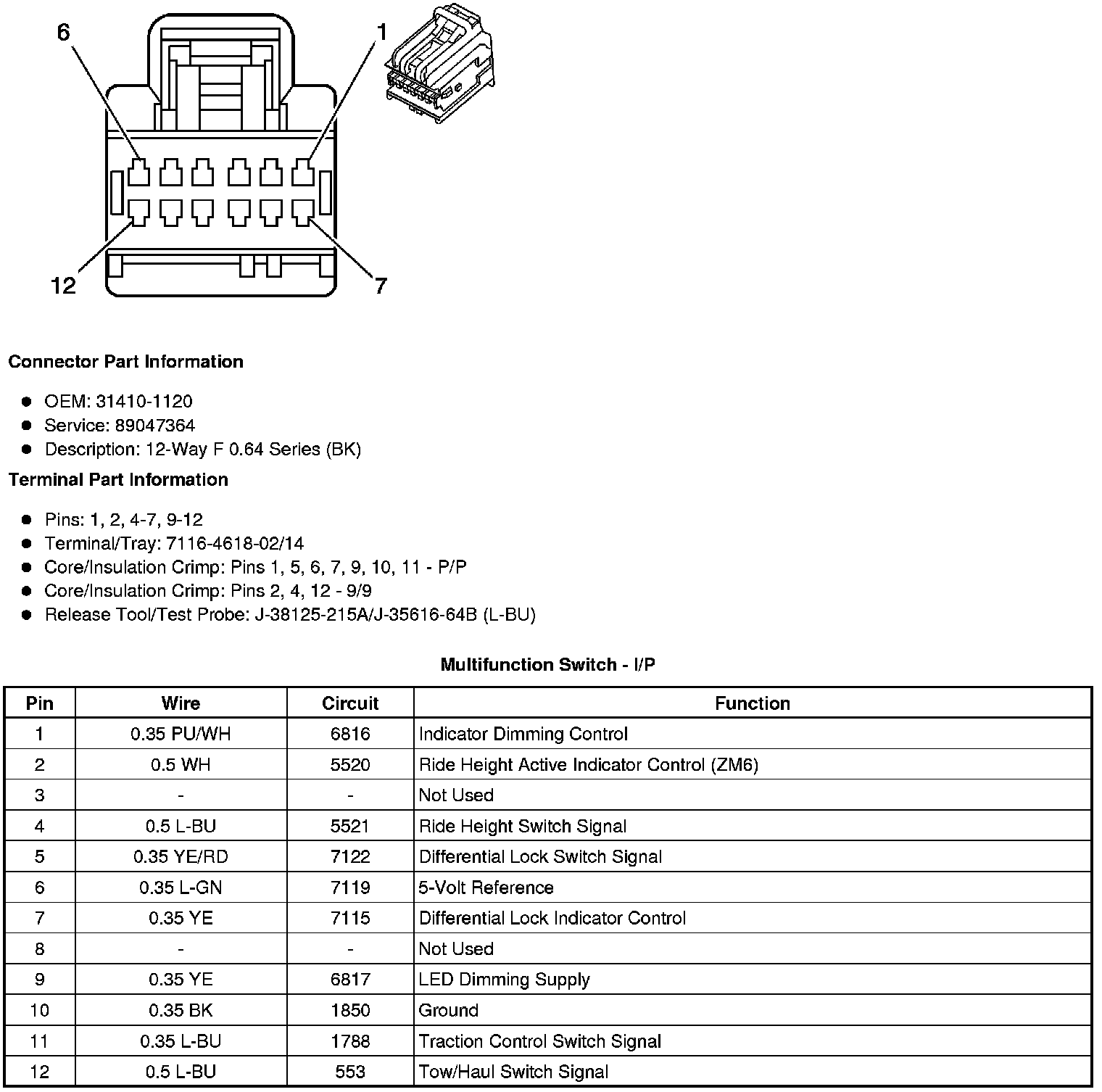

Multifunction Switch - I/P
