Connector Views
>>
Ignition Coil
>>
Ignition Coil 2
Ignition Coil 2

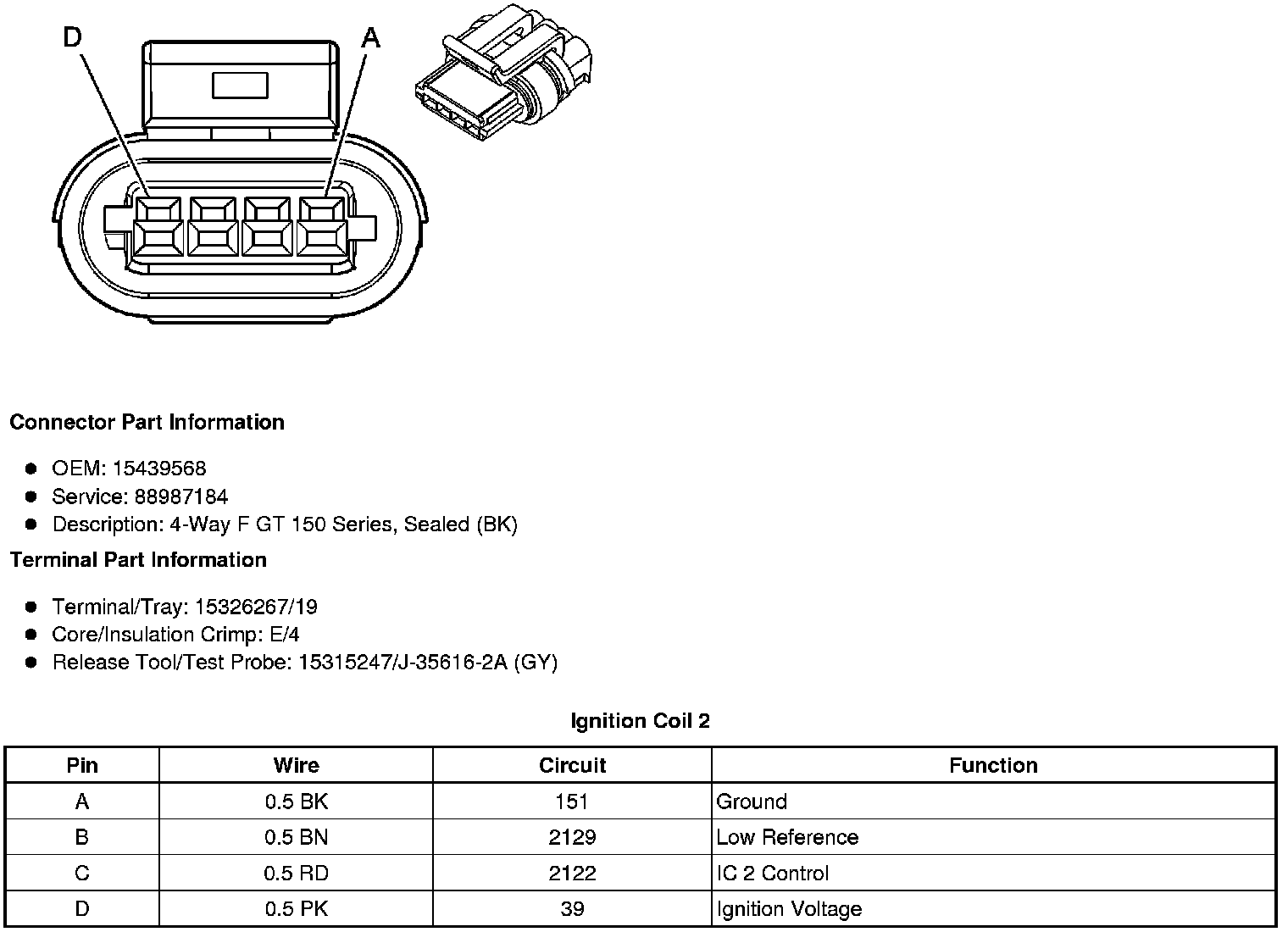

Component Connector End Views
Ignition Coil
2
