Front Door Latch
>>
Door Latch - Driver
Door Latch - Driver

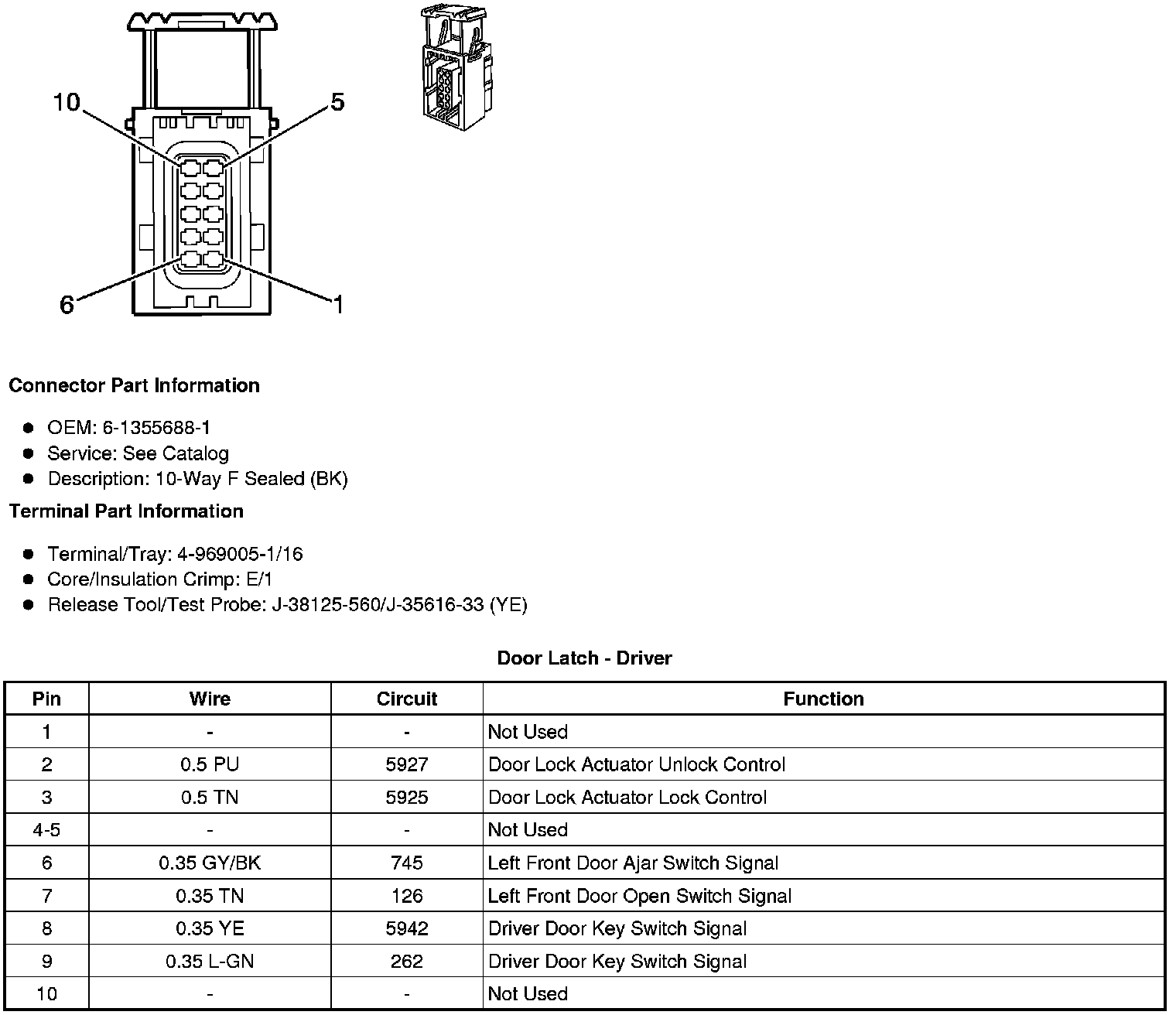

Component Connector End Views
Door Latch - Driver
