Amplifier, Sound System
>>
Audio Amplifier X4 (UQS)
Audio Amplifier X4 (UQS)

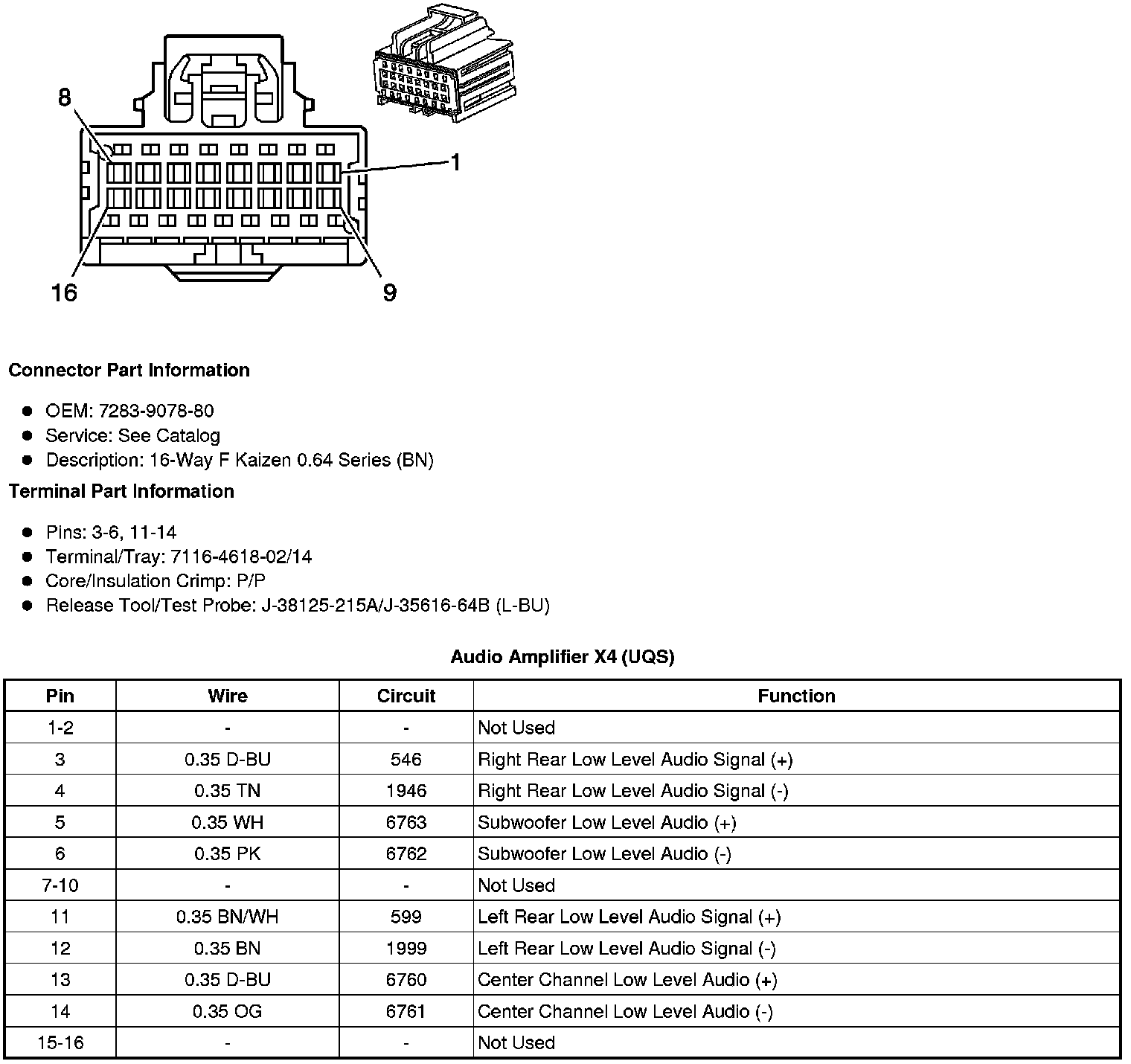

Component Connector End Views
Audio Amplifier X4 (UQS)
