Transfer Case Control Schematics

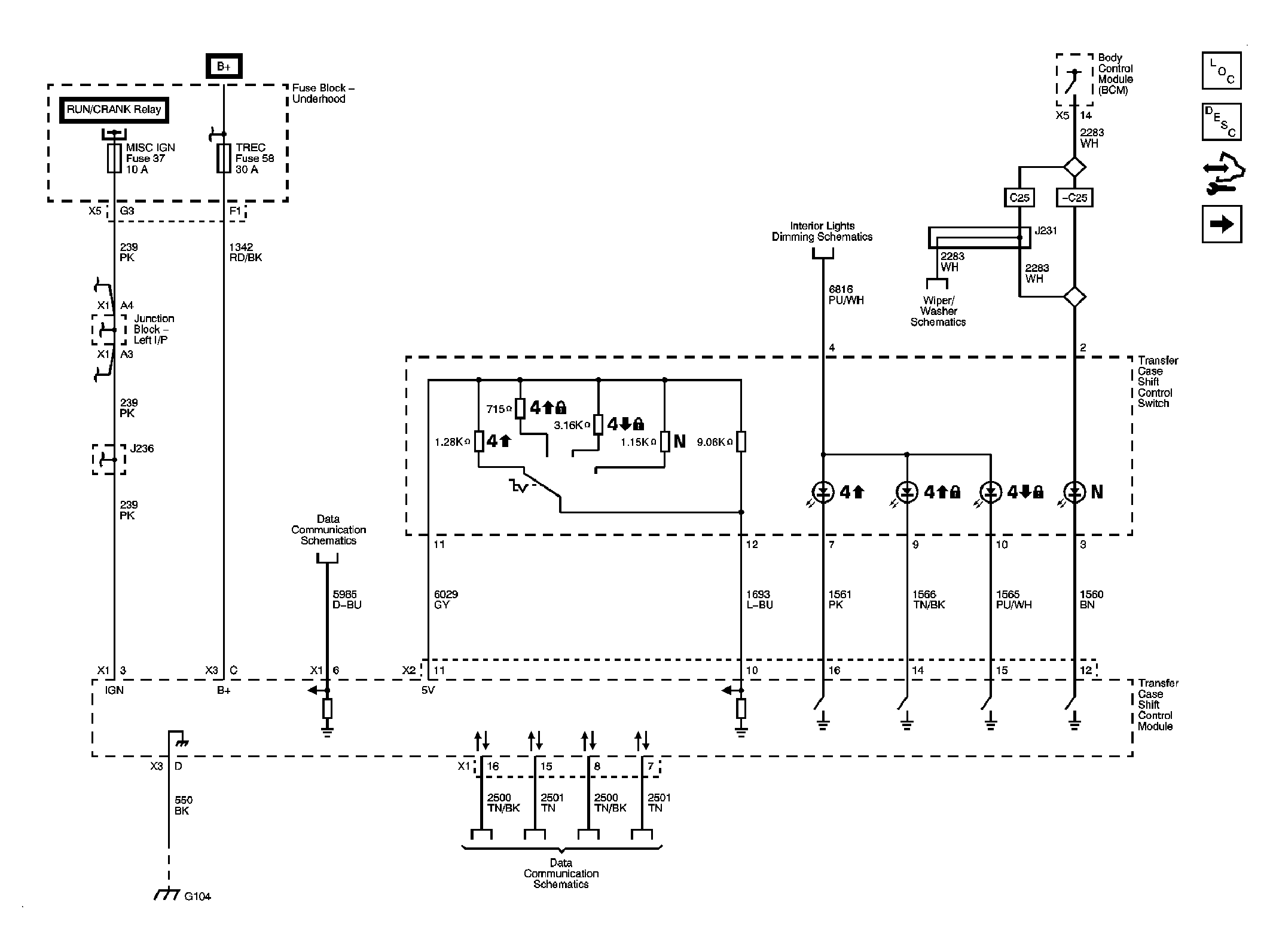

Fig 1: Power Ground & Shift Controls

GM2097273

Courtesy of GENERAL MOTORS CORP.

Fig 2: Transfer Case Controls

GM2097274

Courtesy of GENERAL MOTORS CORP.
