Automatic Transmission Controls Schematics

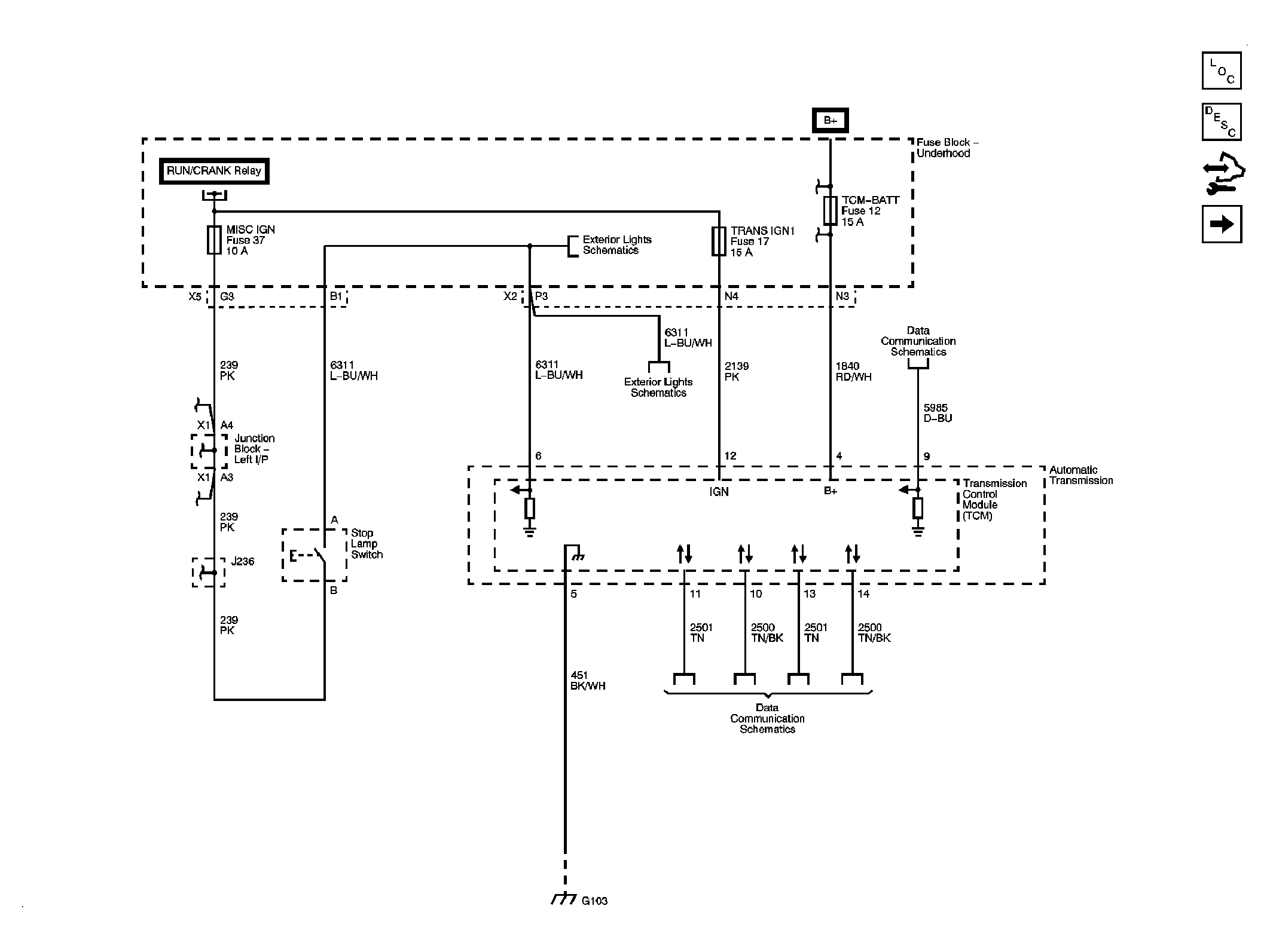

Fig 1: Module Power, Ground, Serial Data & Stop Lamp Signal

Courtesy of GENERAL MOTORS CORP.

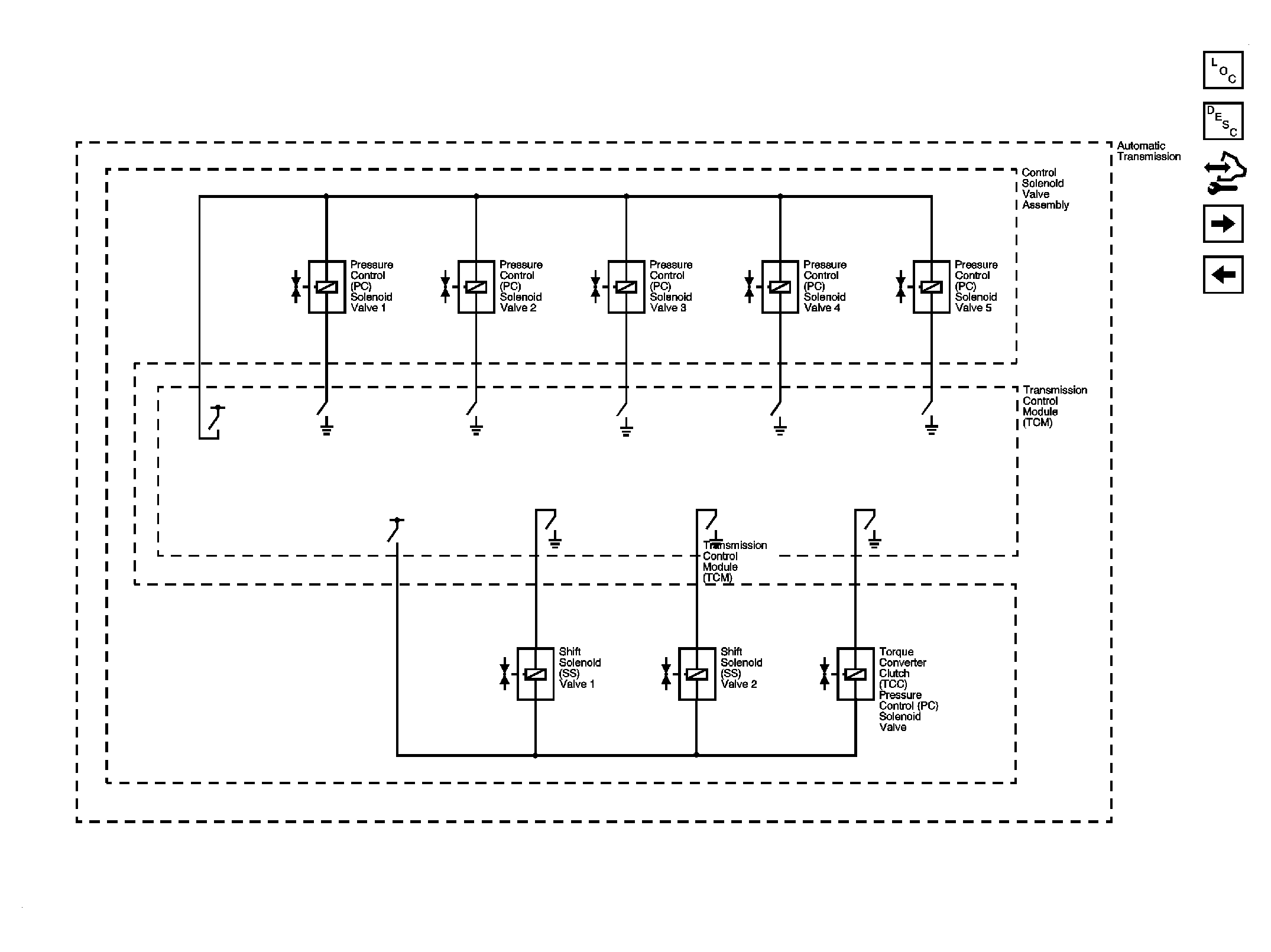

Fig 2: Pressure Controls - 1 of 2 & Shift Controls

Courtesy of GENERAL MOTORS CORP.

Fig 3: Pressure Controls - 2 of 2 & Speed Sensors

Courtesy of GENERAL MOTORS CORP.

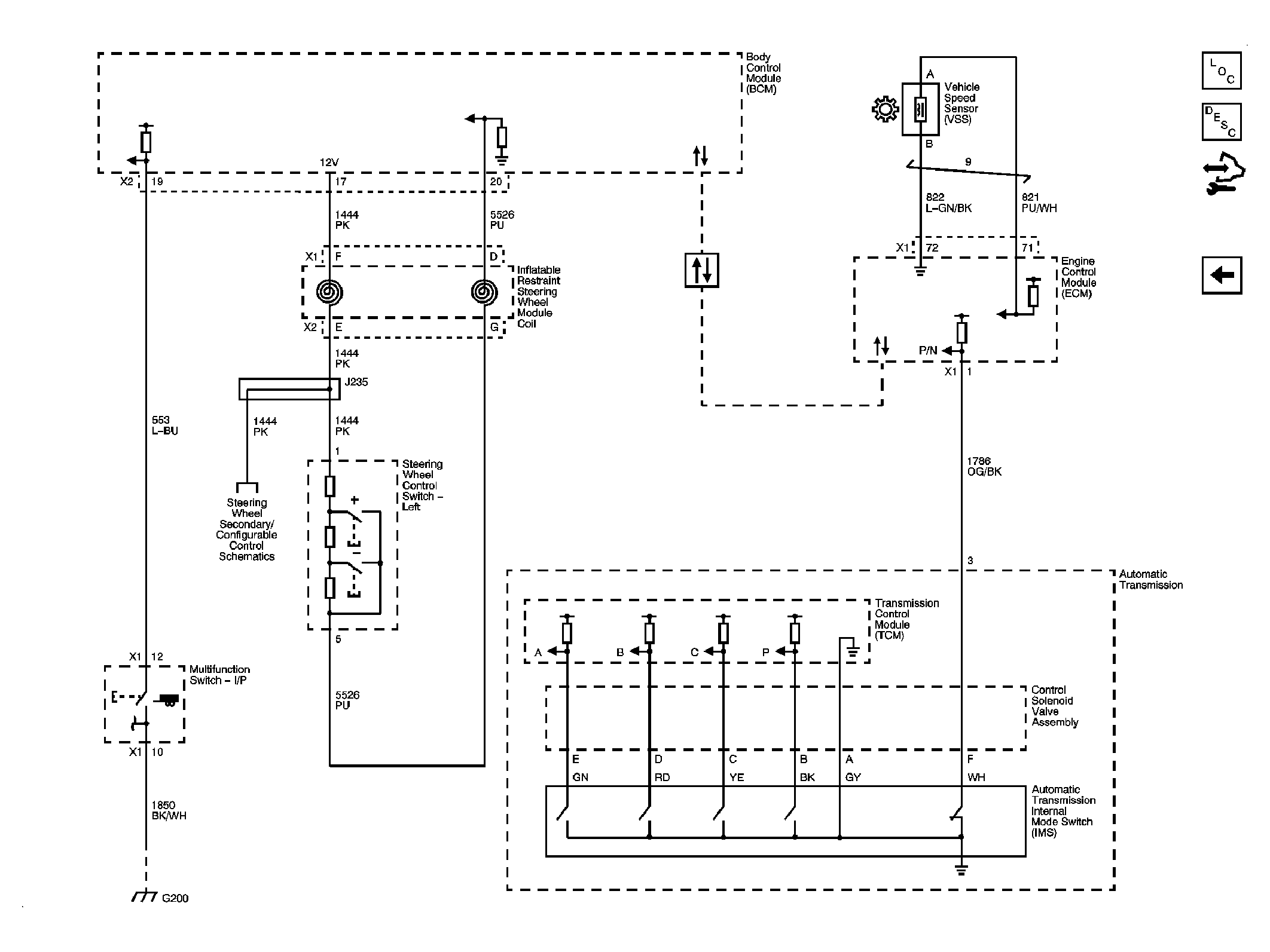

Fig 4: Transmission Range Signals & Driver Shift Request

Courtesy of GENERAL MOTORS CORP.
