SIR Schematics

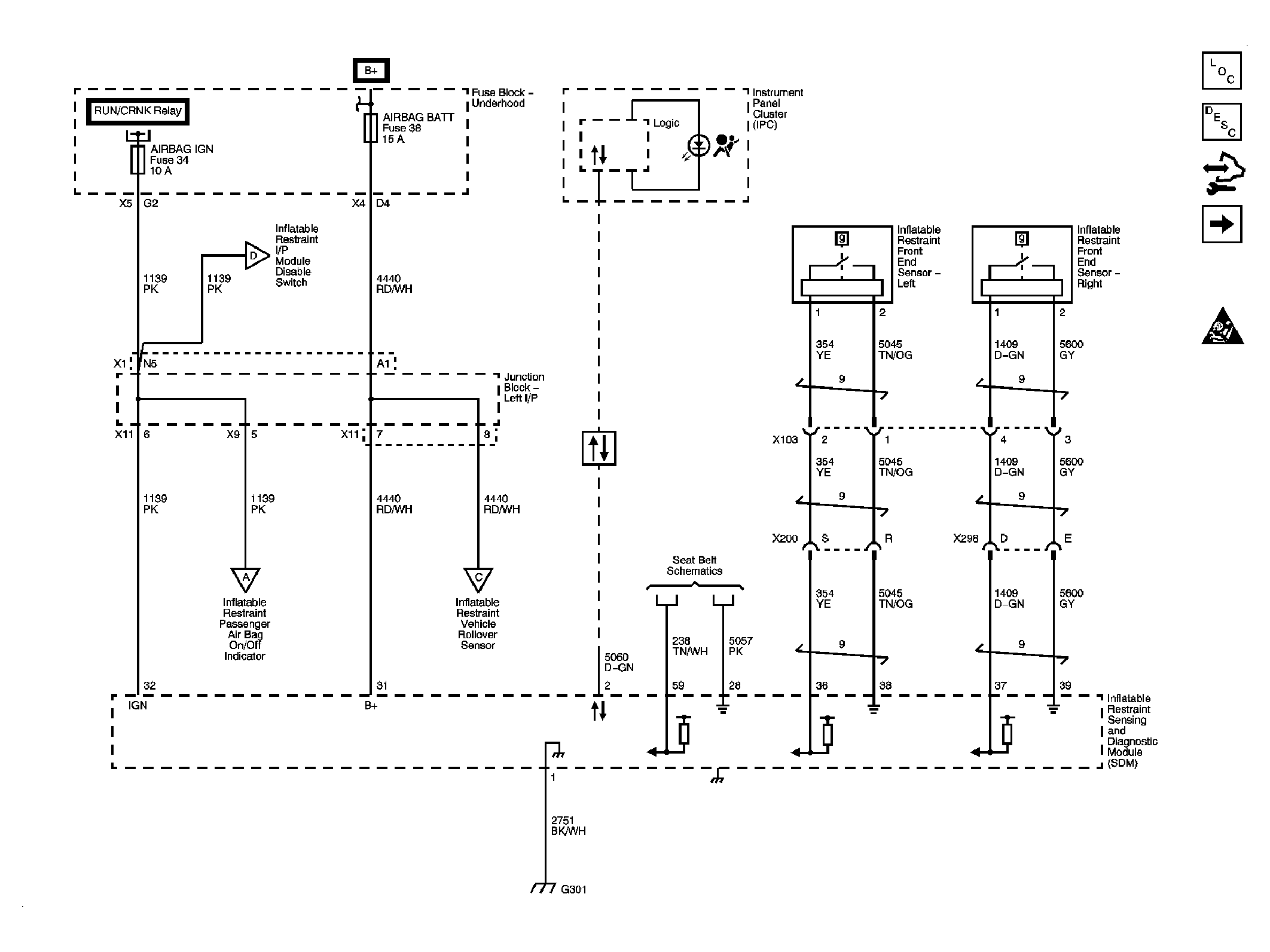

Fig 1: Module Power, Ground, Serial Data & Front Sensors
GM2097255Courtesy of GENERAL MOTORS CORP.
Fig 2: Steering Wheel & I/P Module
GM2097256Courtesy of GENERAL MOTORS CORP.

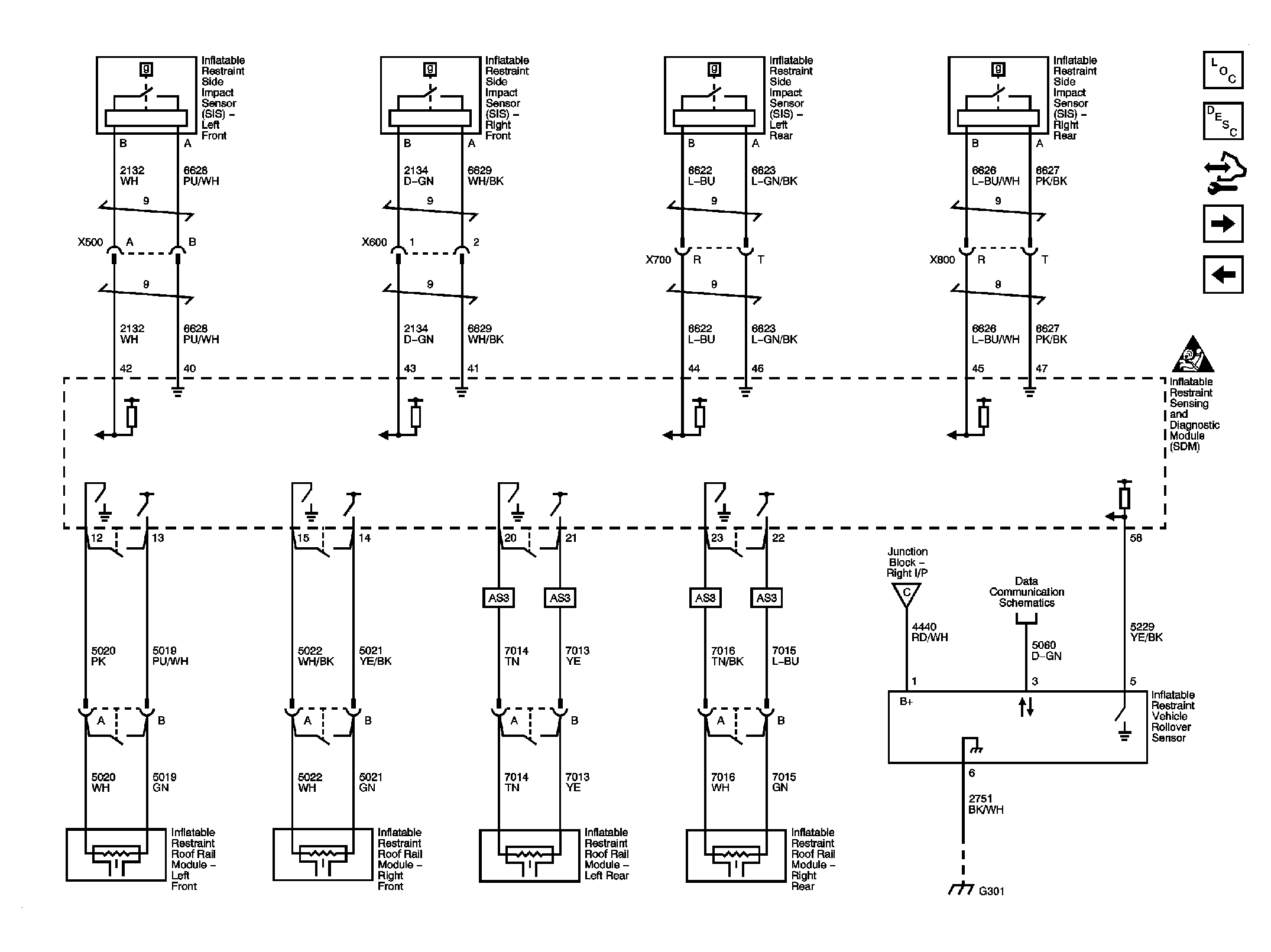

Fig 3: Side Impact Modules & Sensors
GM2097257Courtesy of GENERAL MOTORS CORP.

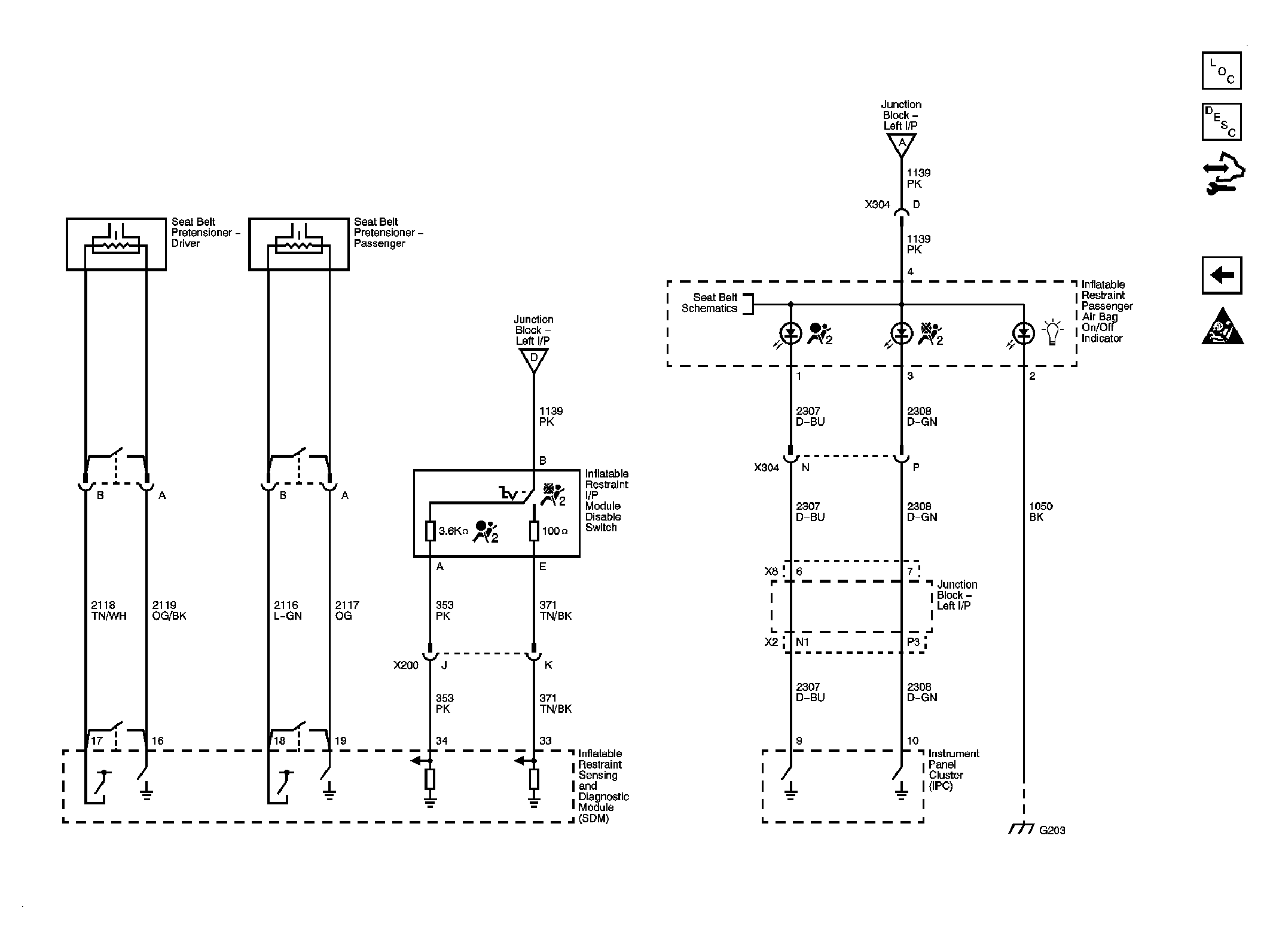

Fig 4: Seat Belt Pretensioners & Air Bag Indicator
GM2097258Courtesy of GENERAL MOTORS CORP.
