HVAC Schematics

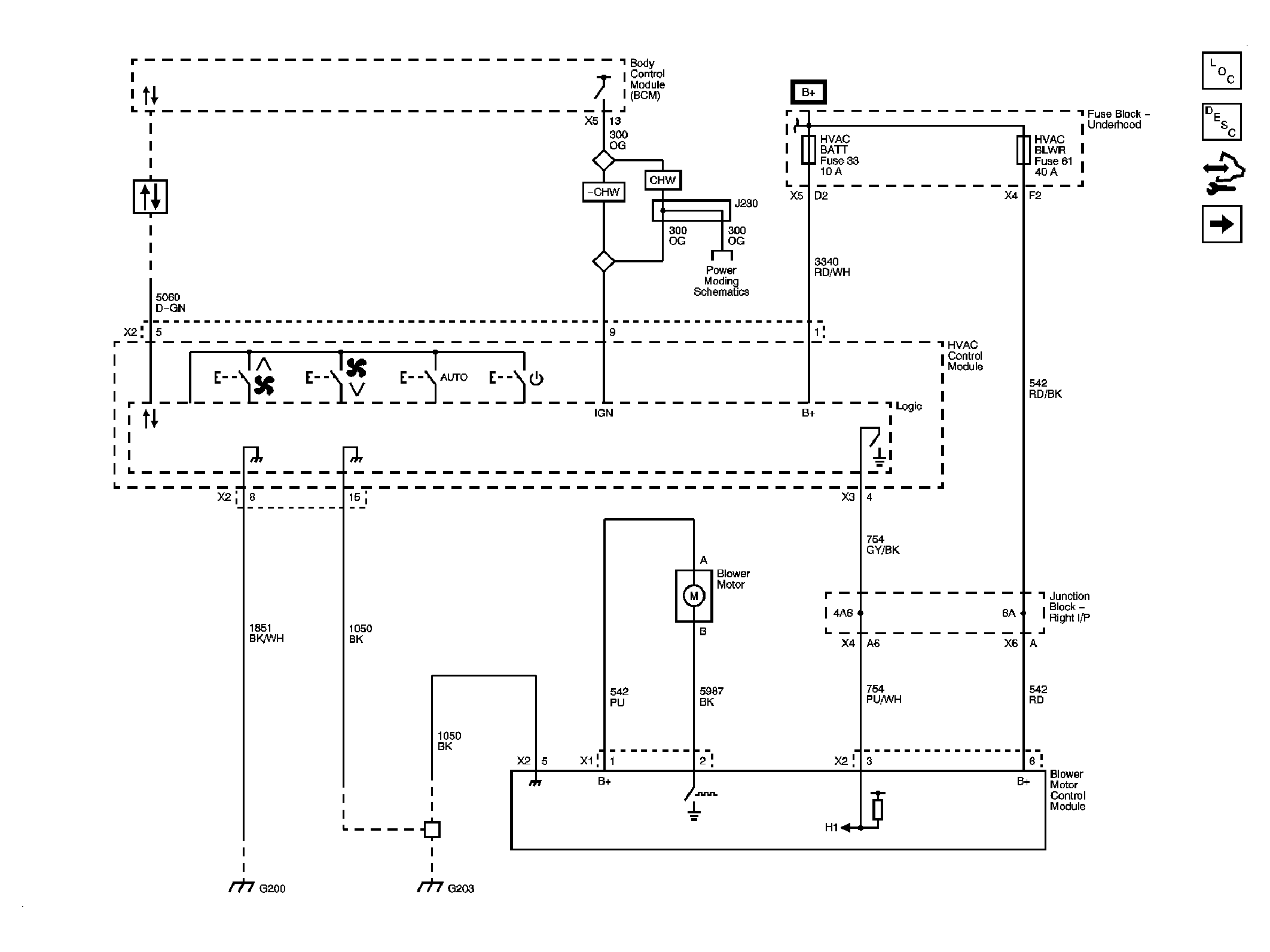

Fig 1: Module Power, Ground, Serial Data & Blower Controls

Courtesy of GENERAL MOTORS CORP.

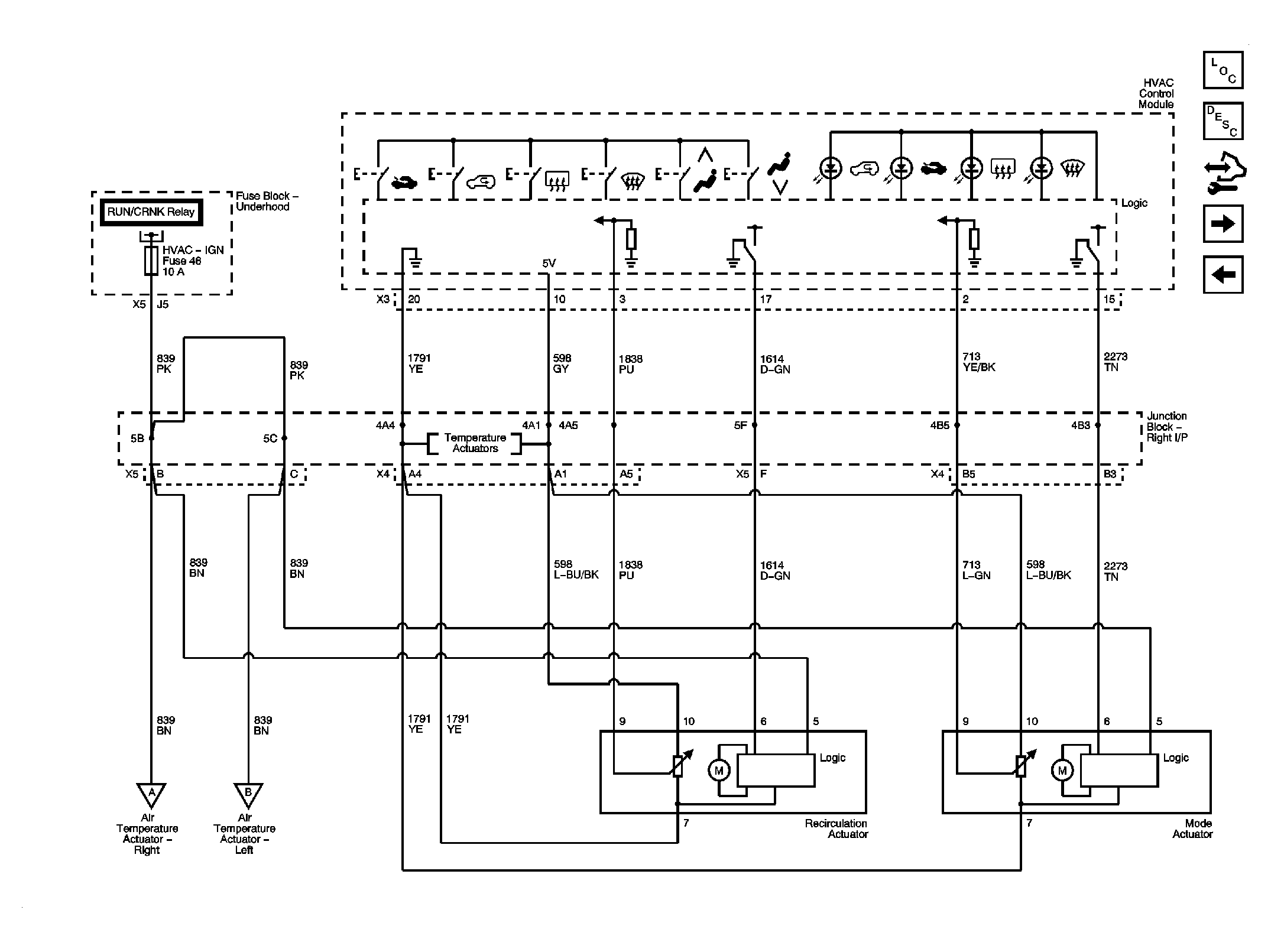

Fig 2: Mode Controls

Courtesy of GENERAL MOTORS CORP.

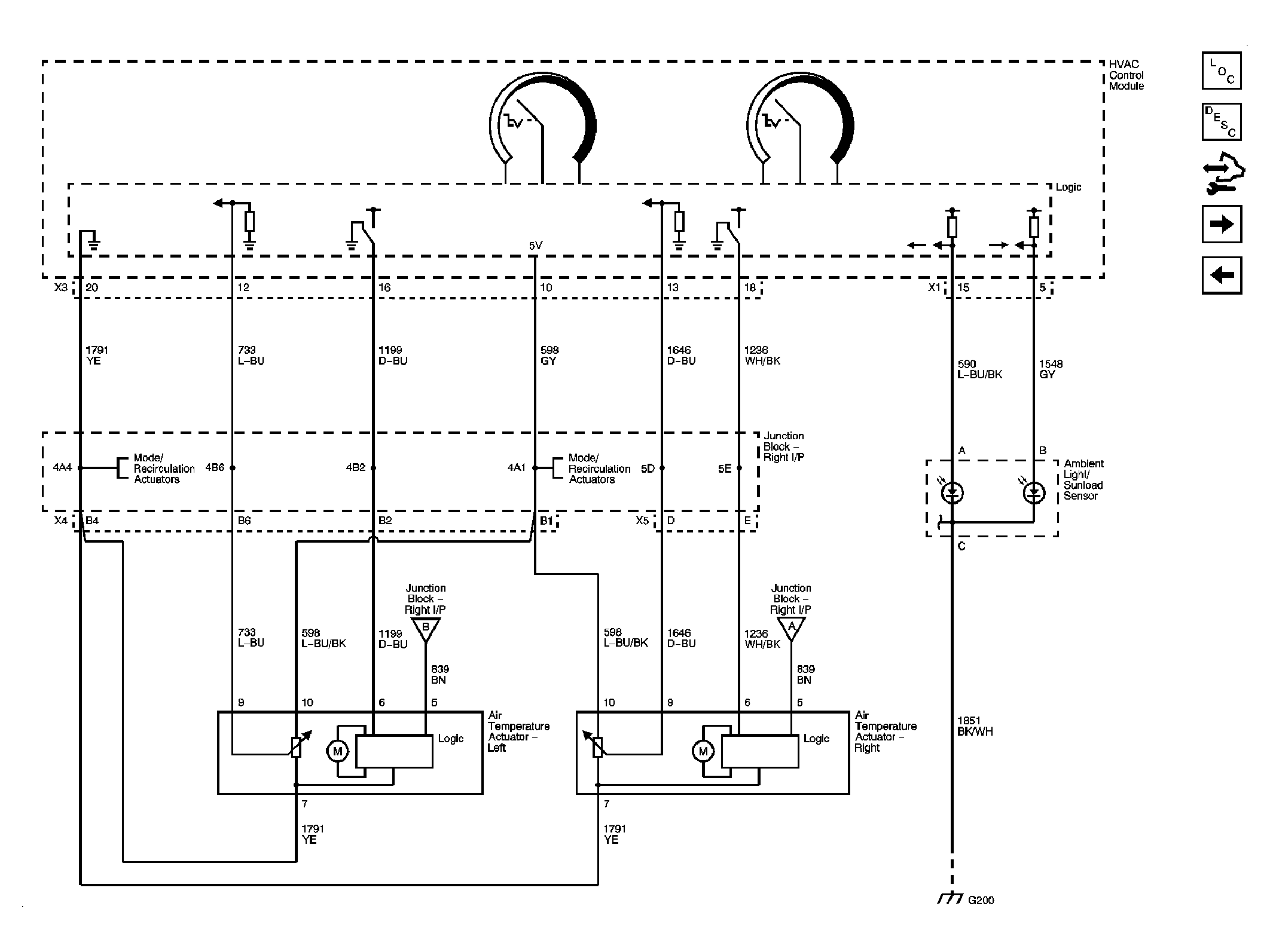

Fig 3: Temperature Controls

Courtesy of GENERAL MOTORS CORP.

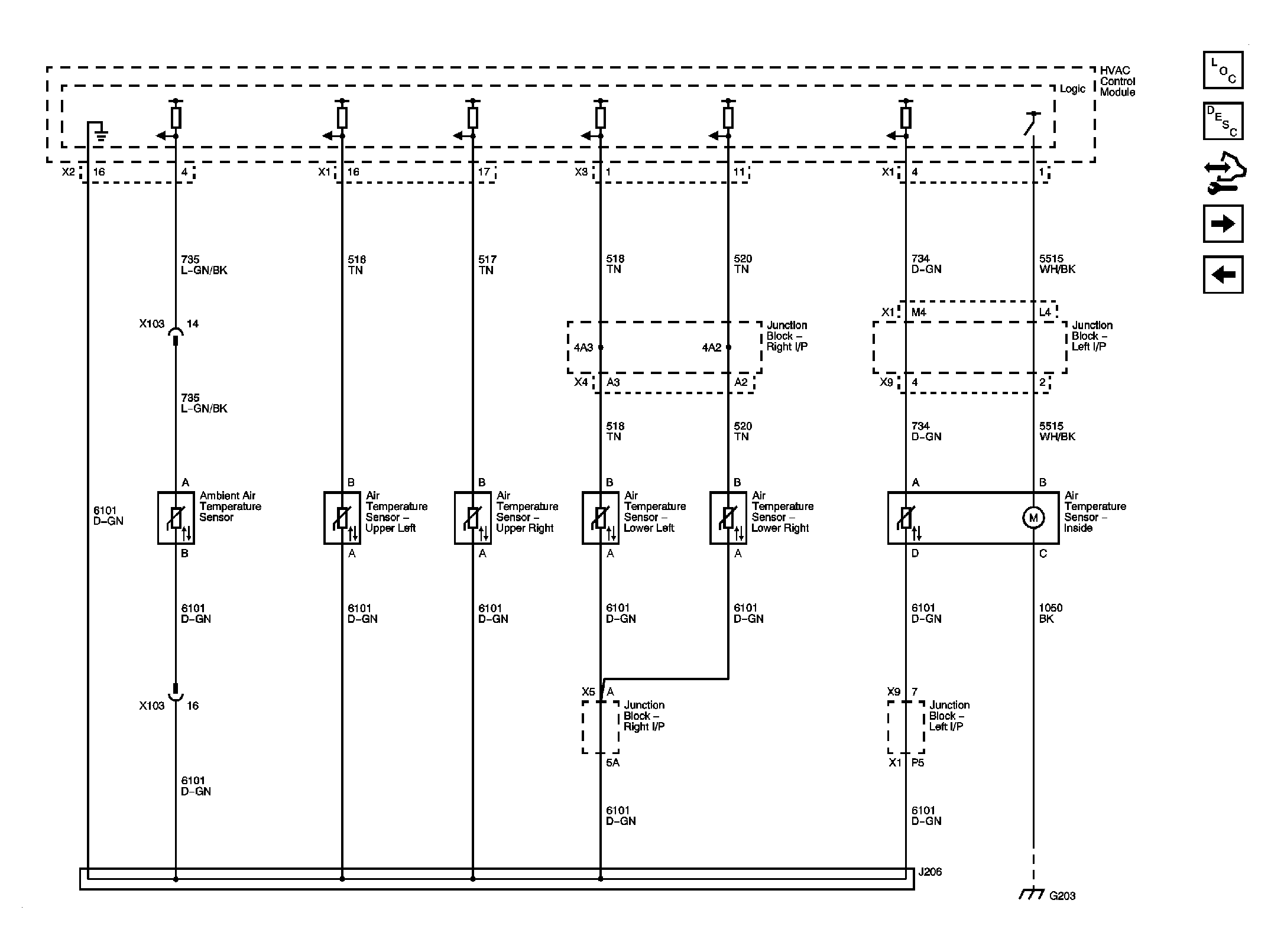

Fig 4: Temperature Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 5: A/C Compressor Controls

Courtesy of GENERAL MOTORS CORP.

Fig 6: Auxiliary Blower Controls

Courtesy of GENERAL MOTORS CORP.

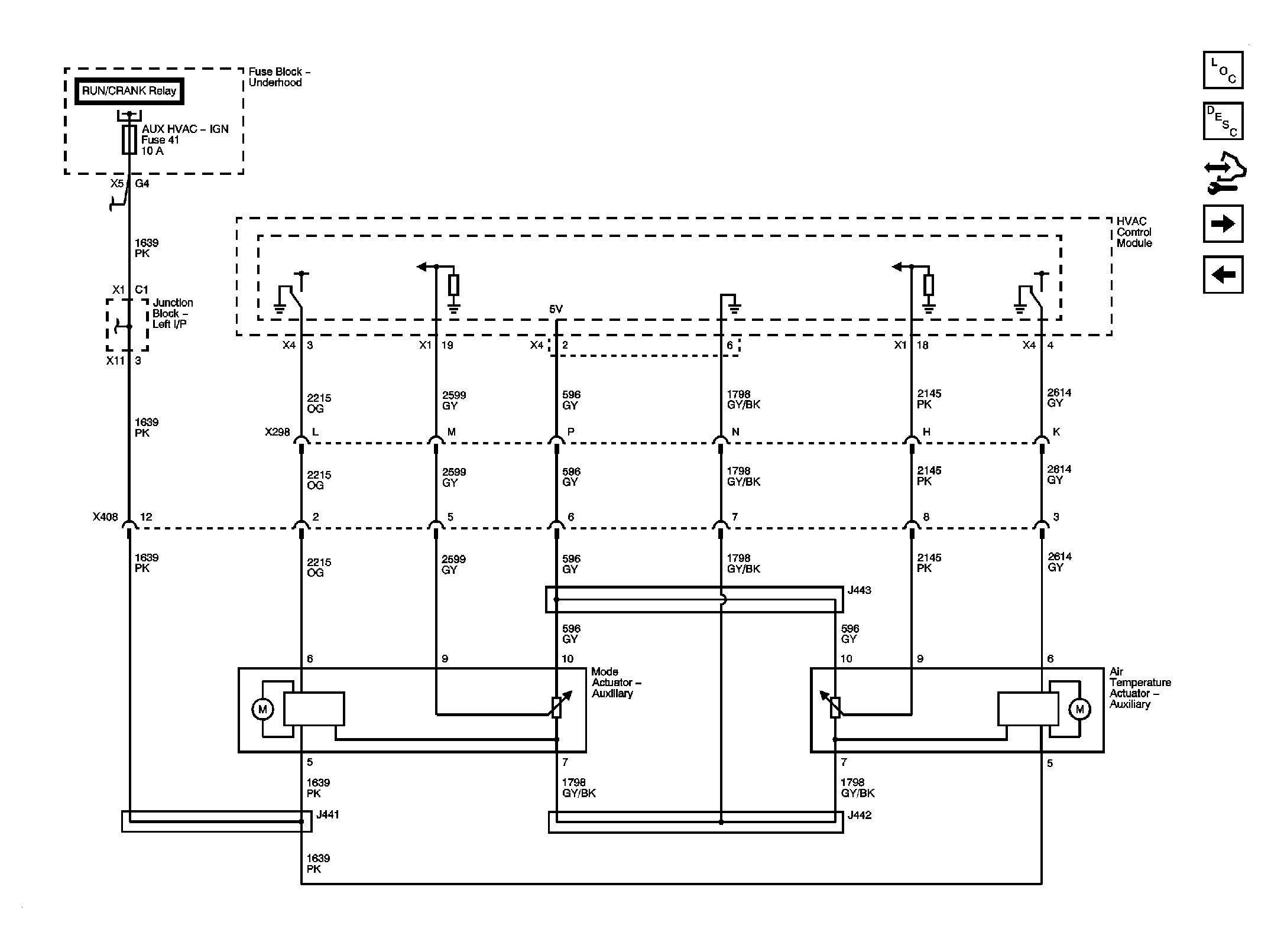

Fig 7: Auxiliary Mode & Temperature Controls

Courtesy of GENERAL MOTORS CORP.
