Harness Routing Views

Fig 1: Identifying Forward Lamp
GM1968300Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G106
2 X107 (CHW)
3 X103
4 J108
5 J100
6 G100
7 G101
8 J101
Fig 2: Identifying Engine - Front
GM1968312Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X100
2 X120
3 G102
4 G103
Fig 3: Identifying Engine - Left Rear
GM1968303Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J102
2 J130
3 J103
4 X158
5 G104
6 X148
Fig 4: Identifying Engine Harness - Middle Underbody
GM1968308Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Automatic Transmission
2 X315

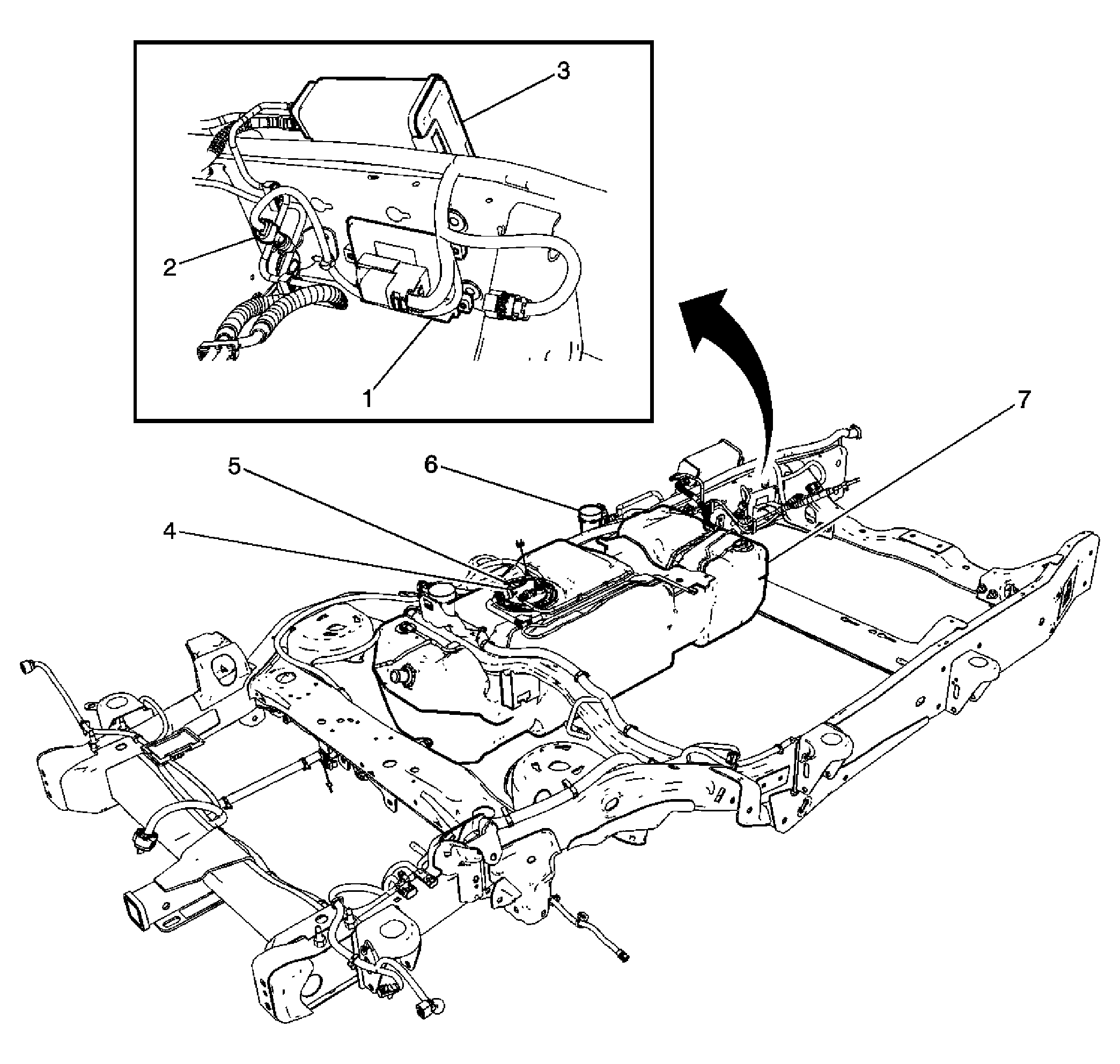

Fig 5: Identifying Fuel System Components
GM2059062Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Pump Flow Control Module
2 Fuel Pressure Sensor
3 Evaporative Emission (EVAP) Canister
4 Fuel Tank Pressure (FTP) Sensor
5 Fuel Pump and Sender Assembly
6 Evaporative Emission (EVAP) Canister Vent Solenoid Valve
7 Fuel Tank
Fig 6: Identifying Instrument Panel Harness - Engine Compartment
GM1968322Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Harness
2 X110
3 Fuse Block - Stud 2 Ring Terminal
4 X107 (CHW)
5 X103
6 X104
7 X100
8 X111
Fig 7: Identifying Chassis Harness - Front Engine Compartment
GM1968407Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X104
2 Air Suspension Relay (ZM6)
3 G300
4 Trailer Power
5 X111
Fig 8: Identifying Wiper Extension Harness - Rear Engine Compartment
GM1968326Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Hood Ajar Switch Connector
2 X110
Fig 9: Identifying Instrument Panel Harness - Left Passenger Compartment
GM1968329Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 JX205
2 X205
3 X201
4 X200
5 G200
6 X208
7 JX206
Fig 10: Identifying Instrument Panel Harness - Right Passenger Compartment
GM1968332Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X290
2 X235 (COAX)
3 X298
4 X296
5 X295
6 X350
Fig 11: Identifying Instrument Panel Harness - Splices
GM1968335Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J215
2 J231
3 J203
4 J217
5 J278
6 J225
7 J230
8 J220
9 J221
10 J222
11 J205
12 J204
13 J234
14 J214
15 J232
16 J233
Fig 12: Identifying Steering Column
GM1968402Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X201
2 X207
Fig 13: Identifying Floor Console
GM1968404Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X320
2 J351
3 J352
4 X334
5 X350
Fig 14: Identifying Body Harness - Left Passenger Compartment
GM1968341Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X500
2 JX207
3 X200
4 X207
5 X208
6 X320
7 X303
8 G302
9 X700
Fig 15: Identifying Body Harness - Right Passenger Compartment
GM1968367Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X296
2 X290
3 X298
4 X295
5 X600
6 X800
7 G306
8 X305
9 G301
Fig 16: Identifying Rear Doors
GM1968501Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Left Rear Door
2 X700
3 X800
4 Right Rear Door
Fig 17: Identifying Front Doors
GM1968499Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Driver Door
2 X500
3 Passenger Door
4 J600
5 X600
Fig 18: Identifying Roof Marker Harness
GM1968442Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J303
2 J345
3 X235 (COAX)
Fig 19: Identifying Headliner/Rear Dome Lamp Harness
GM1968436Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headliner
2 X304
3 Sunshade - Left Connector
4 J301
5 J300
6 X204
Fig 20: Identifying Midgate Harness (SUT)
GM1968453Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J336
2 J338
3 J339
4 X300
5 J334
6 J337
7 J335
Fig 21: Identifying Body Harness - Left Rear Cargo Area
GM1968378Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X900 (SUV)
2 X406 (SUV)
3 X308
Fig 22: Identifying Body Harness - Right Rear Cargo Area
GM1968374Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X307
2 X408 (SUV)
3 G410 (SUV)
Fig 23: Identifying Body Harness - Splices
GM1968398Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J410 (SUV)
2 Body Harness (SUV)
3 J411
4 J333
5 J332
6 Body Harness (SUT)
7 J320 (SUT)
8 J411 (SUT)
9 J340 (SUT)
10 J341
11 J342
12 J310
Fig 24: Identifying Cargo Box Harness (SUT)
GM1968429Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Midgate
2 X402
3 X400
Fig 25: Identifying Body Harness - Left Rear Passenger Compartment (SUT)
GM1968384Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Midgate
2 X300
3 G403
4 X308
Fig 26: Identifying Chassis Harness - Rear Frame
GM1968411Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X411
2 G401
3 X450 (ZM6)
4 X451 (ZM6)
5 G402
6 X315
7 Data Link Resistor
8 X402(SUT)
9 X400 (SUT)
10 G304
11 X401
12 X412
13 G405
14 Rearview Camera (UVC)
Fig 27: Identifying Chassis Harness - Splices
GM1968413Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J355
2 J110
3 J356
4 J406
5 J407
6 J405
7 J403
8 J404
9 J360
10 J358
Fig 28: Identifying License Lamp Jumper Harness
GM1968495Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X401
2 Spare Tire Carrier
