Instrument Cluster Schematics

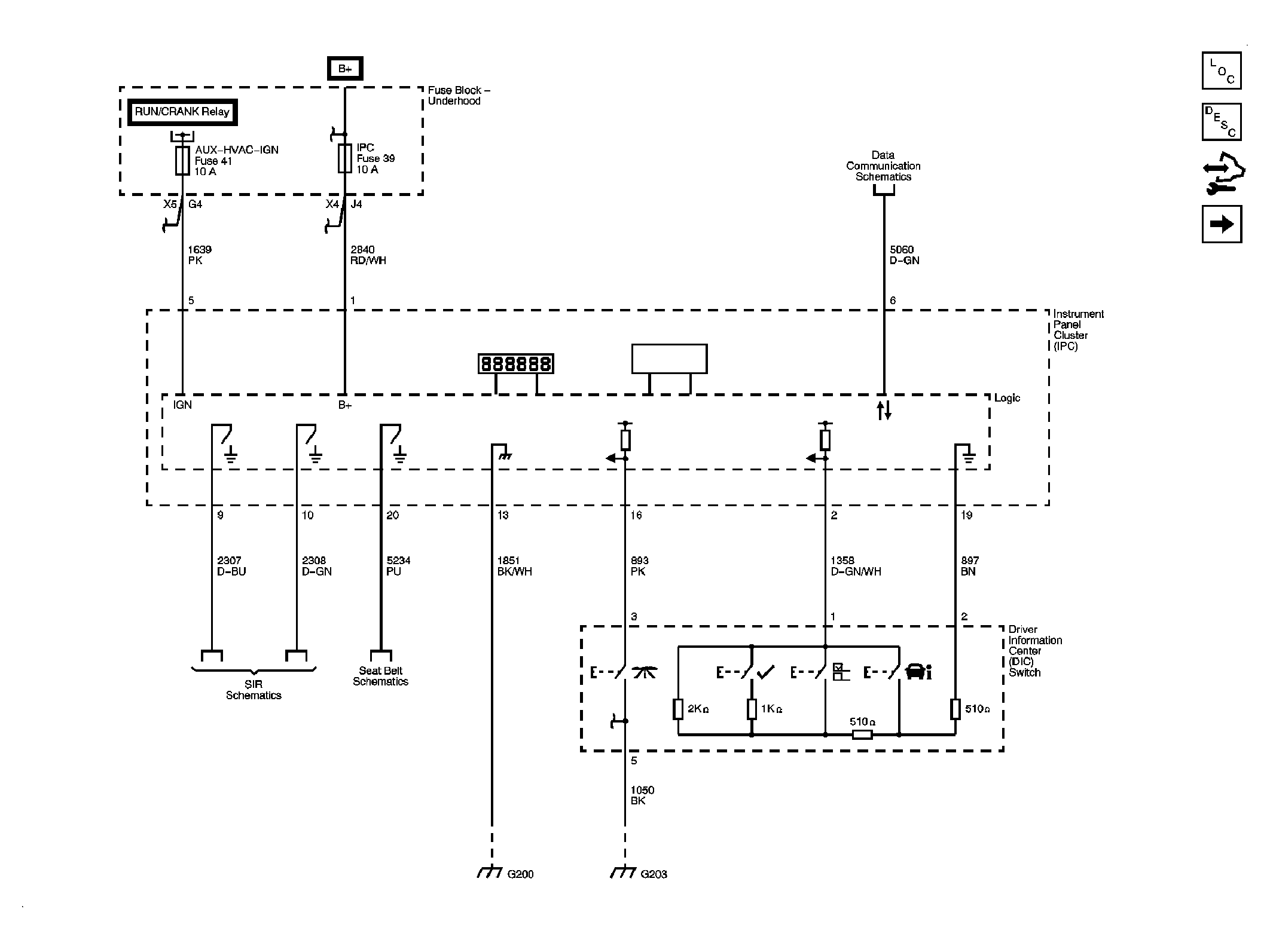

Fig 1: Power, Ground & Driver Information Switch
Courtesy of GENERAL MOTORS CORP.

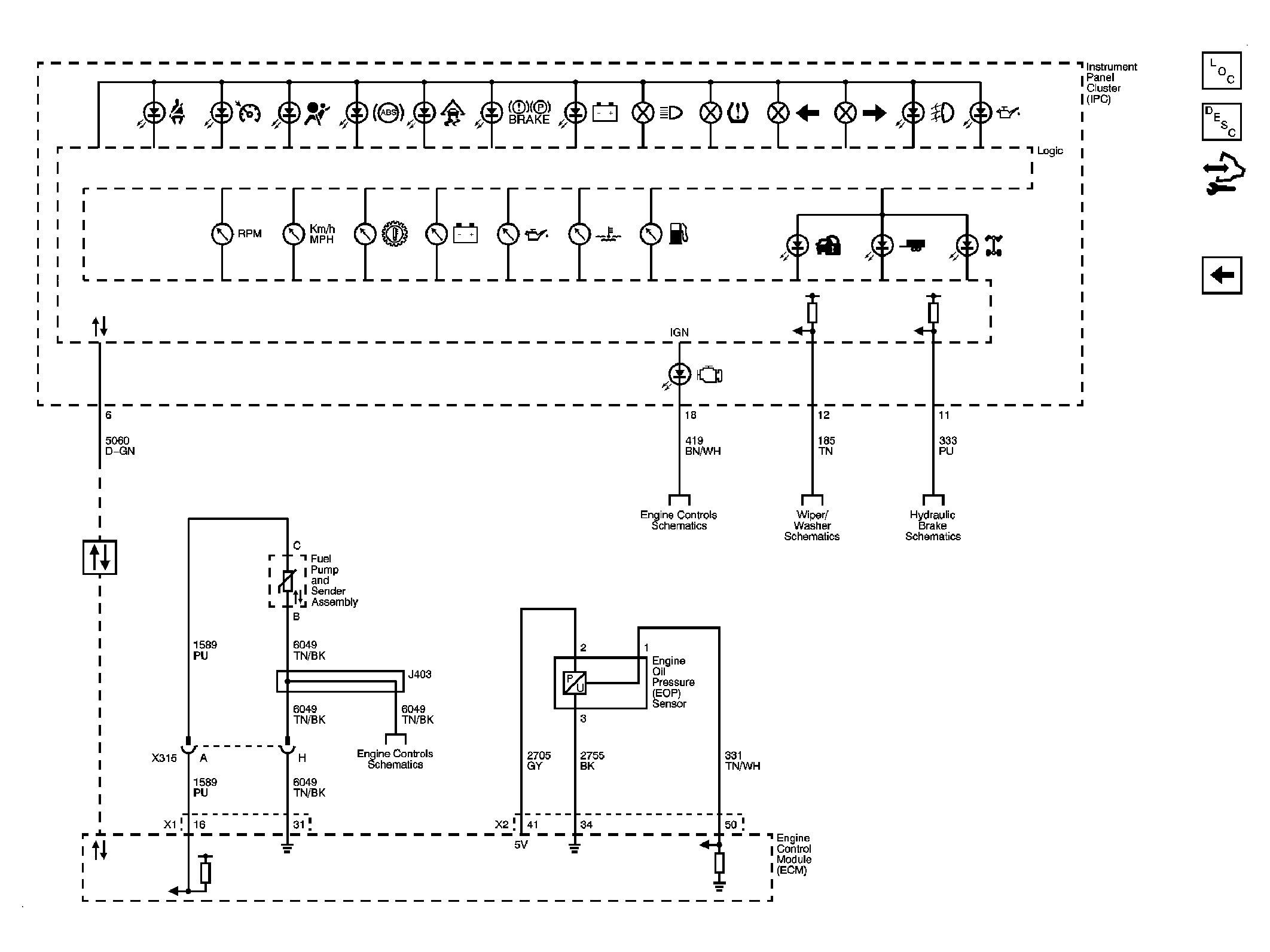

Fig 2: Indicators
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
