H2 4D Utility Wagon
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Antilock Brake System
>>
Schematic and Routing Diagrams
>>
Antilock Brake System Schematics
Antilock Brake System Schematics

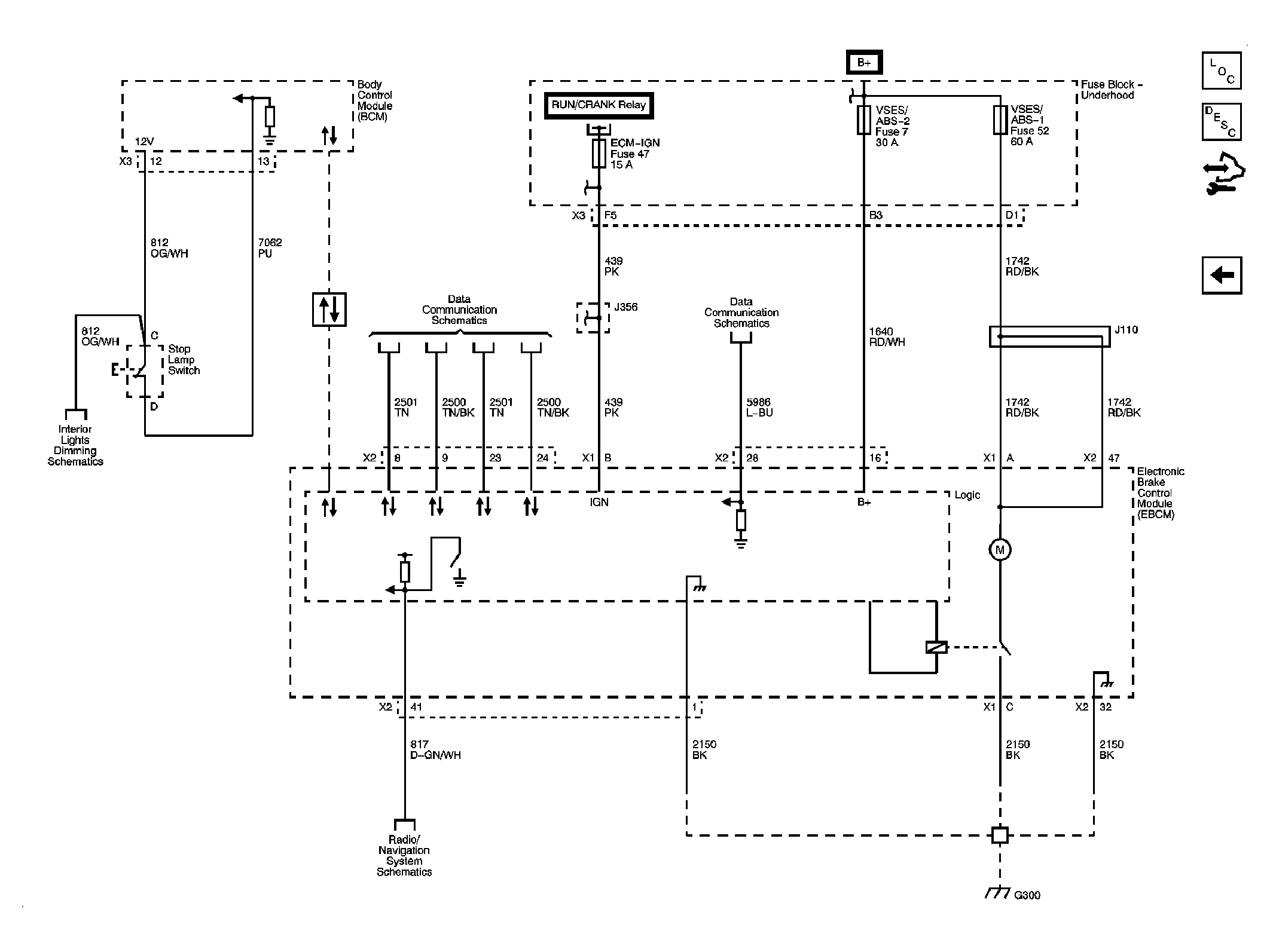

Fig 1: Module Power, Ground & Serial Data
Courtesy of GENERAL MOTORS CORP.

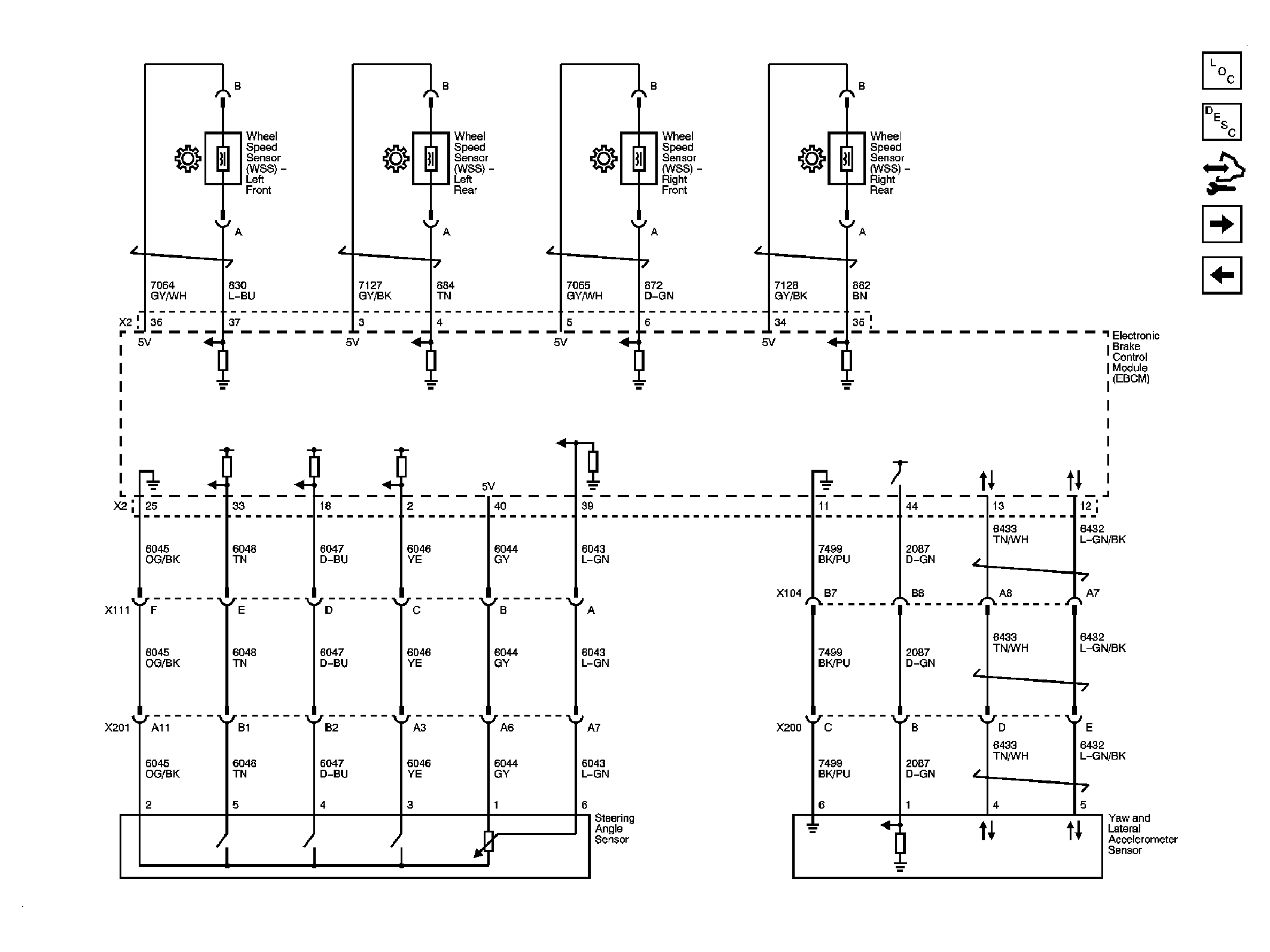

Fig 2: Sensors
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
