Heated/Cooled Seat Schematics

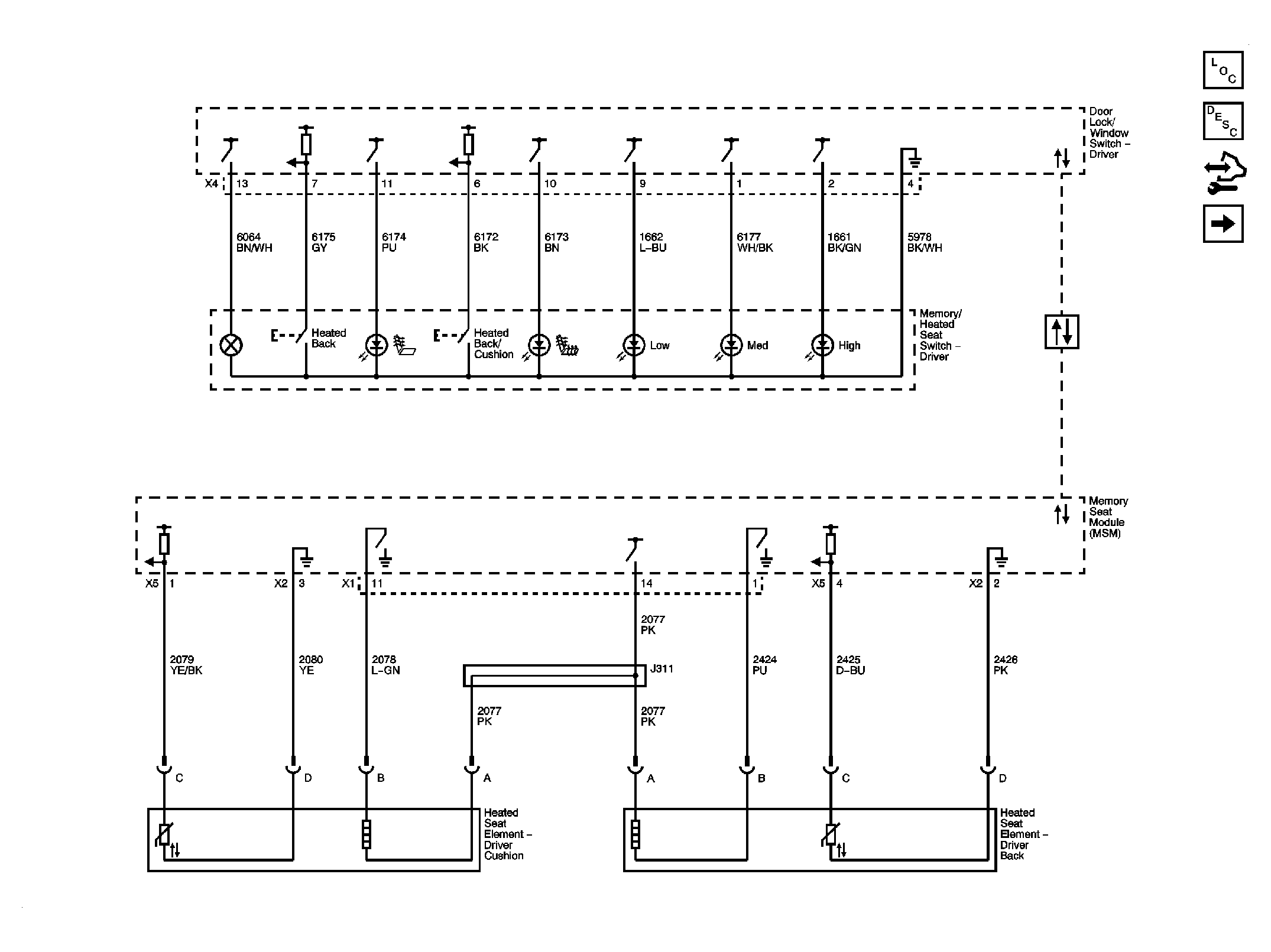

Fig 1: Heated Seat - Driver
GM2097264Courtesy of GENERAL MOTORS CORP.

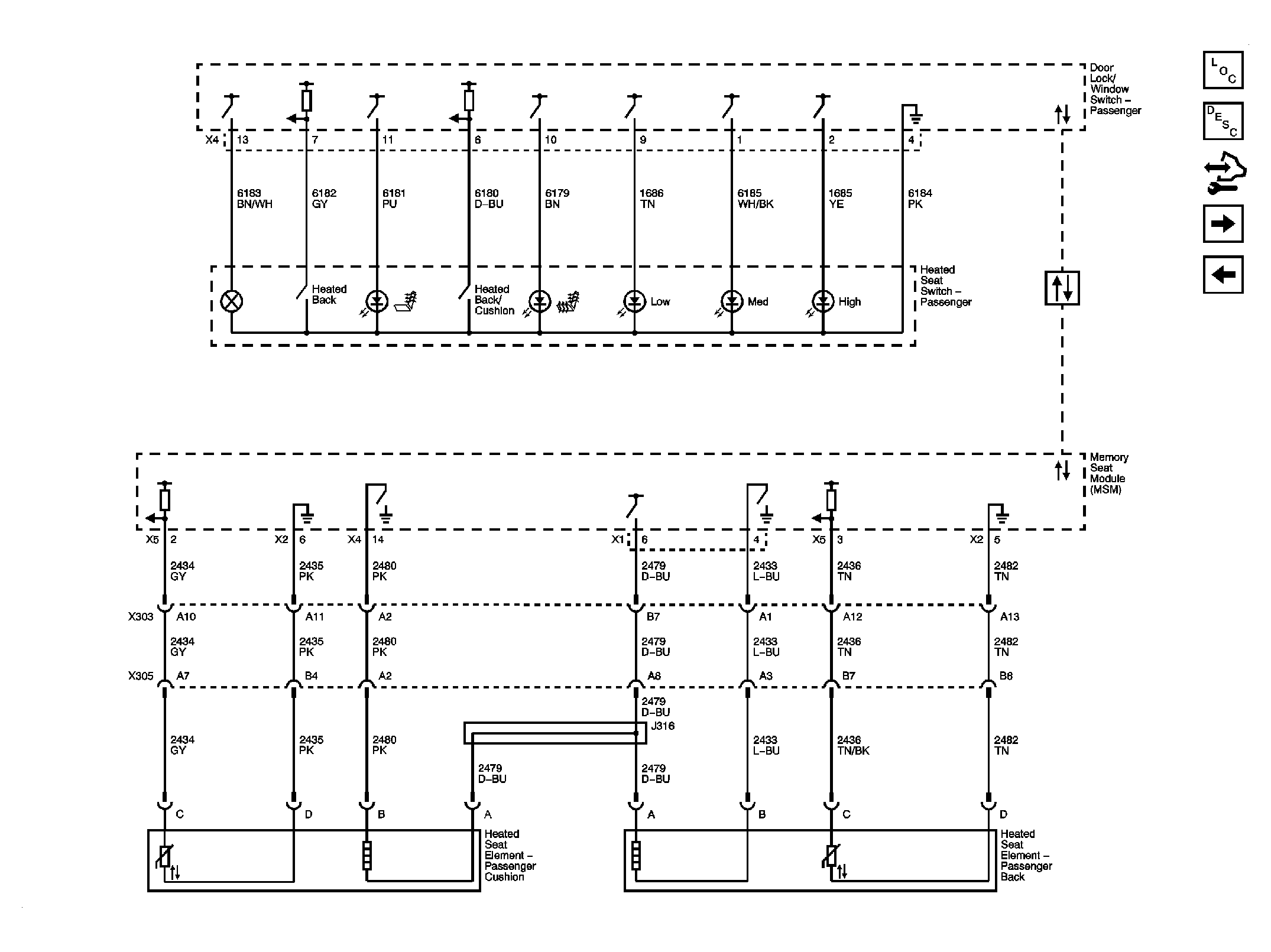

Fig 2: Heated Seat - Passenger
GM2097265Courtesy of GENERAL MOTORS CORP.

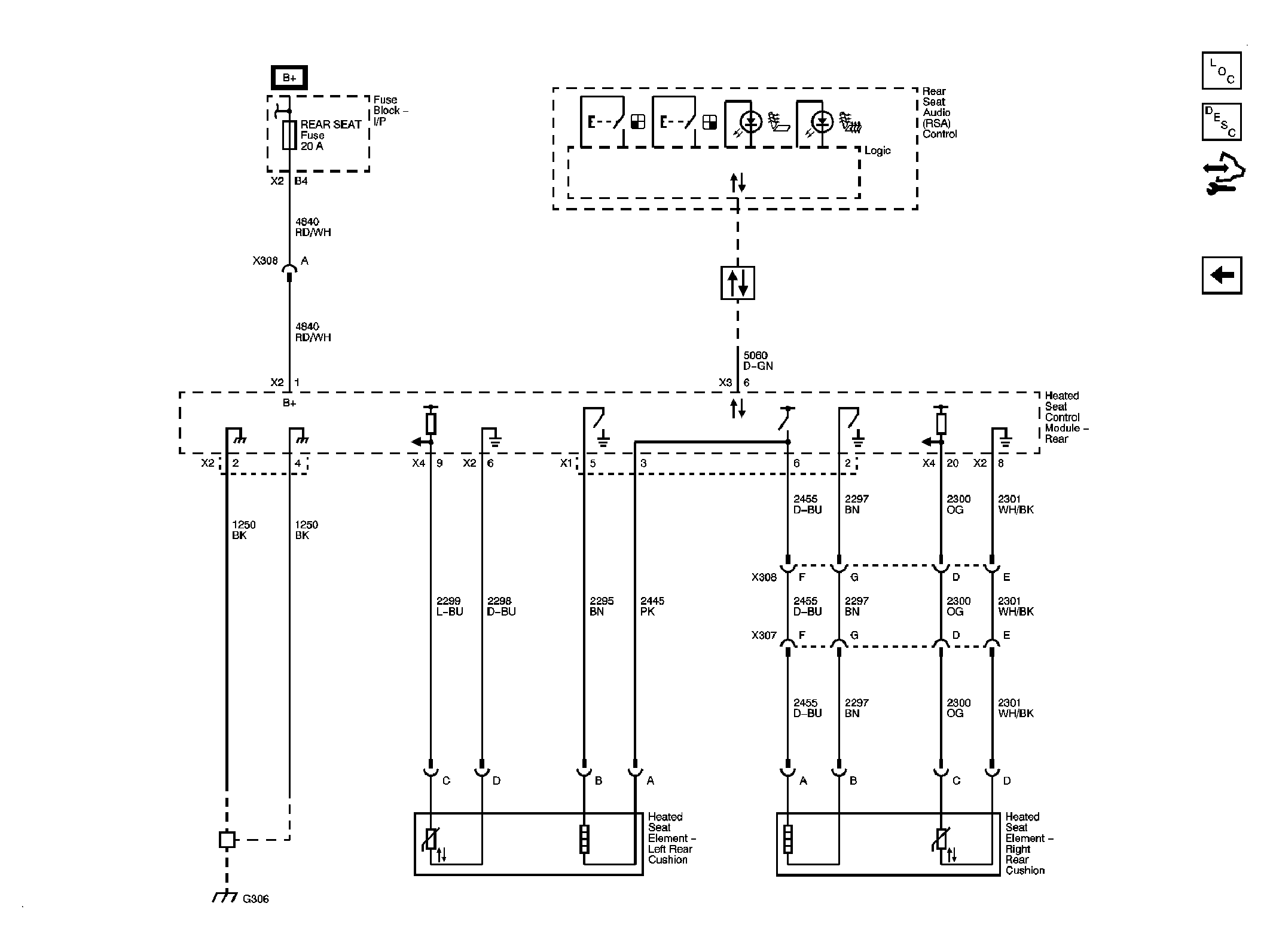

Fig 3: Heated Seat - Rear
GM2097266Courtesy of GENERAL MOTORS CORP.
