Rear Seat Heater Control Module Replacement (SUT)

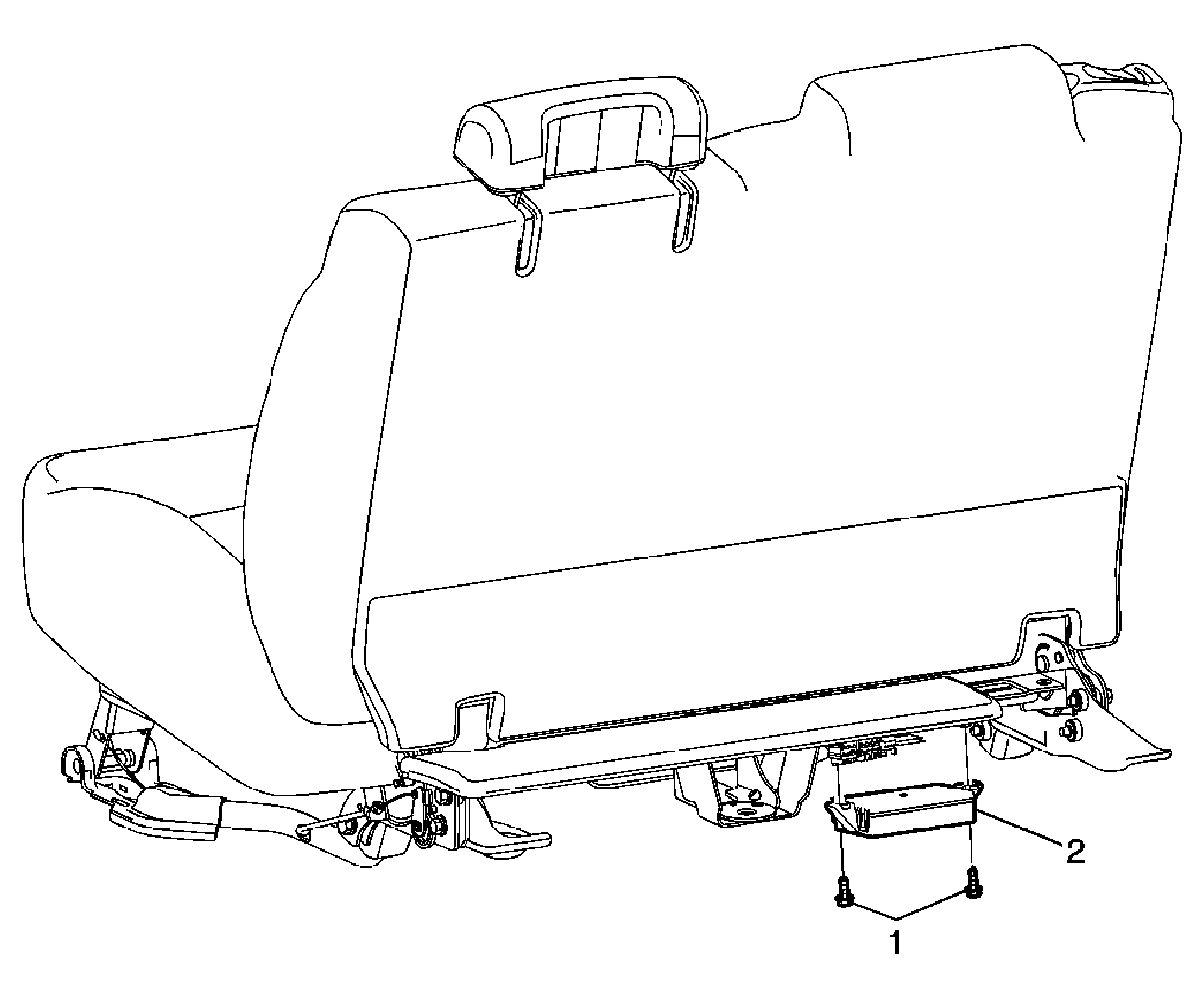

Fig 1: Identifying Rear Seat Heater Control Module (SUT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Seat Riser Finish Cover Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  3 N.m (25 lb in)
2	Rear Seat Heater Module Procedure:  Disconnect the electrical connector.
