Rear Folding Seat Back Cover Replacement (SUV)

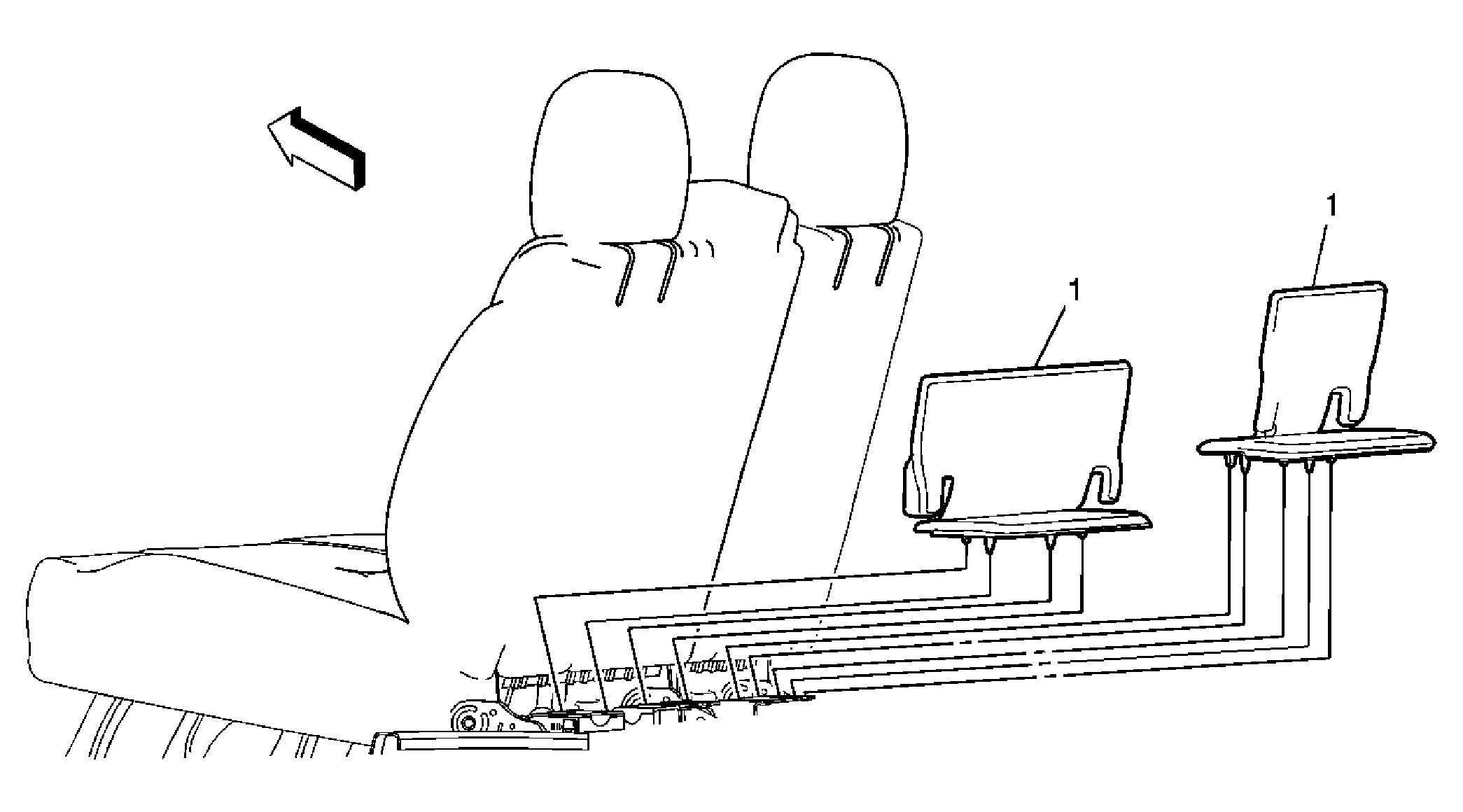

Fig 1: Identifying Rear Folding Seat Back Cover (SUV)
GM2033157Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Folding Seat Back Cover

Procedure

  1. Pull gently on the filler panel to disengage from the seat.
  2. Transfer any parts as needed.
