Driver Seat Schematics

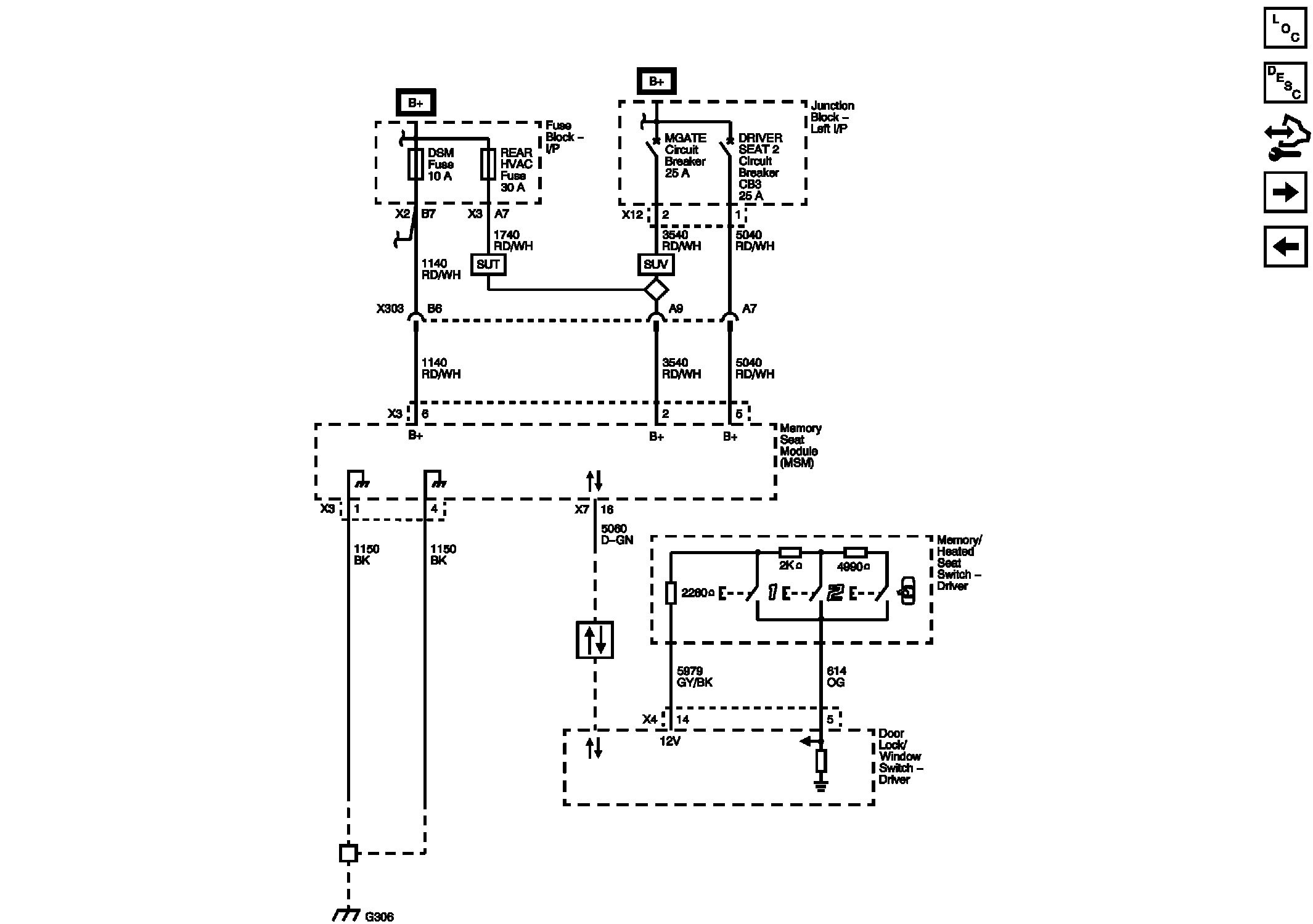

Fig 1: Module Power, Ground, Serial Data Memory Switch
GM2097260Courtesy of GENERAL MOTORS CORP.

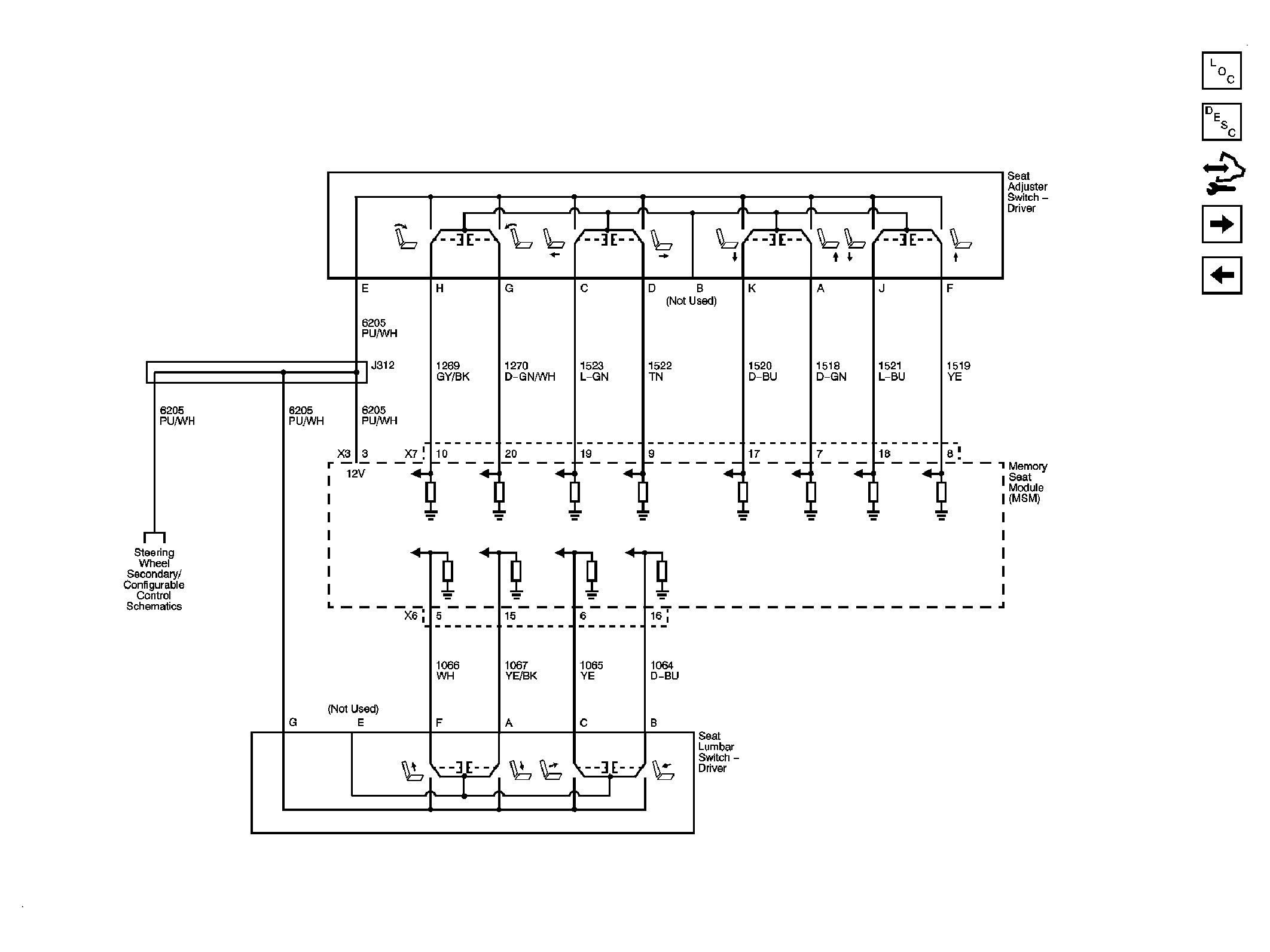

Fig 2: Seat Adjuster Switches
GM2097261Courtesy of GENERAL MOTORS CORP.

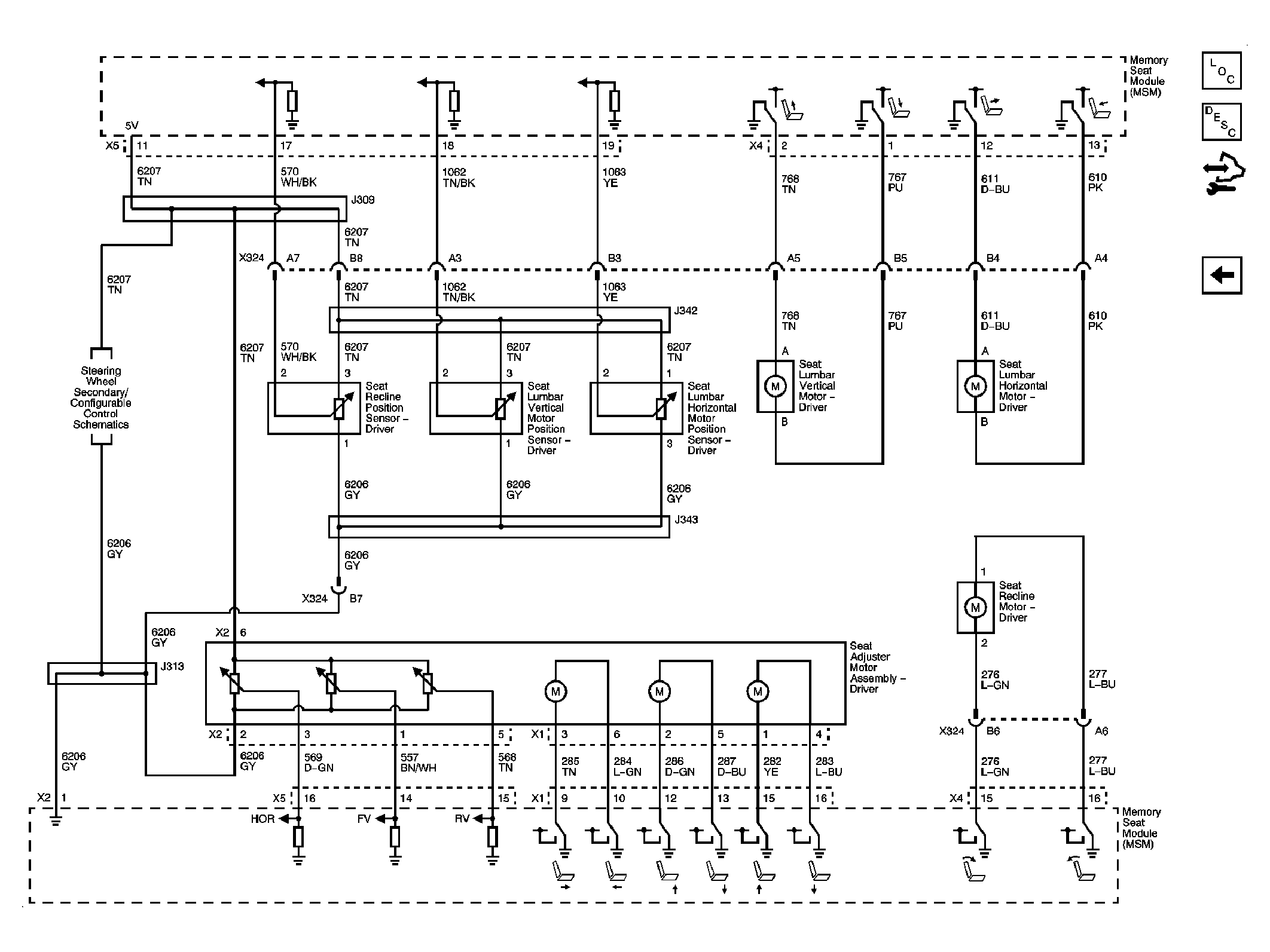

Fig 3: Motors & Position Sensors
GM2097262Courtesy of GENERAL MOTORS CORP.
