Rear Door Replacement

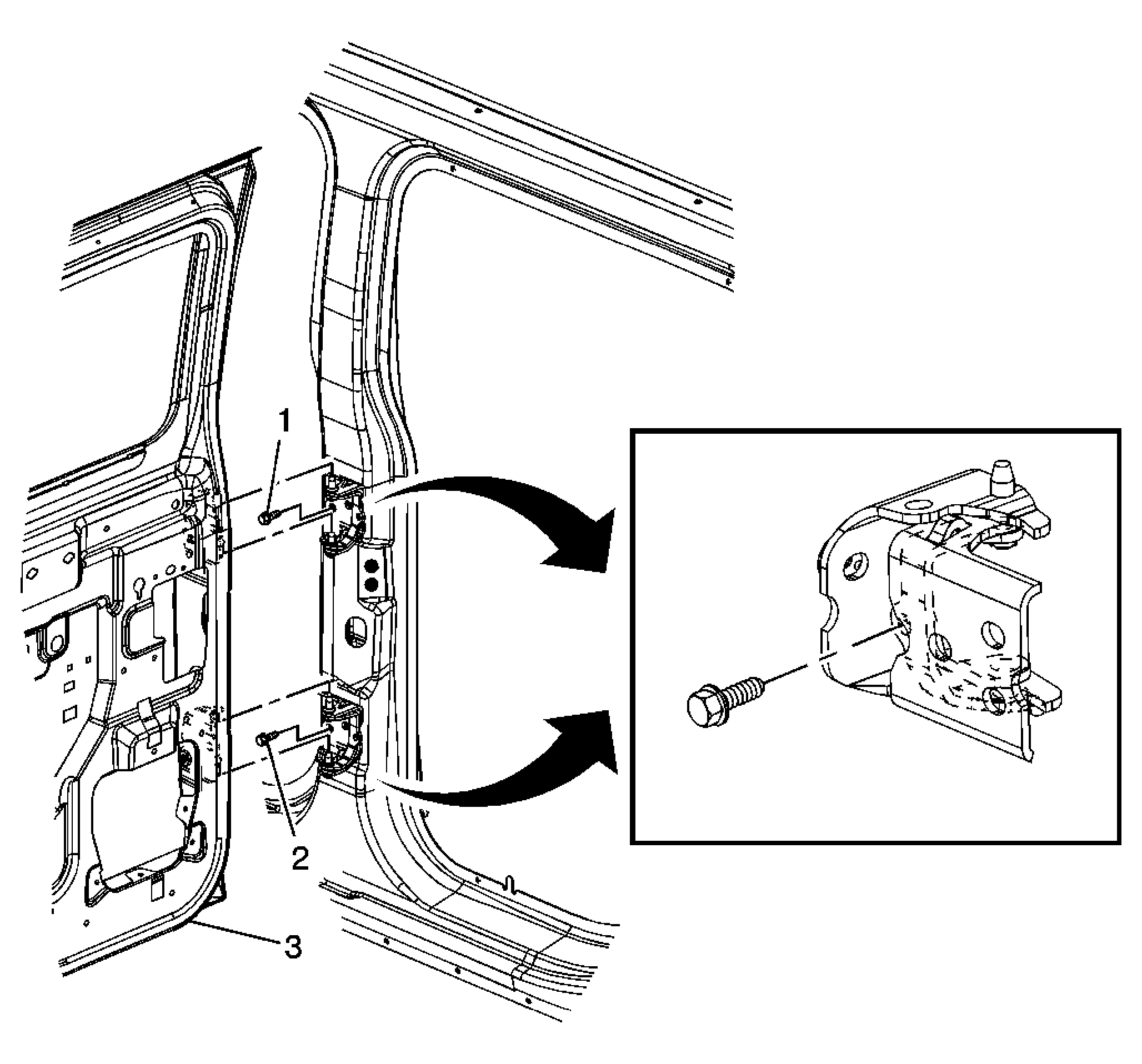

Fig 1: Identifying Rear Door
GM2046849Courtesy of GENERAL MOTORS CORP.
Callout Component Name
WARNING: Refer to SIR Warning .

Preliminary Procedures

  1. Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
  2. Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
  3. Remove the side door check link bolt. Refer to Door Check Link Replacement
1 Rear Side Door Hinge Upper Bolt (Qty: 2)
CAUTION: Refer to Fastener Caution .

Procedure

  1. Remove the water deflector.
  2. Support the door before removing the hinge bolts.
  3. Disconnect the electrical connector, if equipped.
  4. With the aid of an assistant, remove the door.

Tighten:  35 N.m (26 lb ft)
2 Rear Side Door Hinge Lower Bolt (Qty: 2)

Tighten:  35 N.m (26 lb ft)
3 Rear Side Door Assembly
Procedure:
When replacing the door it is necessary to transfer all of the internal components.
