Fuel Tank Filler Pipe Housing Replacement

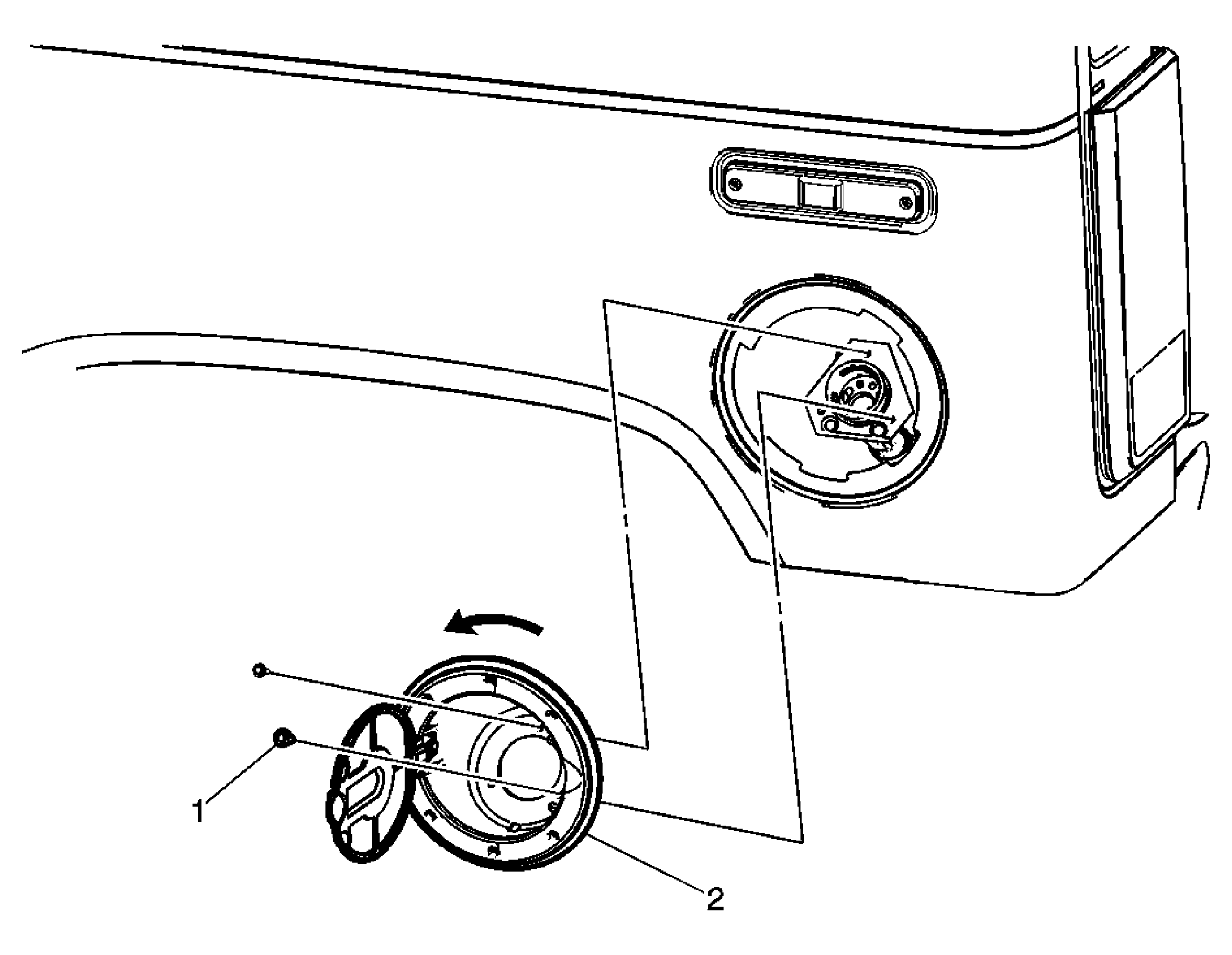

Fig 1: Identifying Fuel Tank Filler Pipe Housing
GM2042206Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the fuel cap.
1 Fuel Tank Filler Pipe Housing Screw (Qty: 3)
CAUTION: Refer to Fastener Caution .

Procedure:
With the screws removed, rotate the pocket 1/8 turn counterclockwise in order to release the pocket from the body quarter panel.

Tighten:  6 N.m (53 lb in)
2 Fuel Tank Filler Pipe Housing
