Radio/Navigation System Schematics

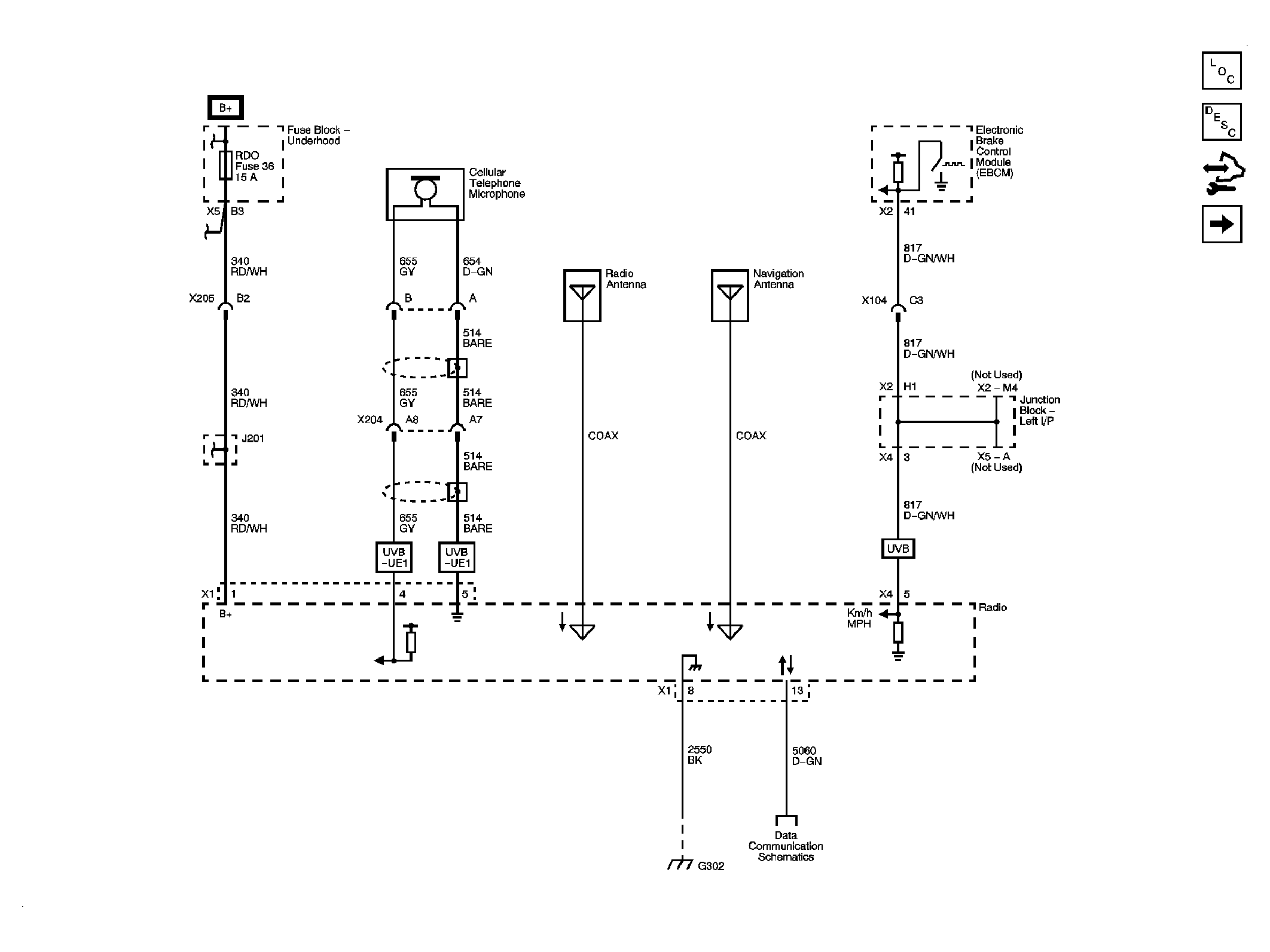

Fig 1: Radio Power, Ground & Serial Data

GM2097164

Courtesy of GENERAL MOTORS CORP.

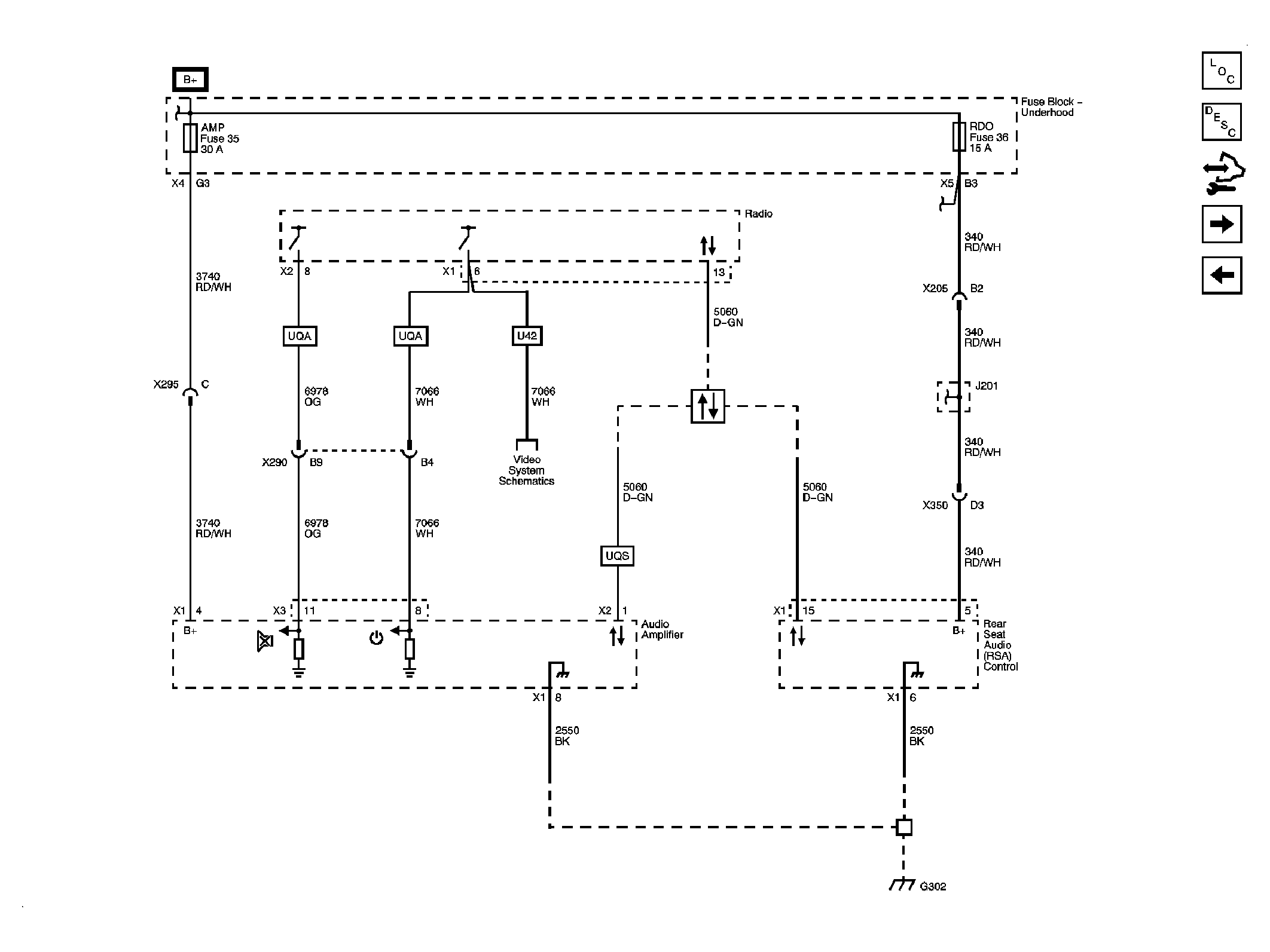

Fig 2: Amplifier & Rear Seat Audio

GM2097165

Courtesy of GENERAL MOTORS CORP.

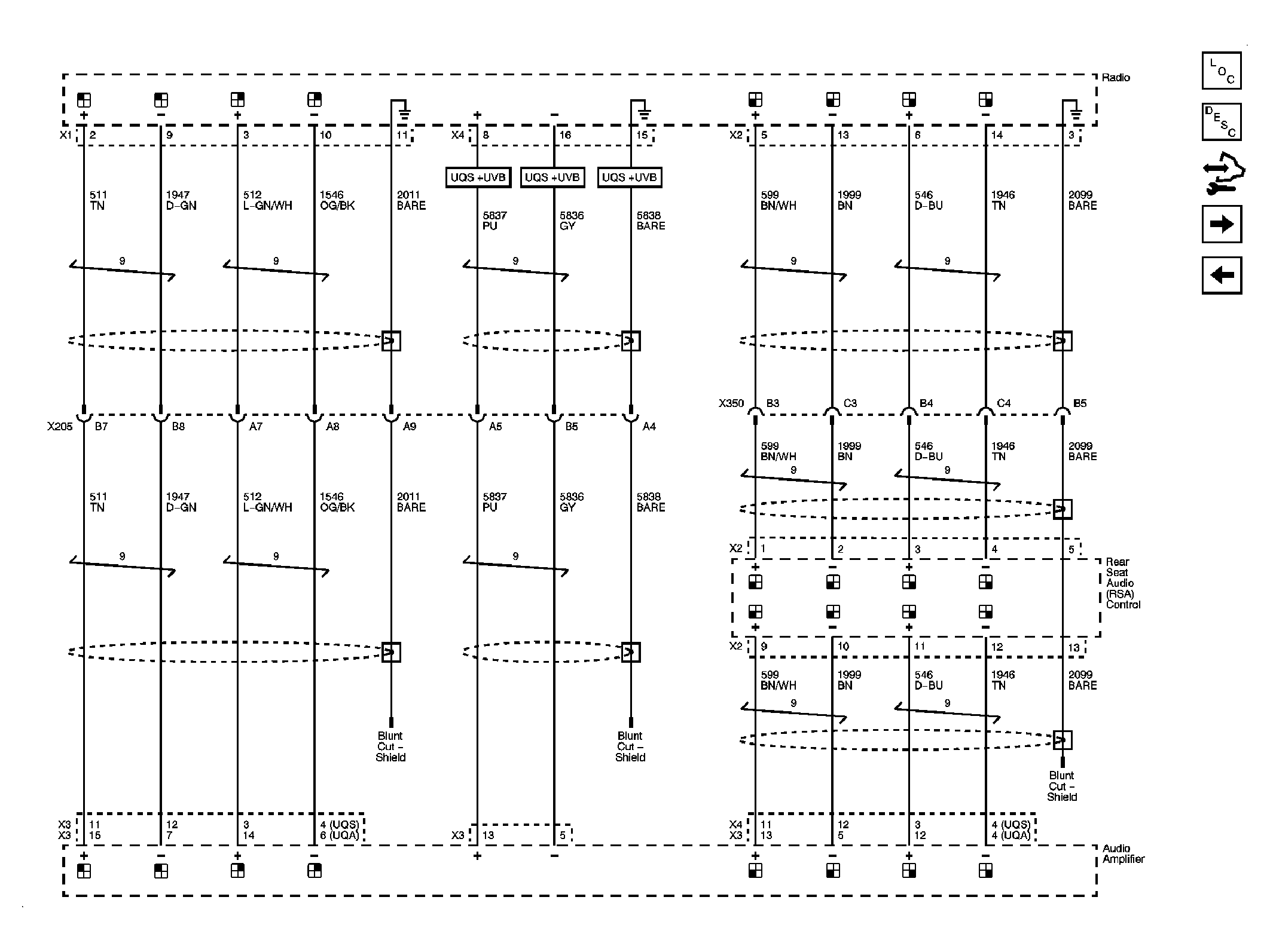

Fig 3: Amplifier Inputs

GM2097166

Courtesy of GENERAL MOTORS CORP.

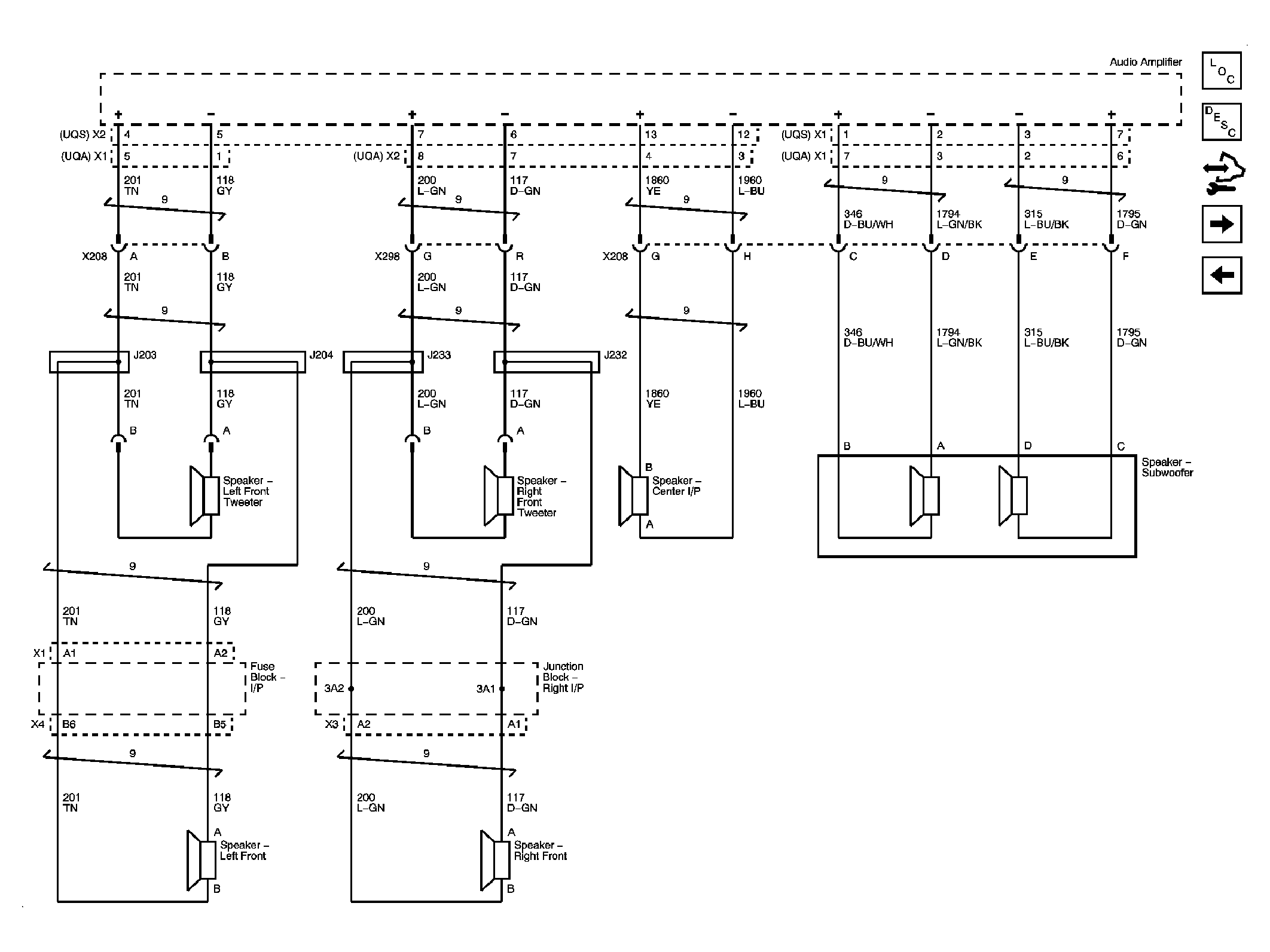

Fig 4: Front Speakers UQS

GM2097167

Courtesy of GENERAL MOTORS CORP.

Fig 5: Right Speakers UQS

GM2097168

Courtesy of GENERAL MOTORS CORP.

Fig 6: Right Speakers UQA

GM2097169

Courtesy of GENERAL MOTORS CORP.

Fig 7: Digital Radio Receiver U2K

GM2097170

Courtesy of GENERAL MOTORS CORP.

Fig 8: Amplifier Inputs UQS

GM2097171

Courtesy of GENERAL MOTORS CORP.
