Transmission Heat Shield Replacement

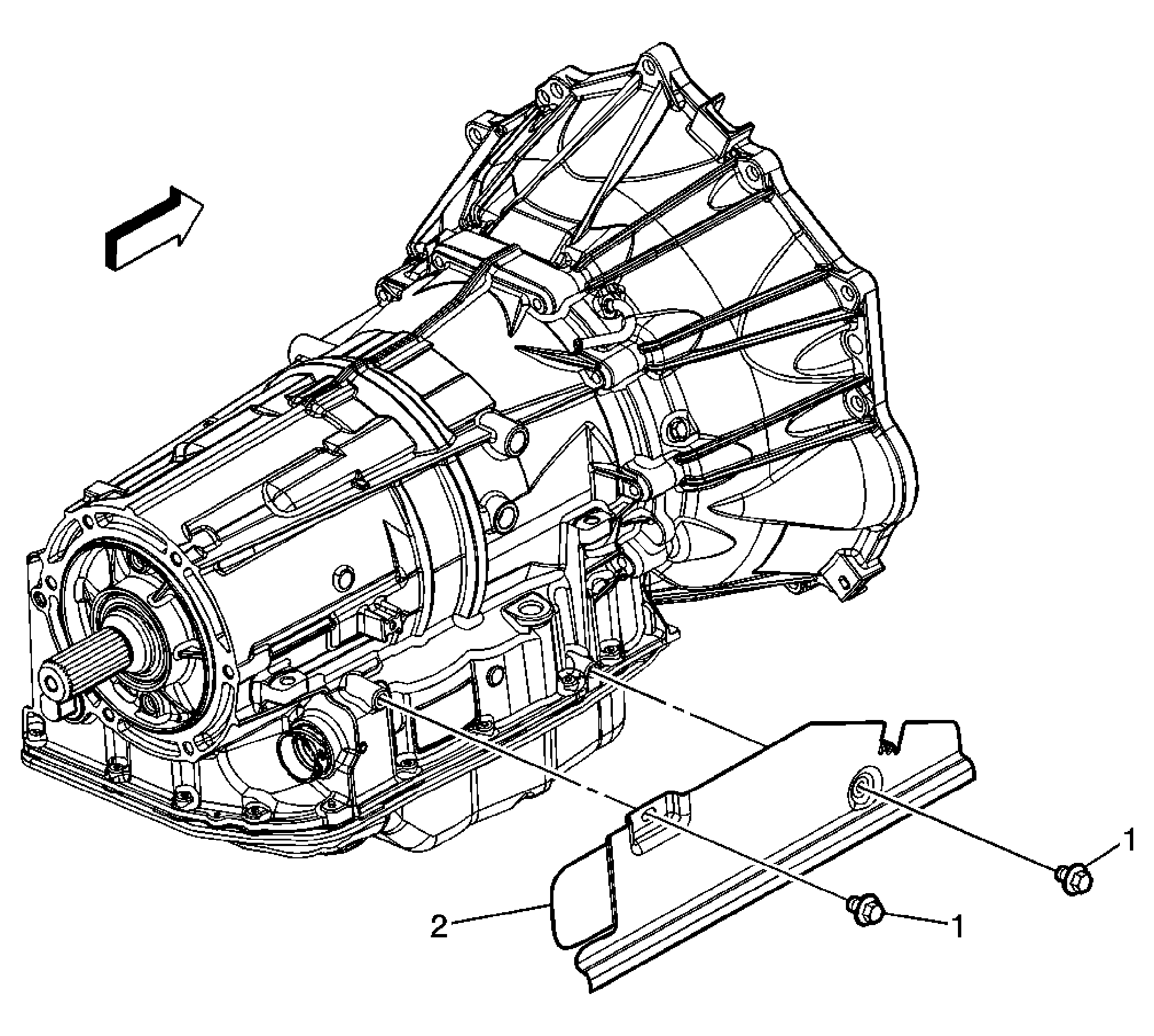

Fig 1: Identifying Transmission Heat Shield

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Transmission Heat Shield Bolt CAUTION: Refer to Fastener Caution . Tighten:  17 N.m (13 lb ft)
2	Transmission Heat Shield
