Installation Procedure

    Fig 1: Identifying Transmission Cooler Lines & Bolt
    GM1705099Courtesy of GENERAL MOTORS CORP.
  1. Install the transmission cooler lines to the vehicle (1).
  2. Clip transmission cooler lines to retainers on engine.
  3. Install the cooling lines to the transmission (1). Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .

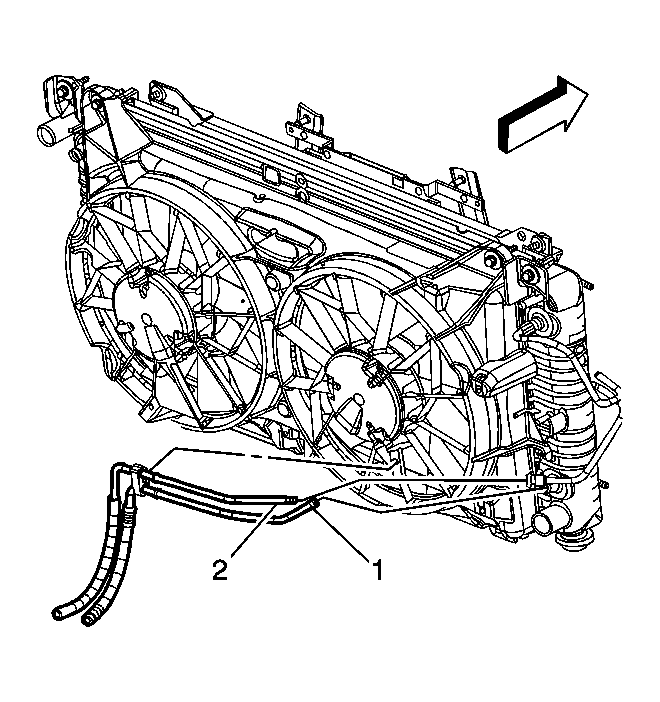

    4. Fig 2: Identifying Transmission Fluid Cooler Hoses
    GM2041168Courtesy of GENERAL MOTORS CORP.
  4. Install the transmission fluid cooler hose (2) to the auxiliary transmission fluid cooler pipe. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
  5. Install the transmission fluid cooler hose (1) to the radiator. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
  6. Install the catalytic converter guard. Refer to Catalytic Converter Guard Replacement .
  7. Install the right front wheelhouse panel. Refer to Wheelhouse Panel Replacement
  8. Lower the vehicle.
