Transmission Control Lever Knob Replacement

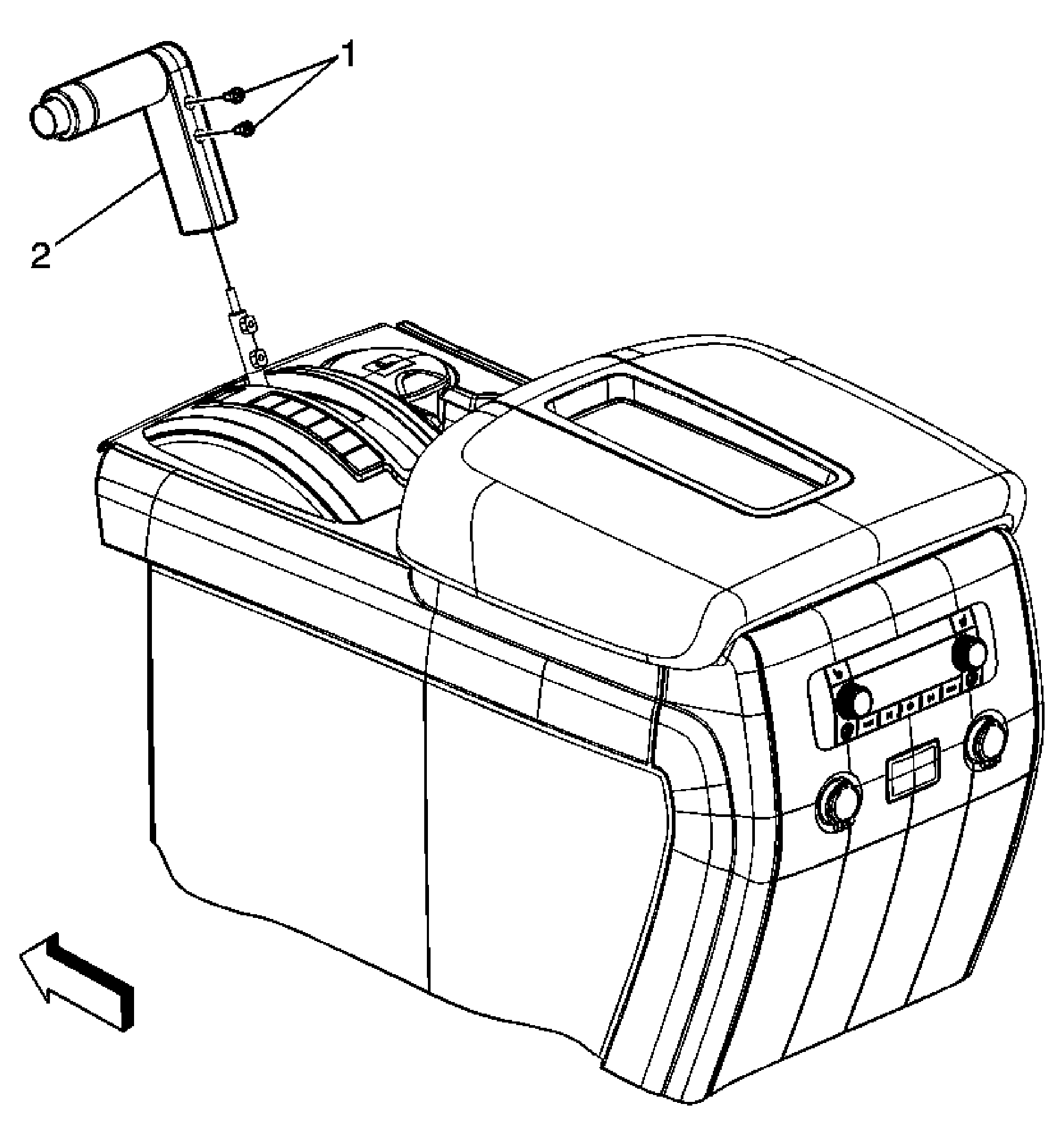

Fig 1: Identifying Transmission Control Lever Knob
GM1967931Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Transmission Shift Control Lever Knob Screw (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten:  6 N.m (53 lb in)
2 Transmission Shift Control Lever Knob
