Installation Procedure

  1. Route the range selector cable through the hole in the floor panel.
  2. Ensure that the transmission shift control lever is in the park position.

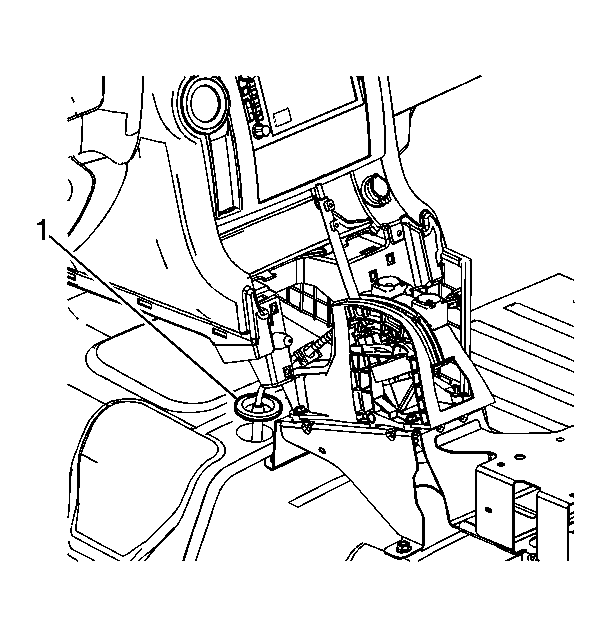

    3. Fig 1: Identifying Range Selector Cable Grommet
    GM1971151Courtesy of GENERAL MOTORS CORP.
  3. Install the range selector cable grommet (1) to the floor panel.

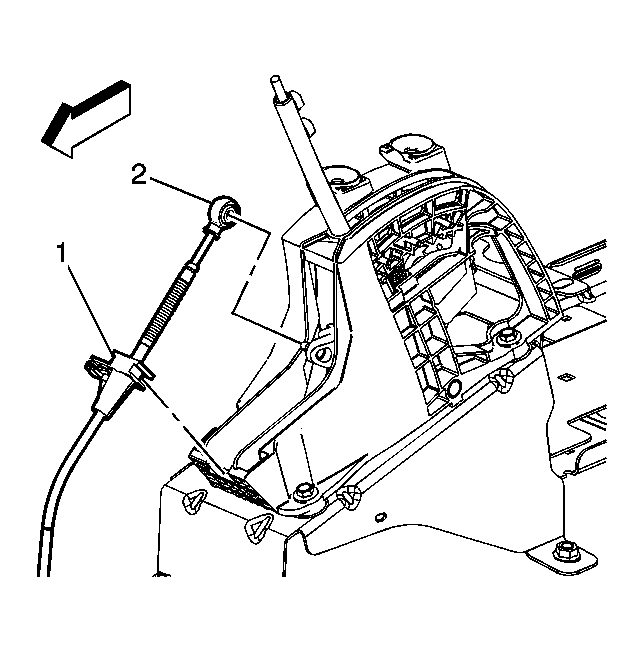

    4. Fig 2: Identifying Range Selector Cable & End
    GM1967928Courtesy of GENERAL MOTORS CORP.
  4. Install the range selector cable (1) to the transmission shift control lever housing.
  5. Install the range selector cable end (2) to the transmission shift control lever ball stud.
  6. Install the console. Refer to Front Floor Console Replacement .
  7. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
  8. Ensure that the transmission range selector lever is in the mechanical park position.
    9. Fig 3: Identifying Range Selector Cable Components
    GM1971076Courtesy of GENERAL MOTORS CORP.
  9. Install the range selector cable (3) into the range selector cable bracket (1) at the transmission.
  10. Install the range selector cable retaining clip (2).
  11. Install the range selector cable (3) to the transmission range selector lever ball stud (4).
  12. Lower the vehicle.
