Range Selector Lever Cable Bracket Replacement

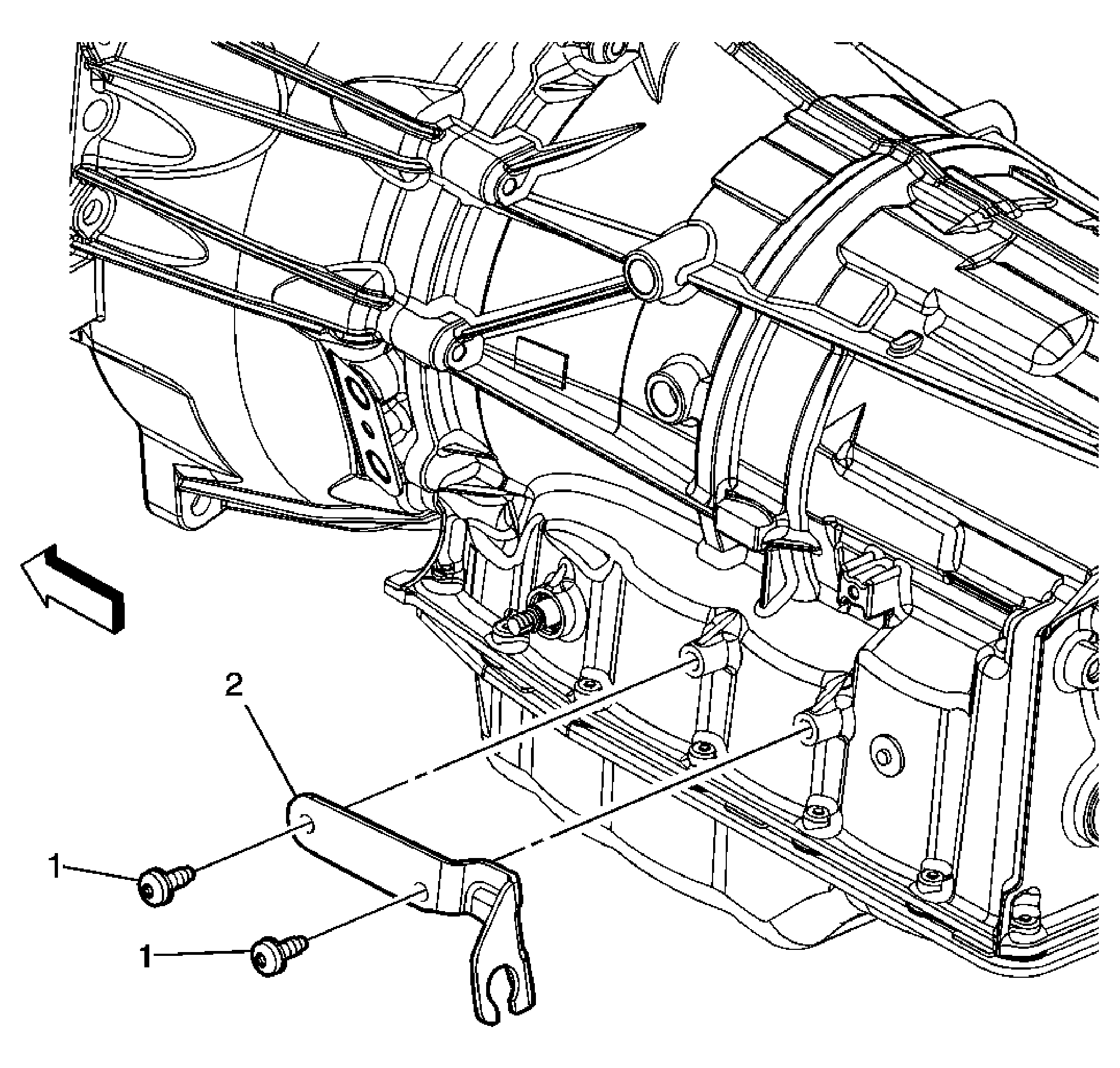

Fig 1: Identifying Range Selector Lever Cable Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the transmission range selector lever cable only from the transmission. Refer to Range Selector Lever Cable Replacement .
1	Transmission Range Selector Lever Cable Bracket Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 22 N.m (16 lb ft)
2	Transmission Range Selector Lever Cable Bracket

Callout

Component Name

Preliminary Procedures

Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the transmission range selector lever cable only from the transmission. Refer to Range Selector Lever Cable Replacement .

Transmission Range Selector Lever Cable Bracket Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 22 N.m (16 lb ft)

Transmission Range Selector Lever Cable Bracket
