Neutral - Engine Running - A/T System Hydraulic Diagram

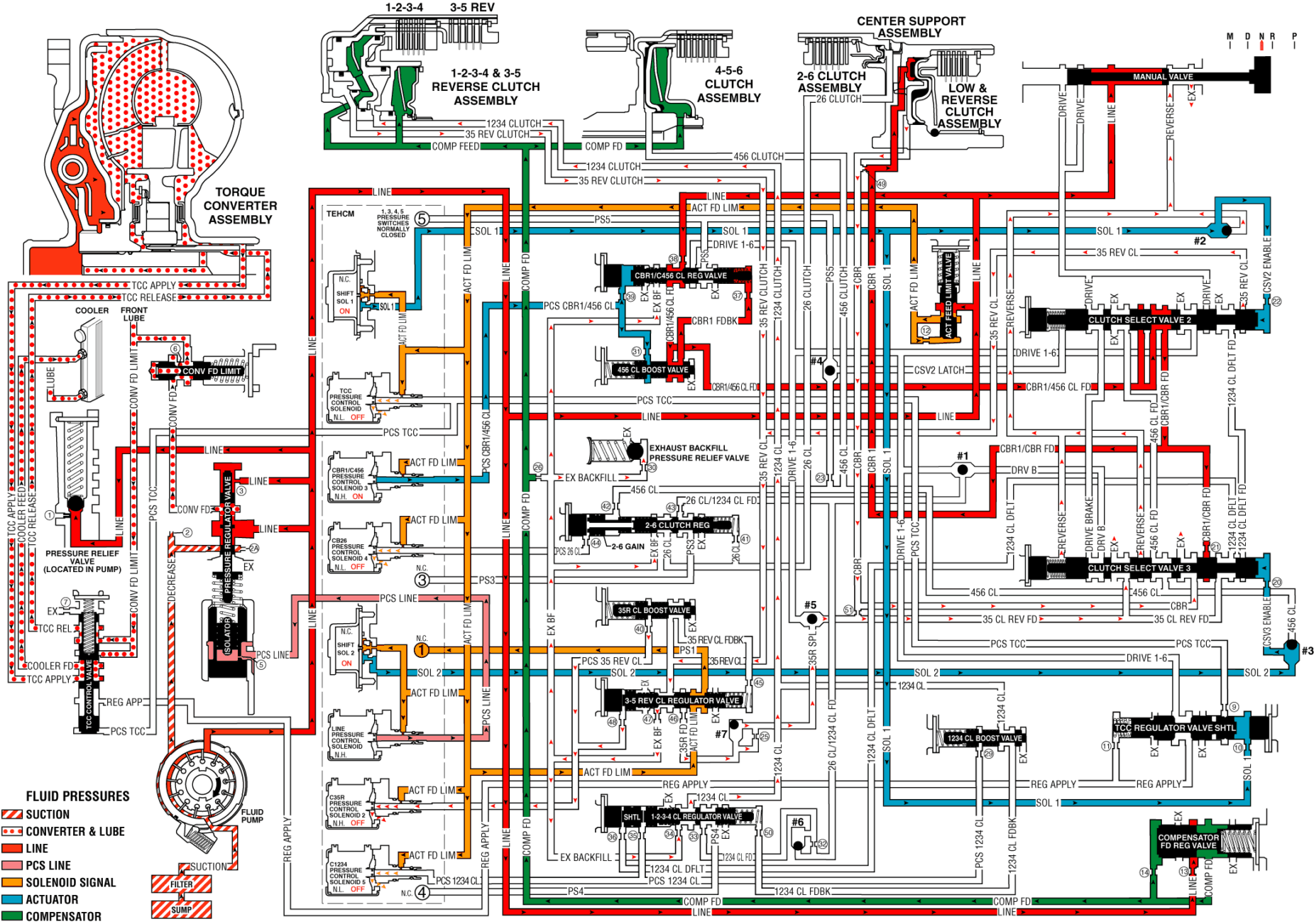

Fig 1: Neutral - Engine Running Fluid Flow Chart

GM1654165

Courtesy of GENERAL MOTORS CORP.
