Air Suspension Schematics

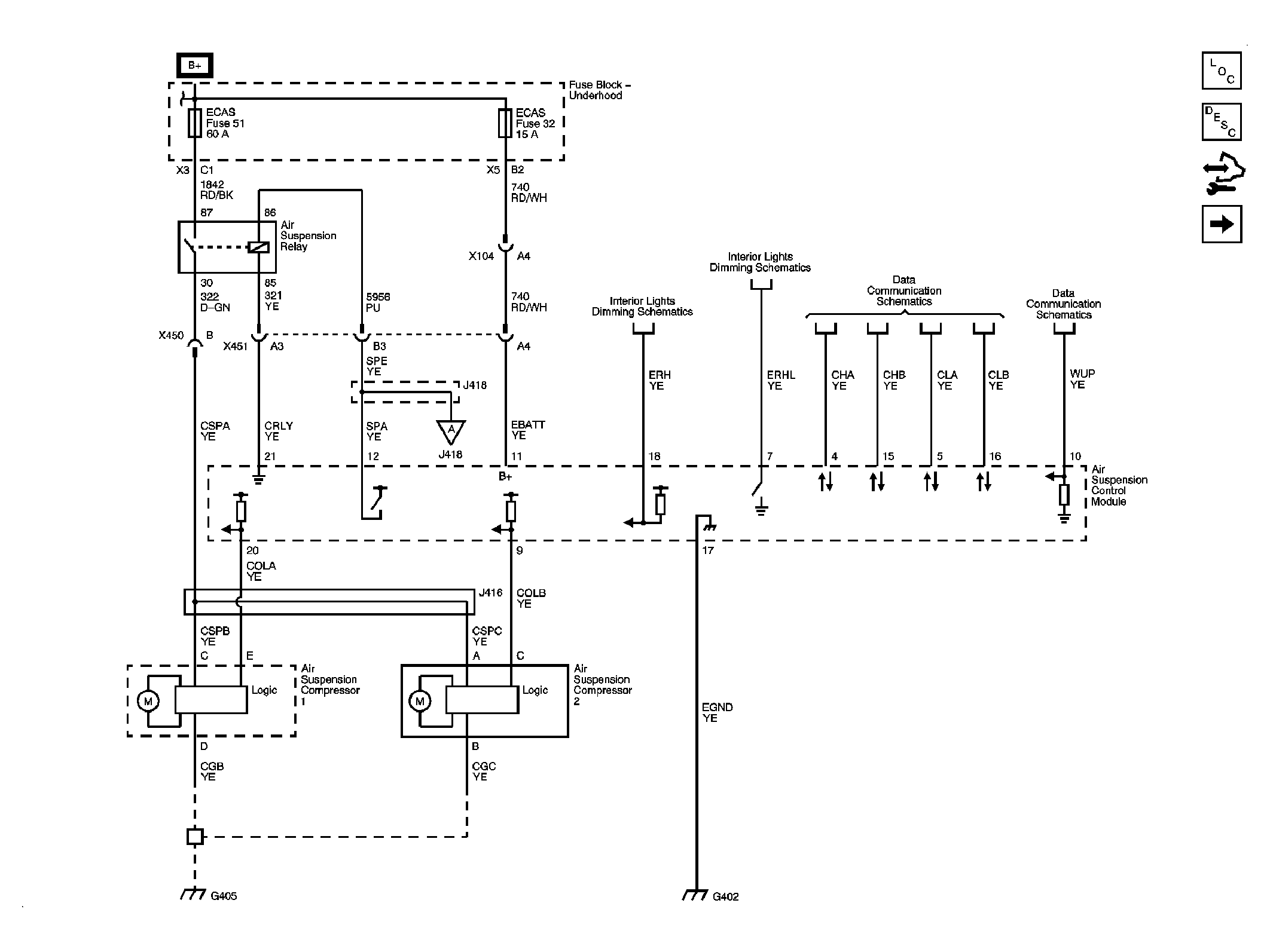

Fig 1: Air Suspension
GM2097267Courtesy of GENERAL MOTORS CORP.
Fig 2: Inflator Switch & Suspension Position Sensors
GM2149468Courtesy of GENERAL MOTORS CORP.

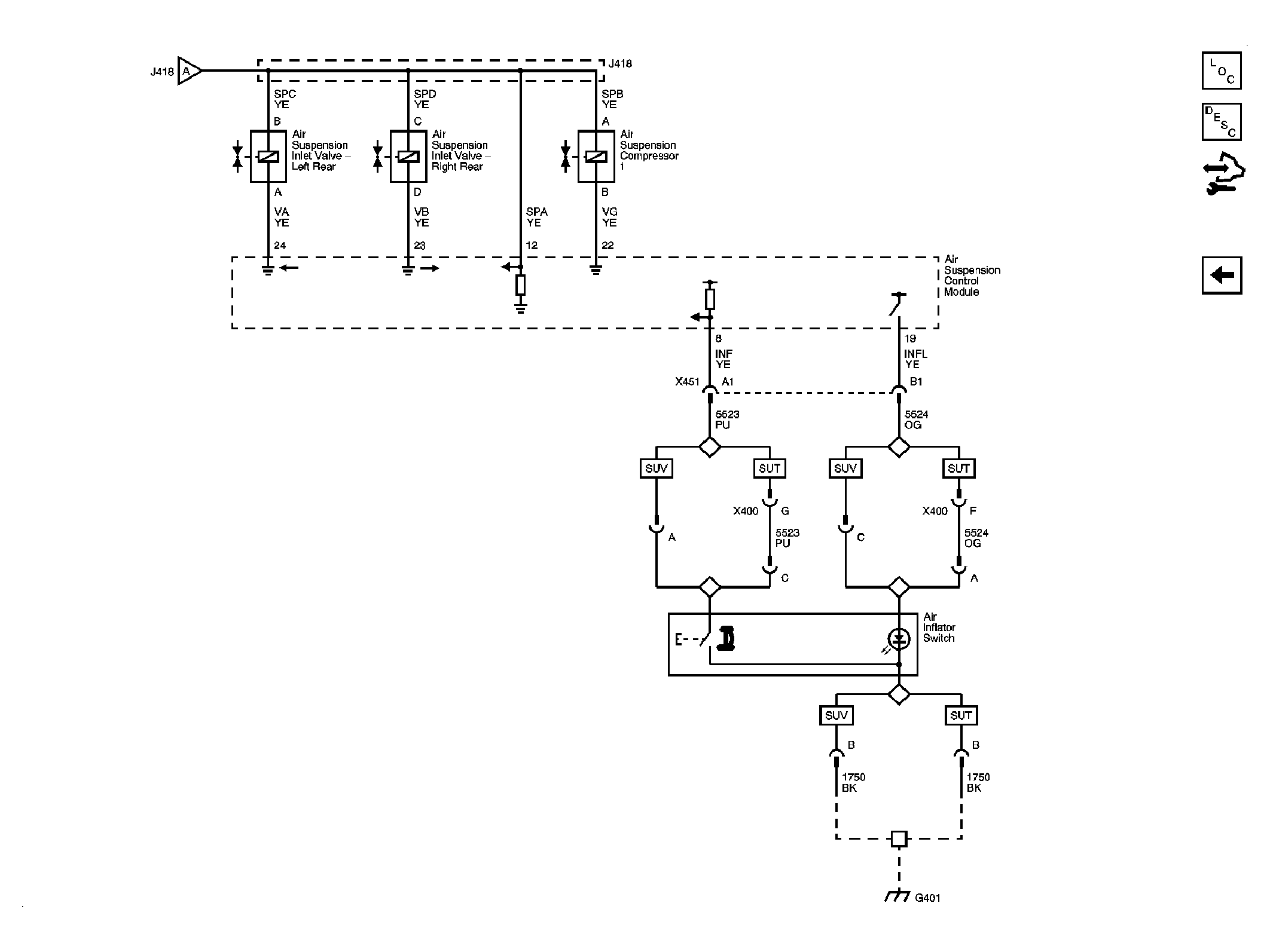

Fig 3: Solenoids Valves & Pressure Sensor
GM2149483Courtesy of GENERAL MOTORS CORP.
