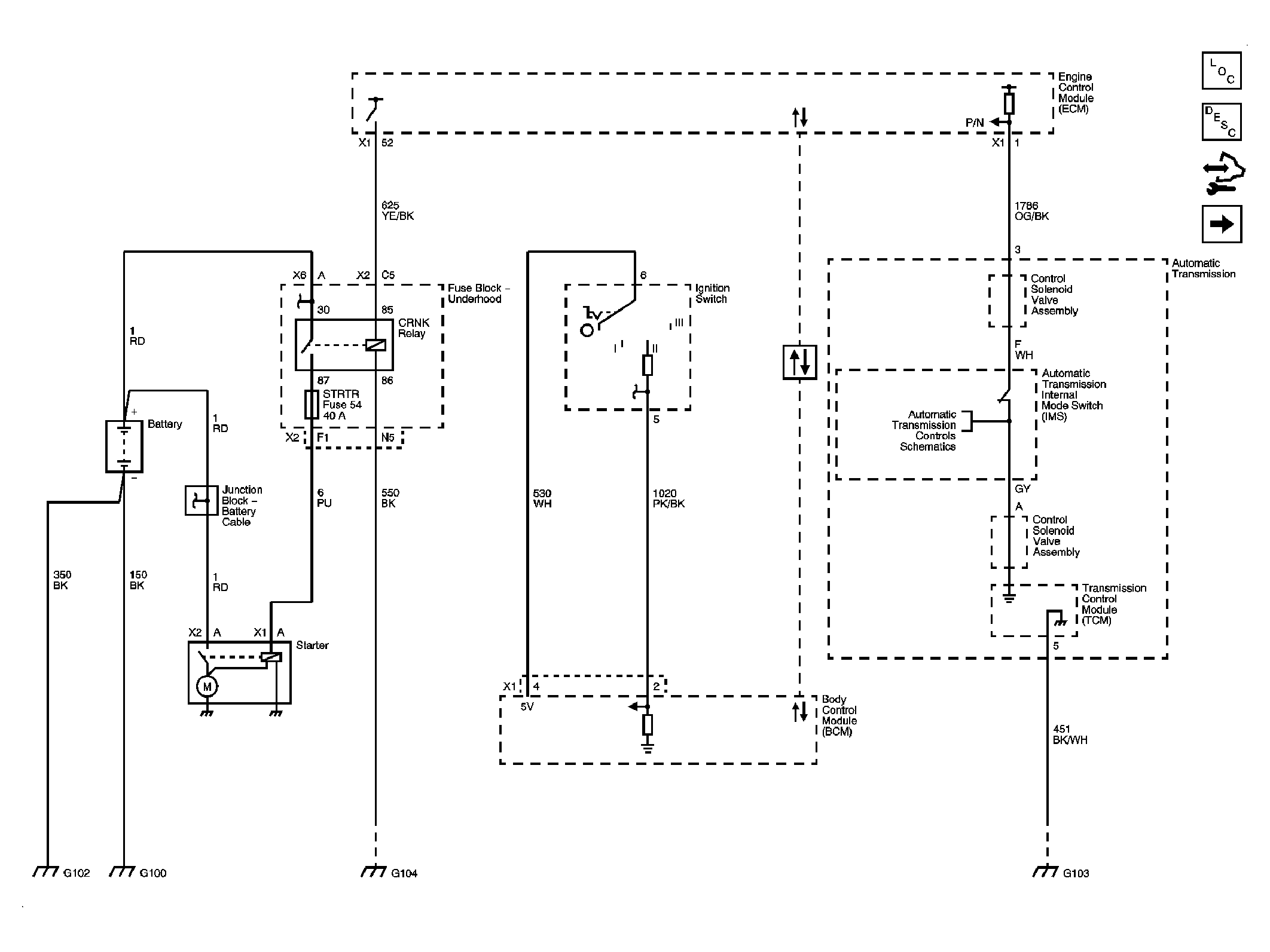

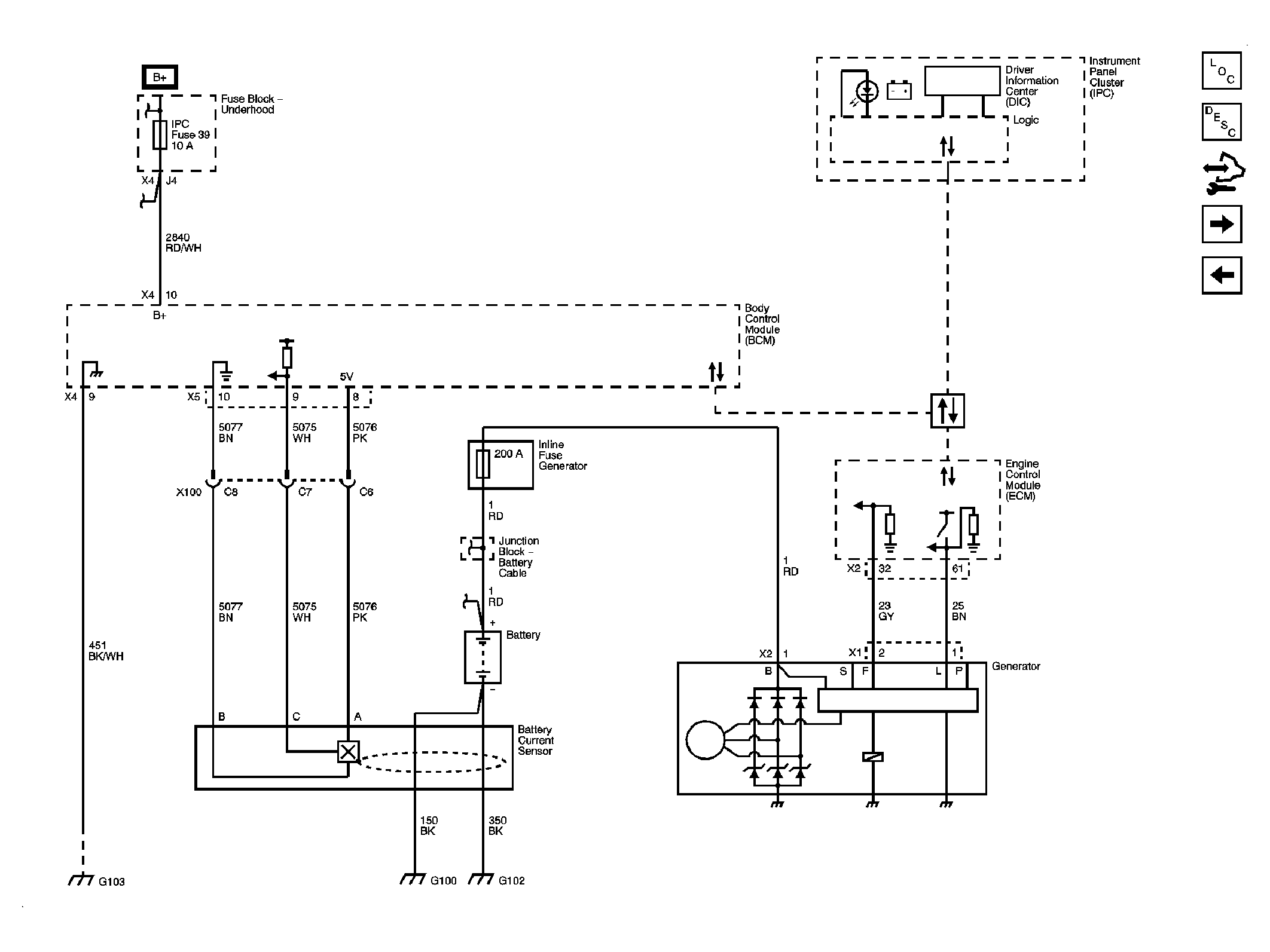

Home >> Hummer >> 2009 >> H2 4D Utility Pickup >> Repair and Diagnosis >> Engine Mechanical >> Starter >> Battery, Charging System And Starting System >> Schematic and Routing Diagrams >> Starting and Charging Schematics
