Instrument Panel Outer Air Outlet Replacement - Left Side

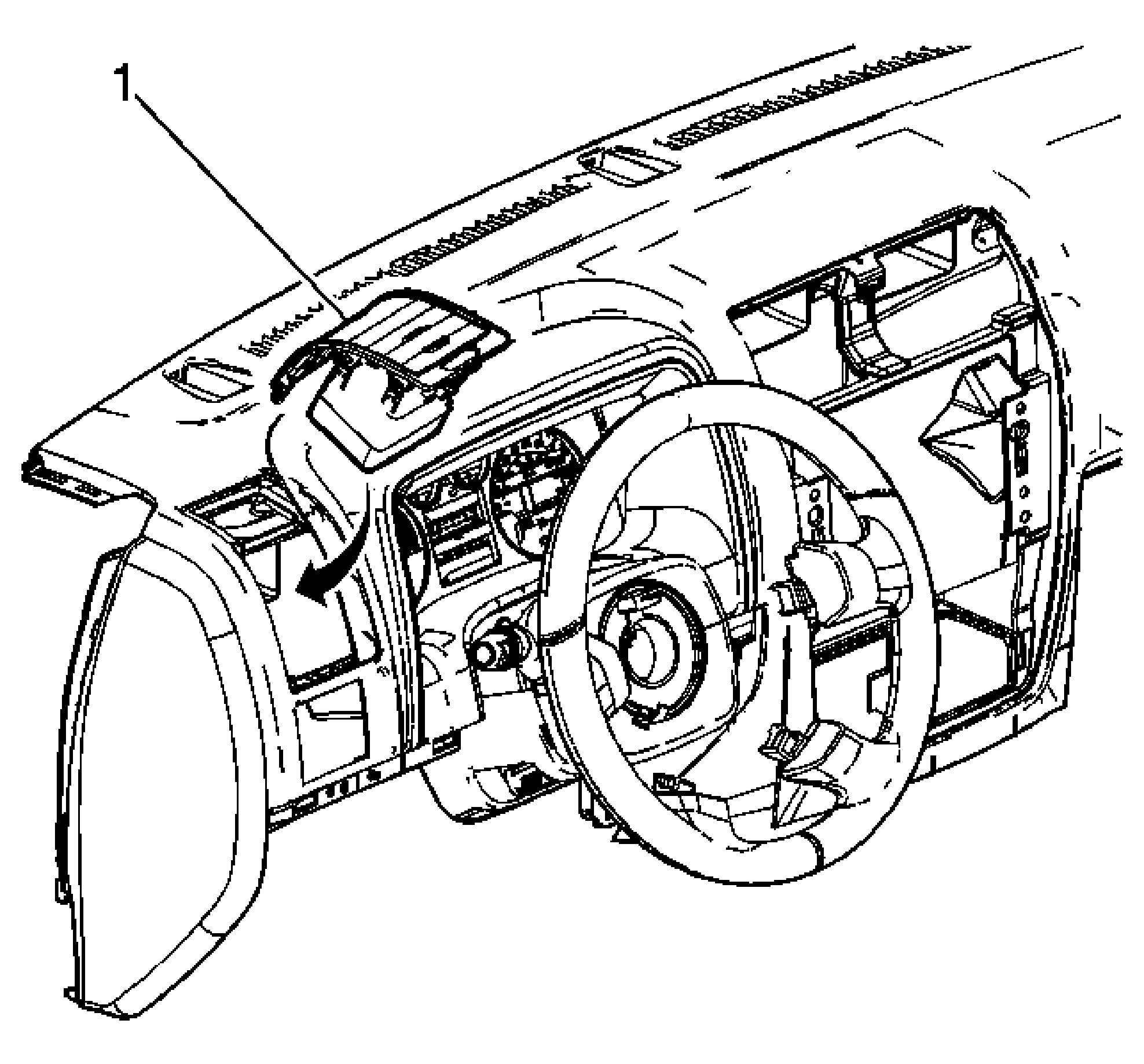

Fig 1: Instrument Panel Outer Air Outlet Replacement - Left Side
GM1570392Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Grille Assembly, Instrument Panel Outer Air Outlet - Left
Tip:  Using a plastic trim tool around the outer perimeter release the grille assembly from the I/P trim pad.
