Automatic Transmission Controls Schematics

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

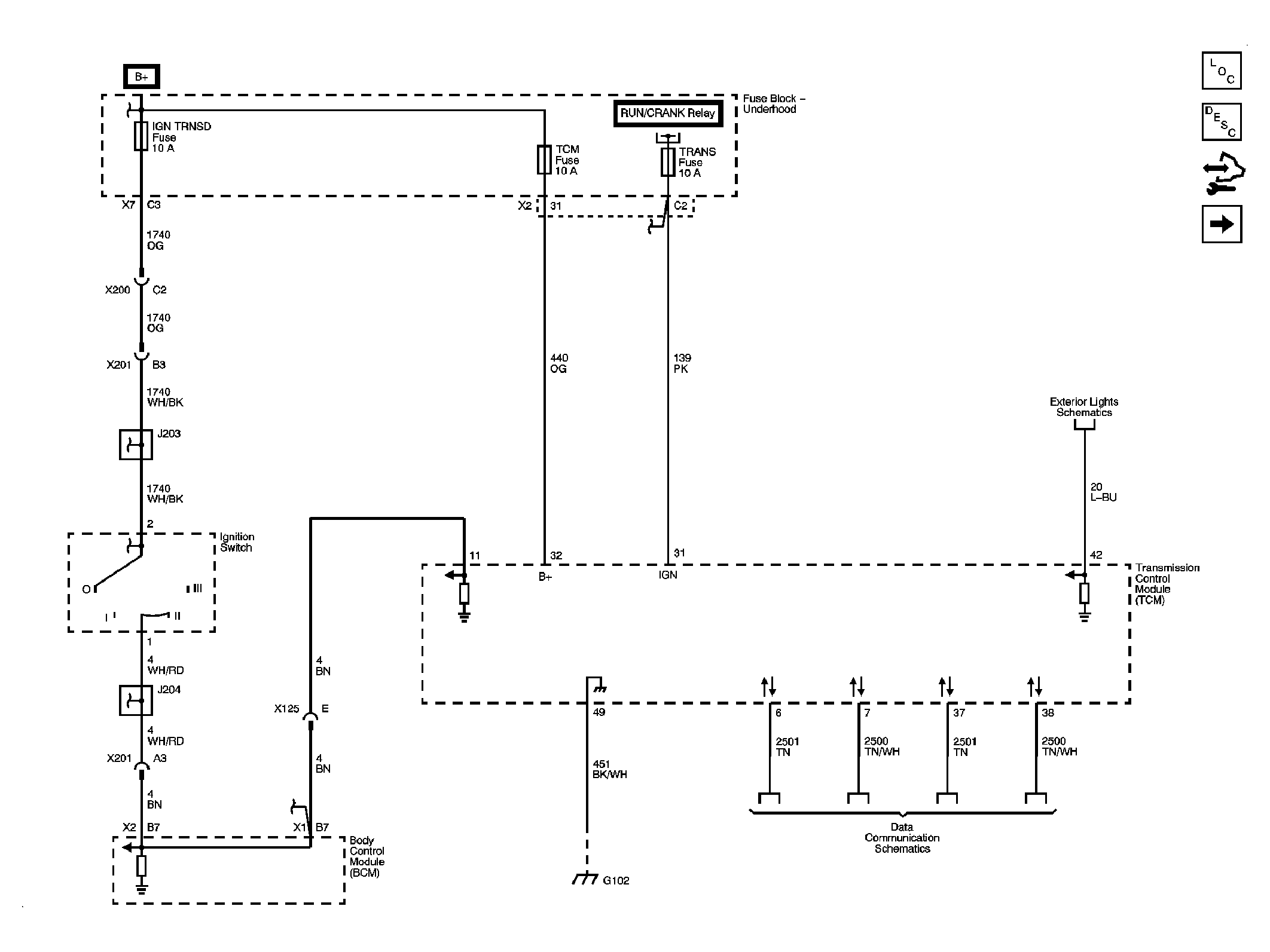

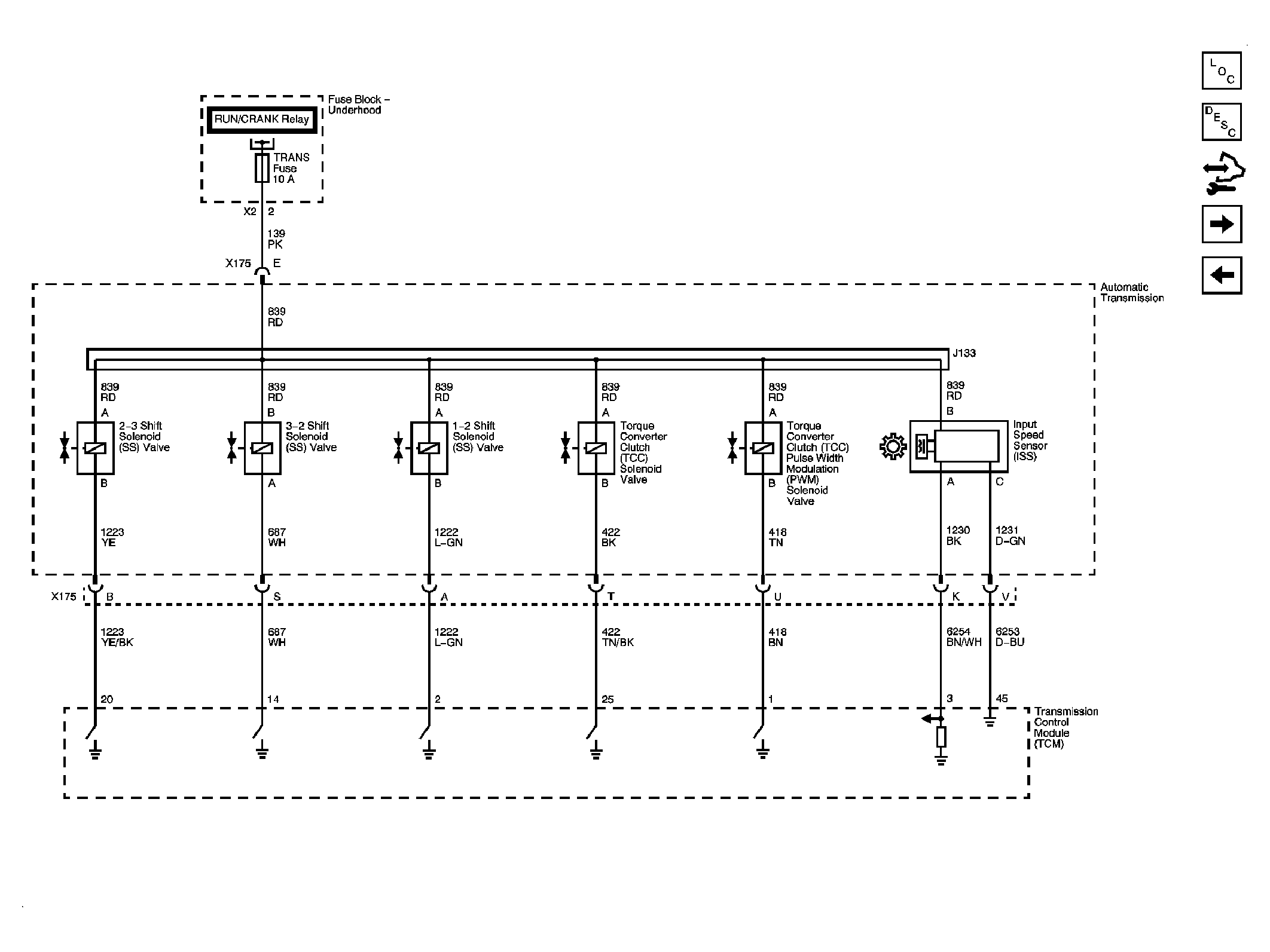

Fig 1: Shift Controls and ISS Signal

Courtesy of GENERAL MOTORS CORP.

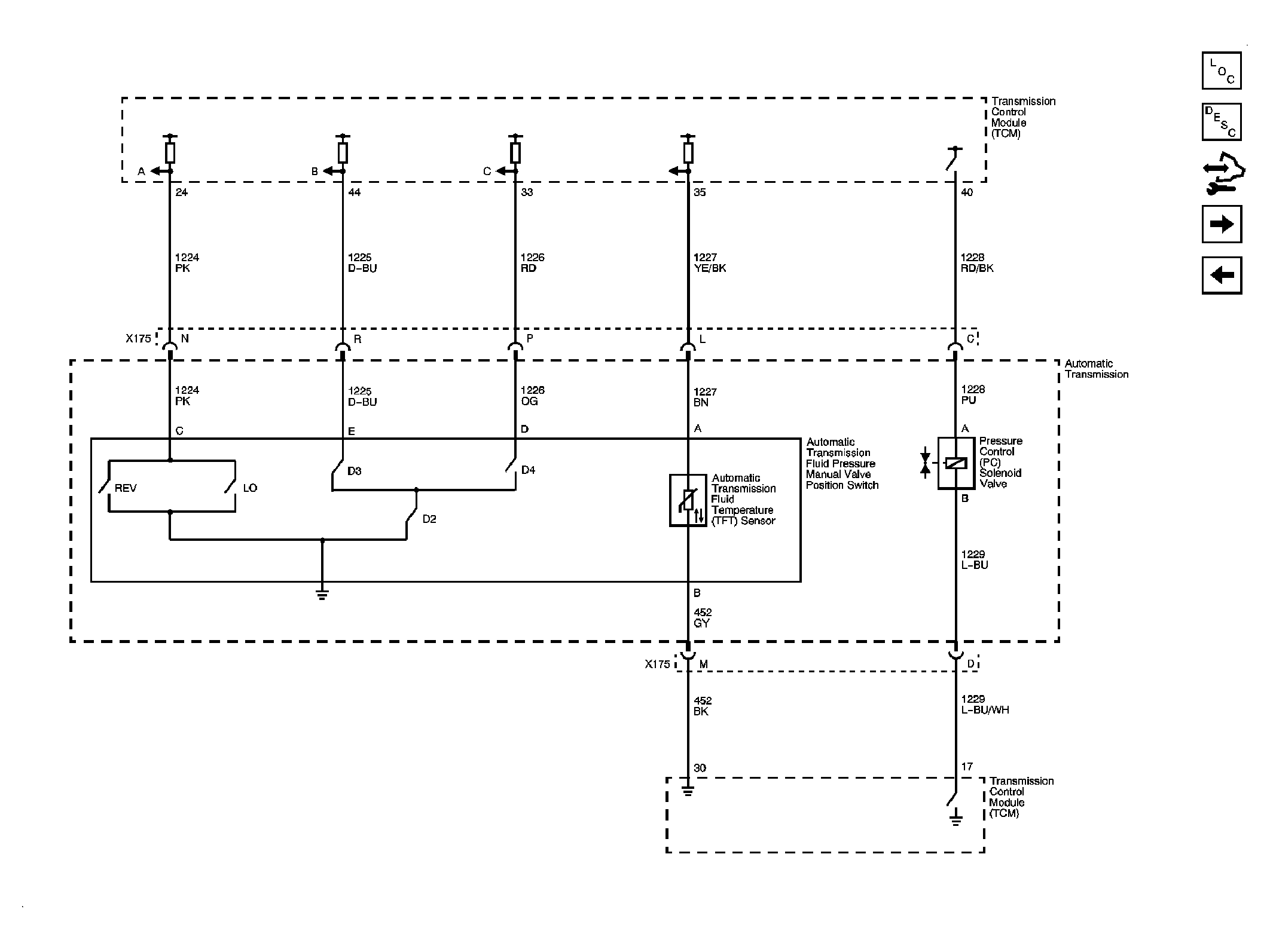

Fig 2: Transmission Range Signal

Courtesy of GENERAL MOTORS CORP.

Fig 3: Fluid and Temperature Controls and VSS Signal

Courtesy of GENERAL MOTORS CORP.

Fig 4: PNP and VSS Signals

Courtesy of GENERAL MOTORS CORP.
