Engine Flywheel Cleaning and Inspection (Manual Transmission)
WARNING: This page is about a different car, the 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

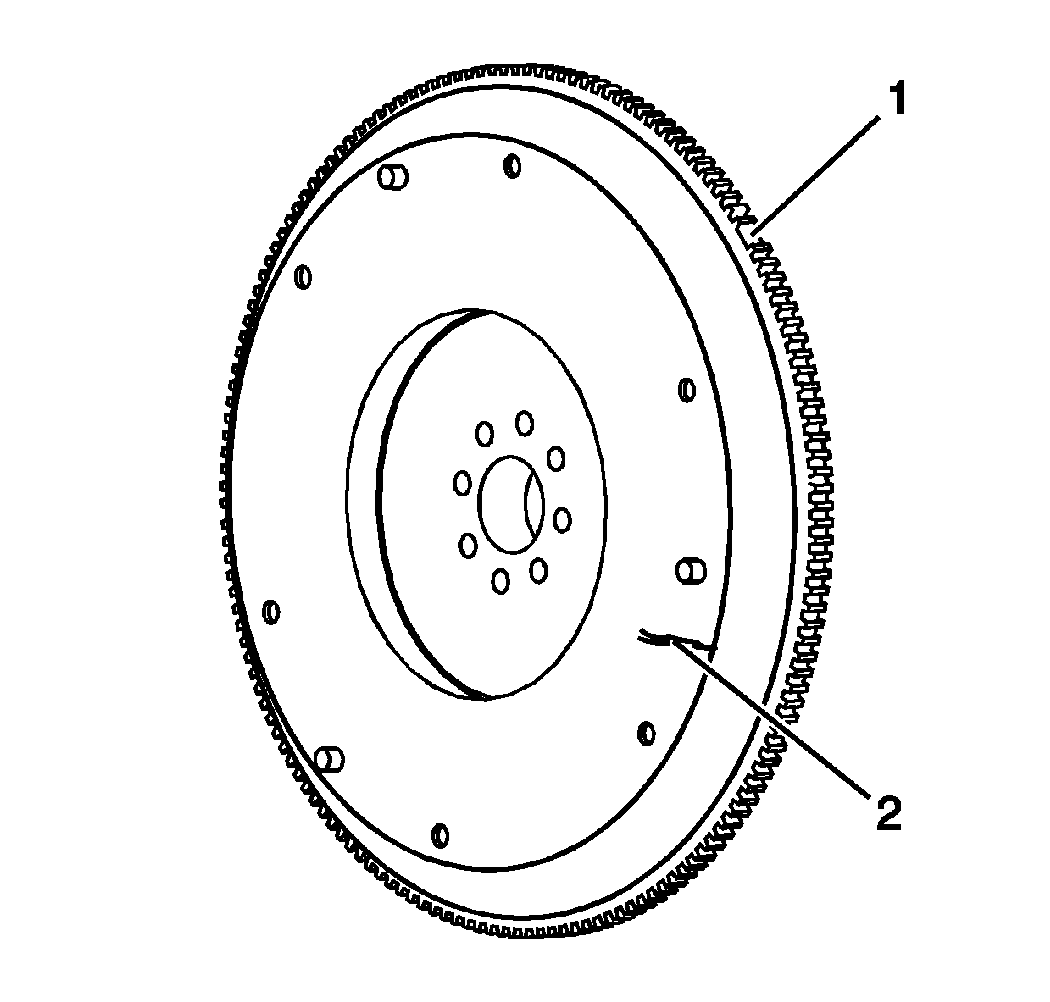

- Inspect the engine flywheel for damaged teeth (1).
- Inspect the engine flywheel for cracks, hot spots, or any surface damage (2).
- Replace the engine flywheel if damage is present.
IMPORTANT:
In order to maintain the proper component balance, contact surface taper and heat transfer, manual transmission flywheels are NOT to be machined.
