Engine Flywheel Cleaning and Inspection (Automatic Transmission)

WARNING: This page is about a different car, the 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

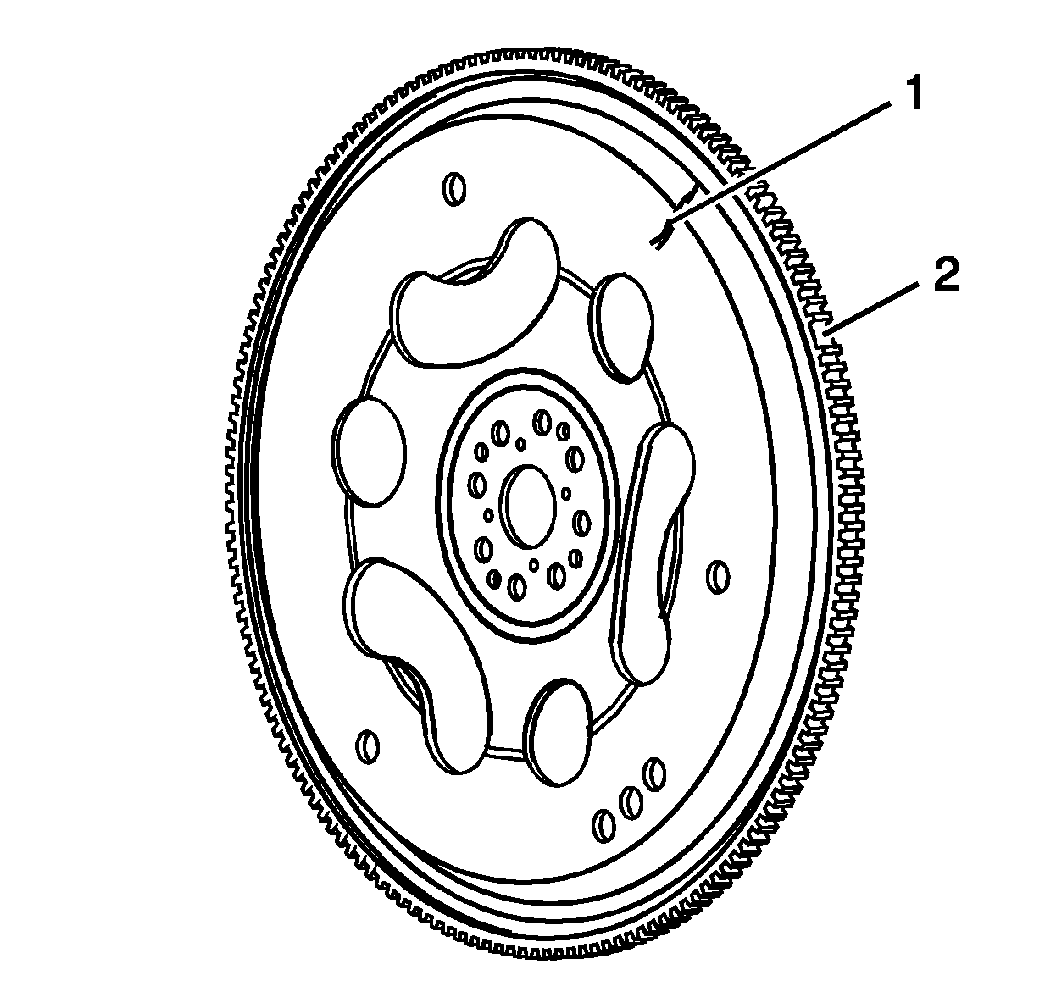

    Fig 1: Inspecting Engine Flywheel For Damage - Automatic Transmission
    GM954118Courtesy of GENERAL MOTORS CORP.
  1. Inspect the engine flywheel for cracks (1).
  2. Inspect the engine flywheel teeth for damage (2).
  3. Replace the engine flywheel if damage is present.
