Power Distribution Schematics

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

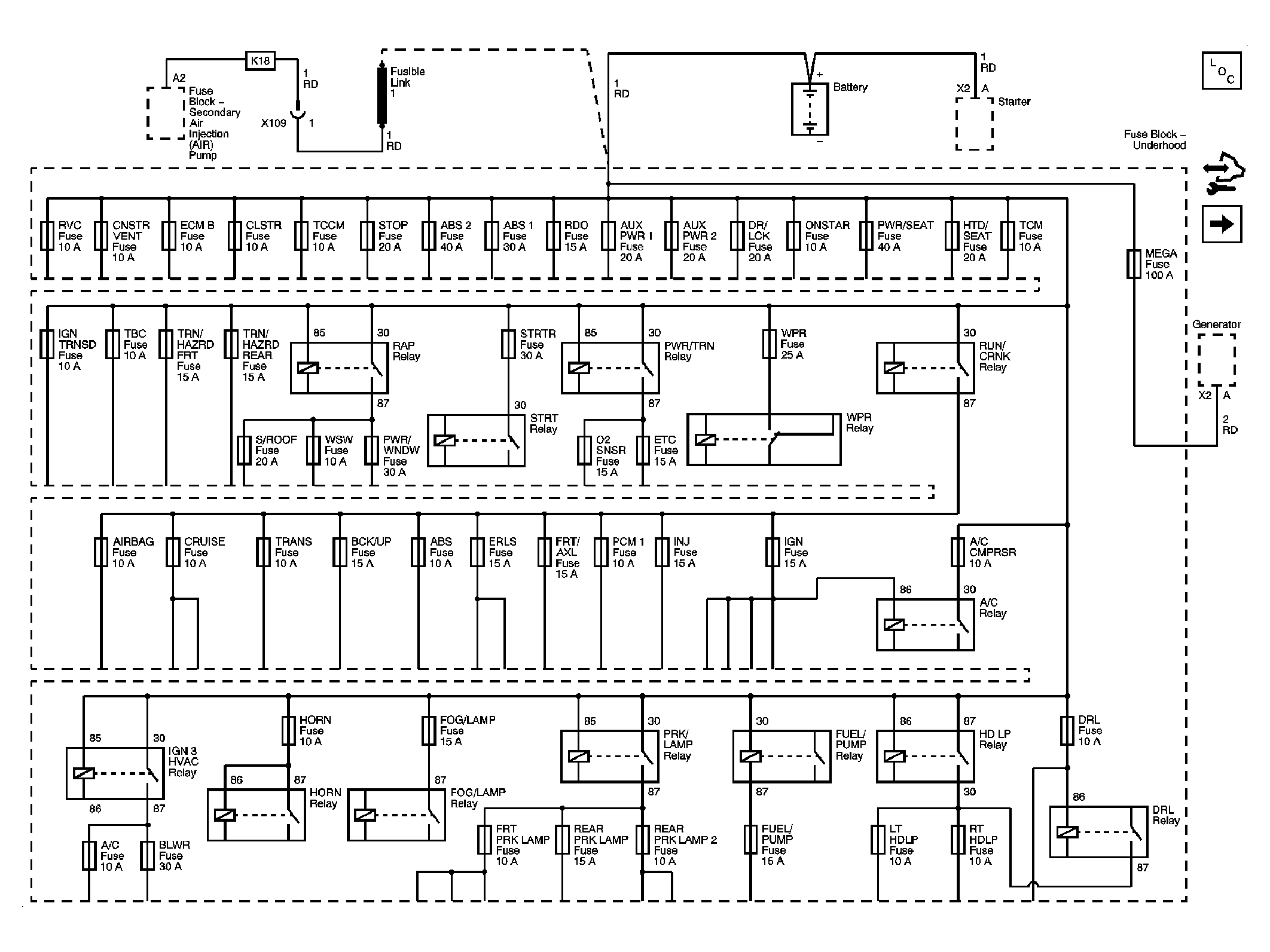

Fig 1: B+ Bus

Courtesy of GENERAL MOTORS CORP.

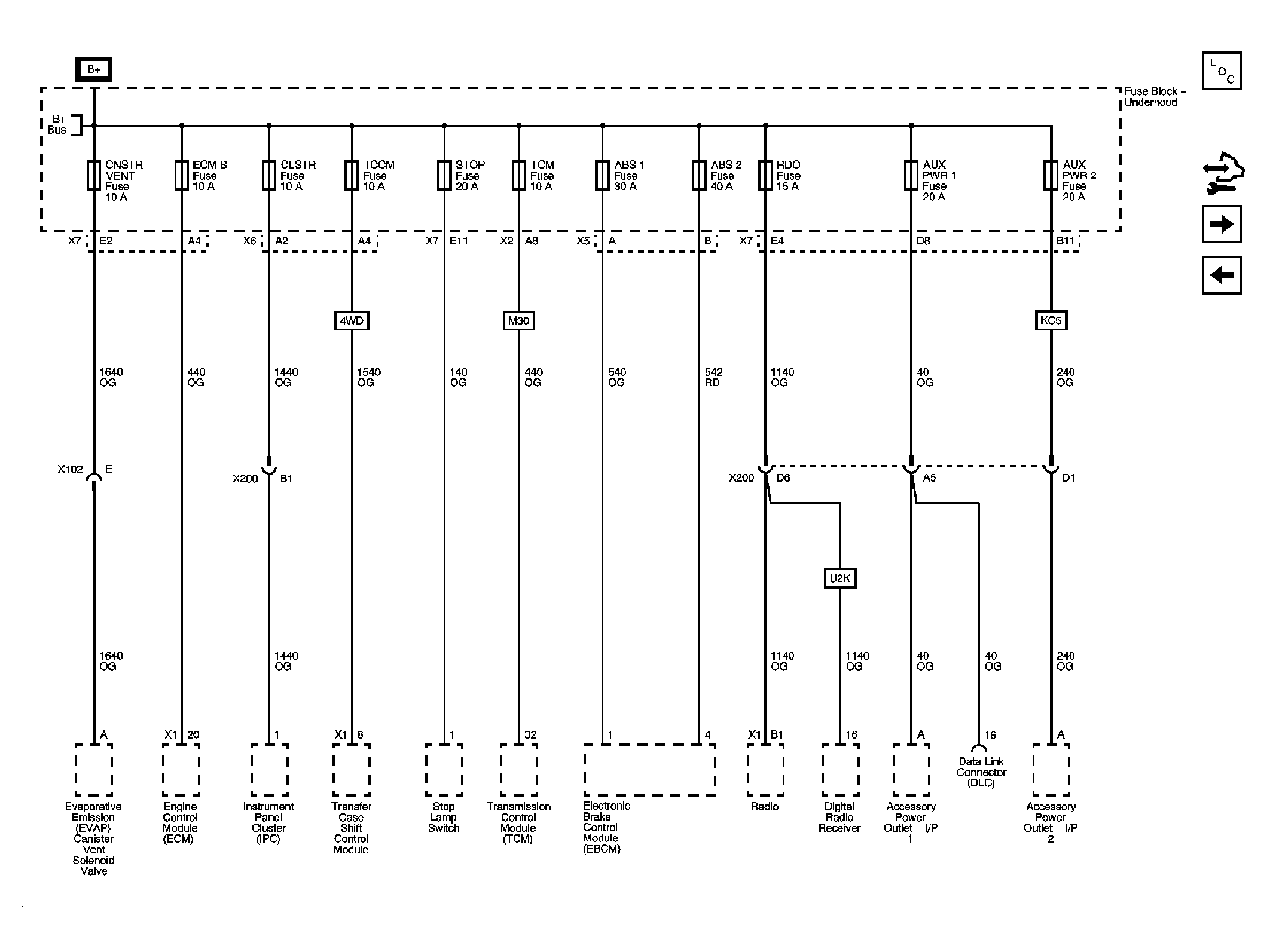

Fig 2: ABS 1, ABS 2, AUX PWR 1, AUX PWR 2, CNSTR VENT, CIGAR, CLSTR, PCM B, RDO, STOP, and TCCM Fuses

Courtesy of GENERAL MOTORS CORP.

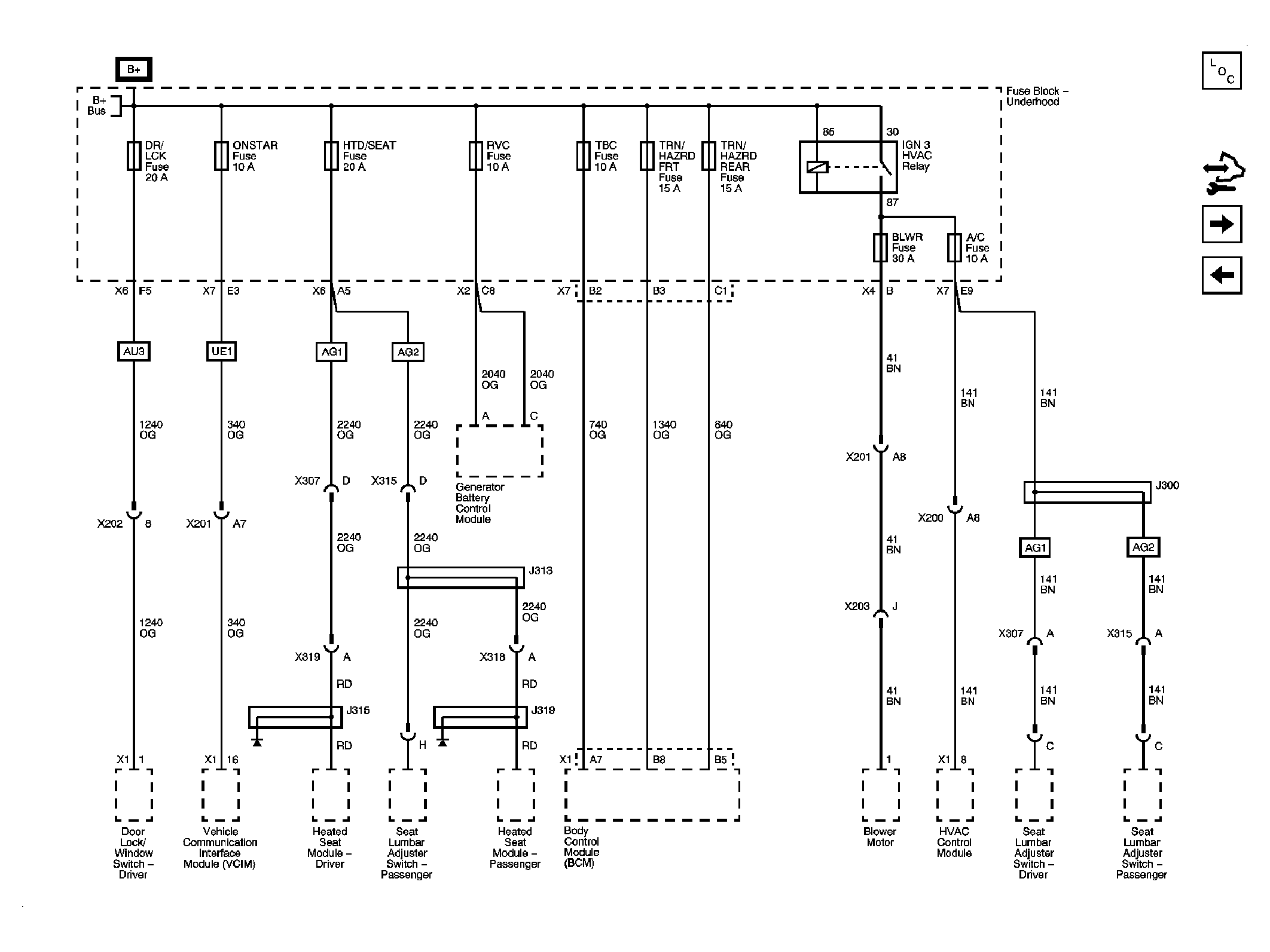

Fig 3: A/C, BLWR, DR/LCK, HTD/SEAT, ONSTAR, RVC, TBC, TRN/HAZRD FRT, and TRN/HAZRD REAR Fuses

Courtesy of GENERAL MOTORS CORP.

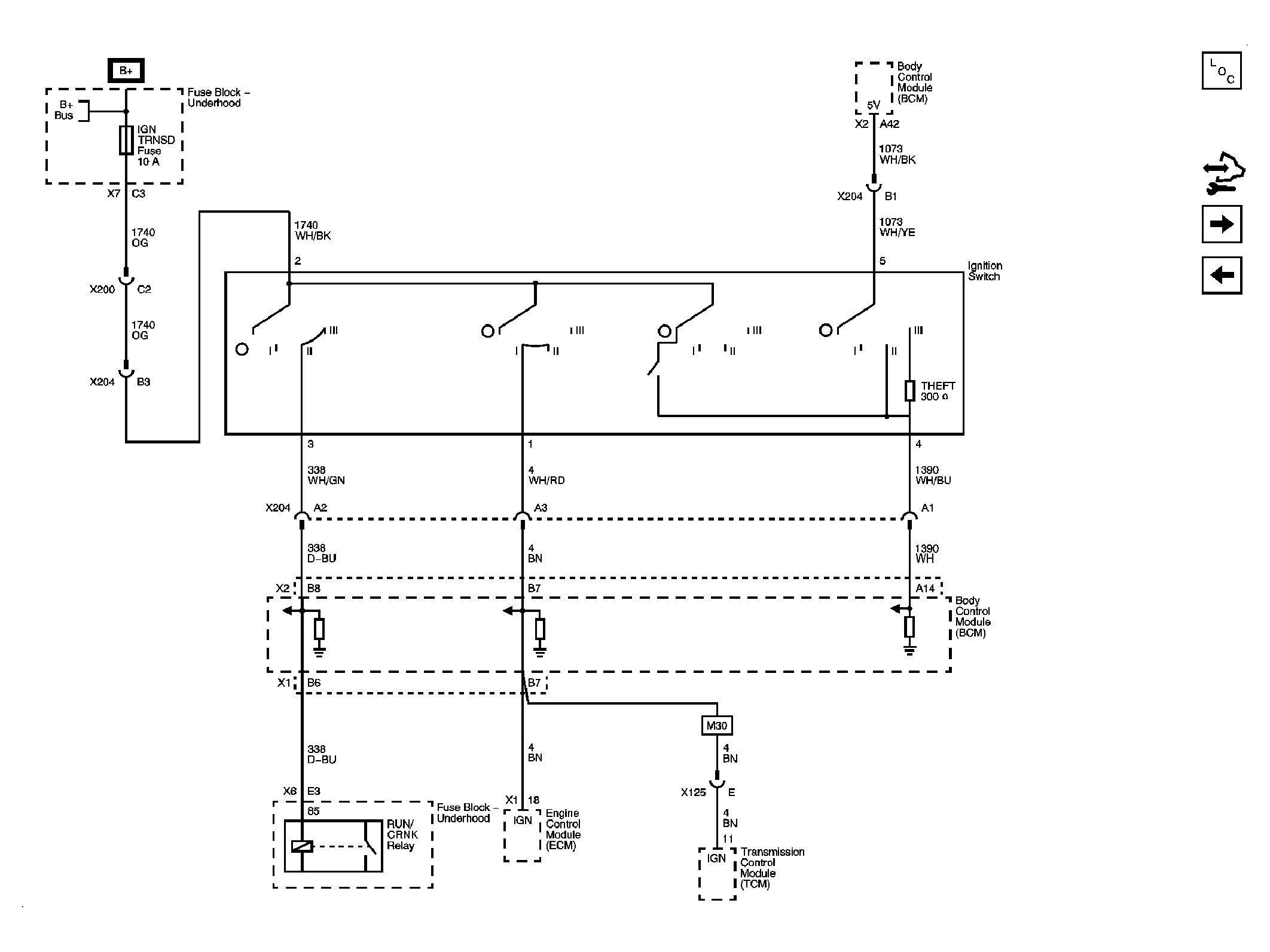

Fig 4: Ignition Switch and IGN TRNSD Fuse

Courtesy of GENERAL MOTORS CORP.

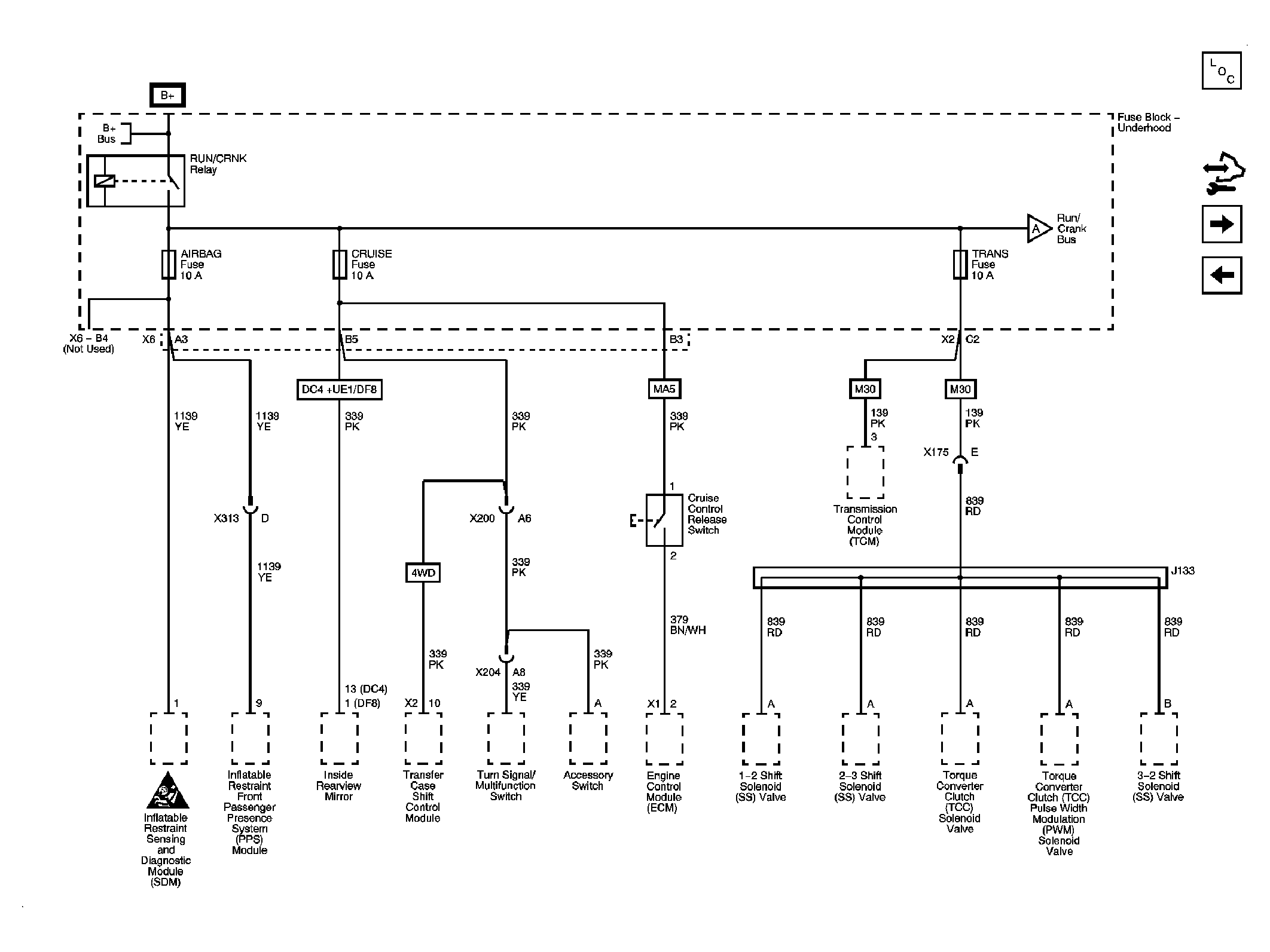

Fig 5: RUN/CRANK RELAY BUS - 1 of 3, AIRBAG, CRUISE, and TRANS Fuses

Courtesy of GENERAL MOTORS CORP.

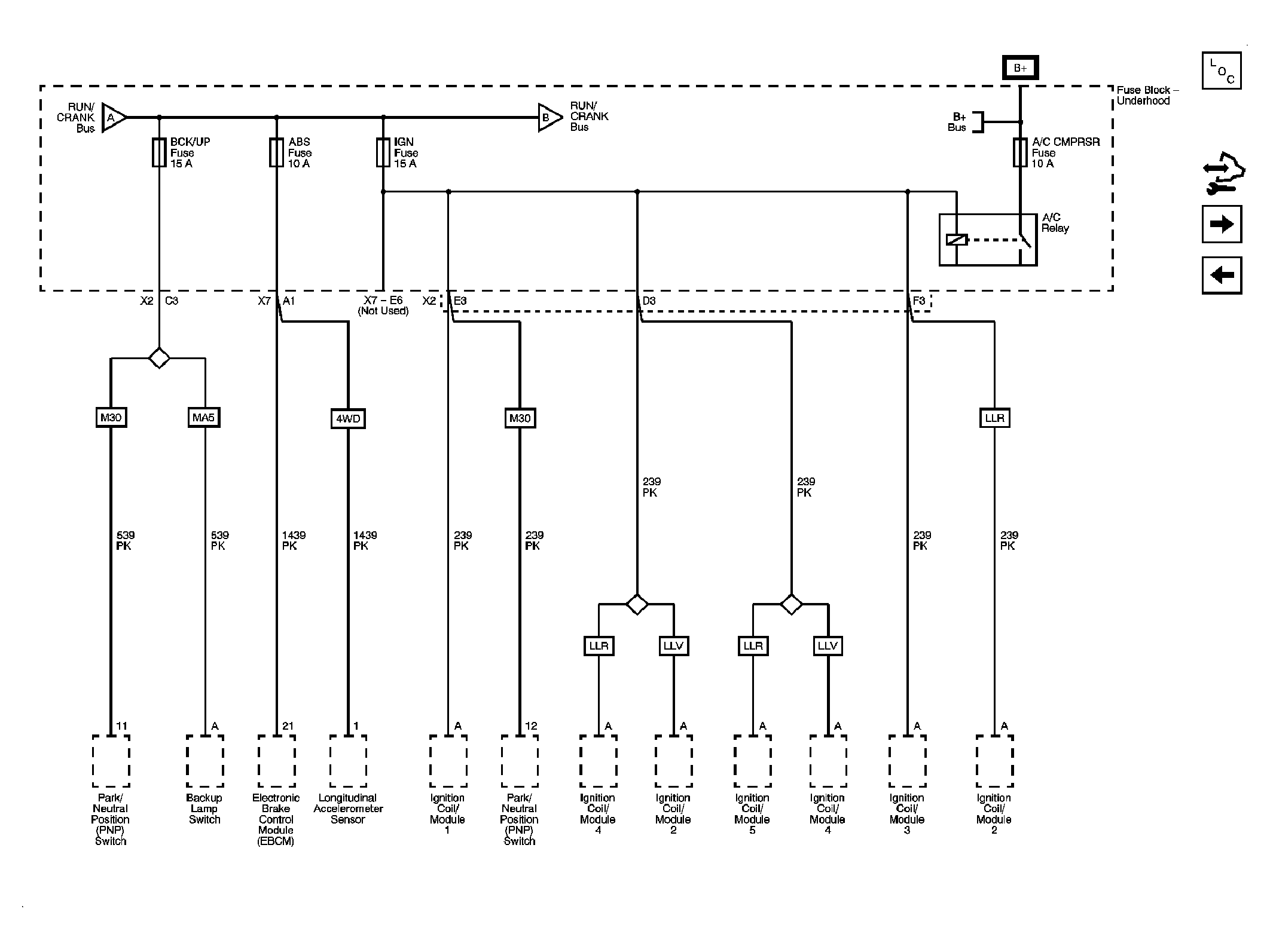

Fig 6: RUN/CRANK RELAY BUS - 2 of 3, ABS, BCK/UP, and IGN Fuses

Courtesy of GENERAL MOTORS CORP.

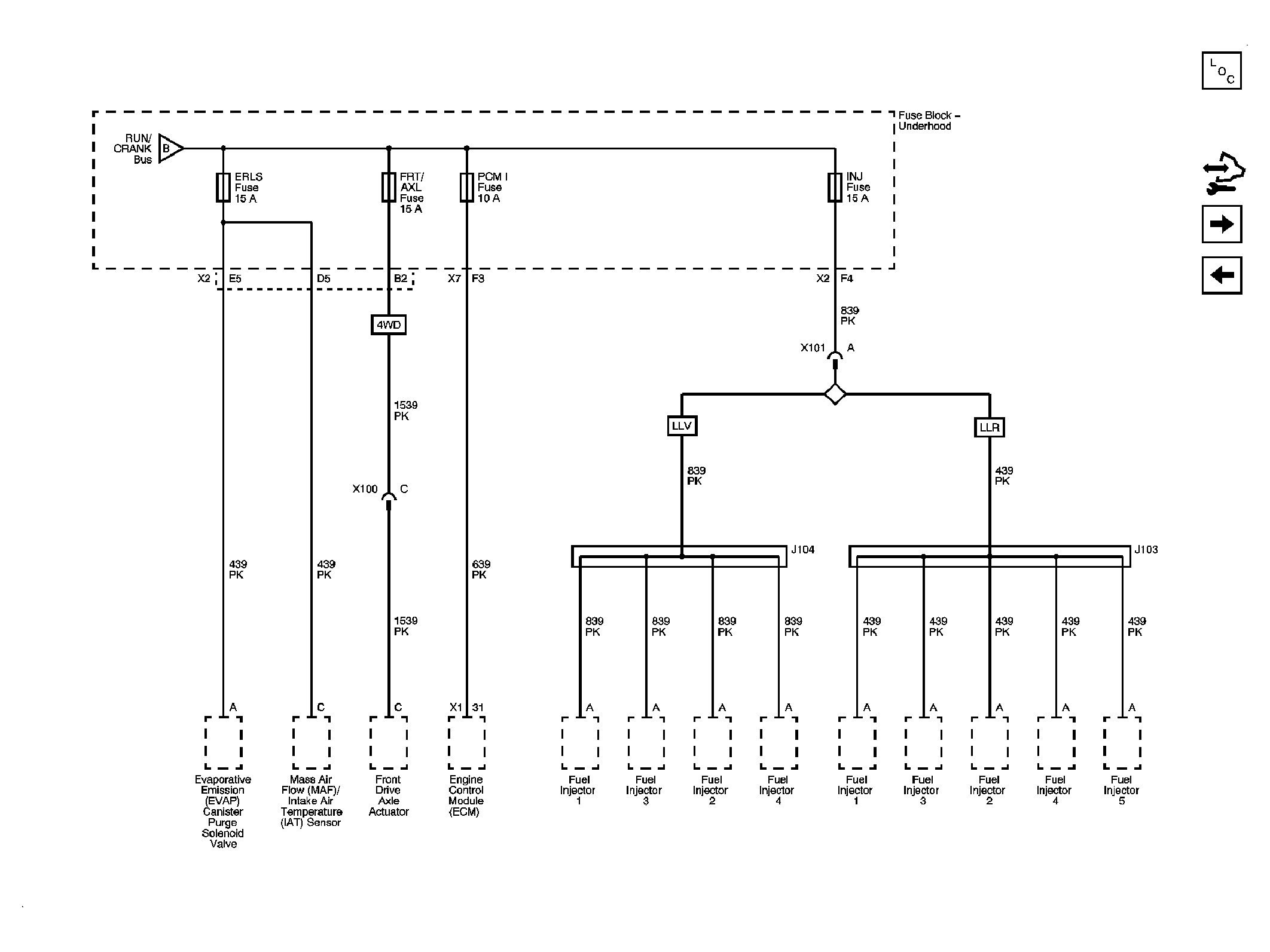

Fig 7: RUN/CRANK RELAY BUS - 3 of 3, ERLS, FRT AXL, INJ, and PCM I Fuses

Courtesy of GENERAL MOTORS CORP.

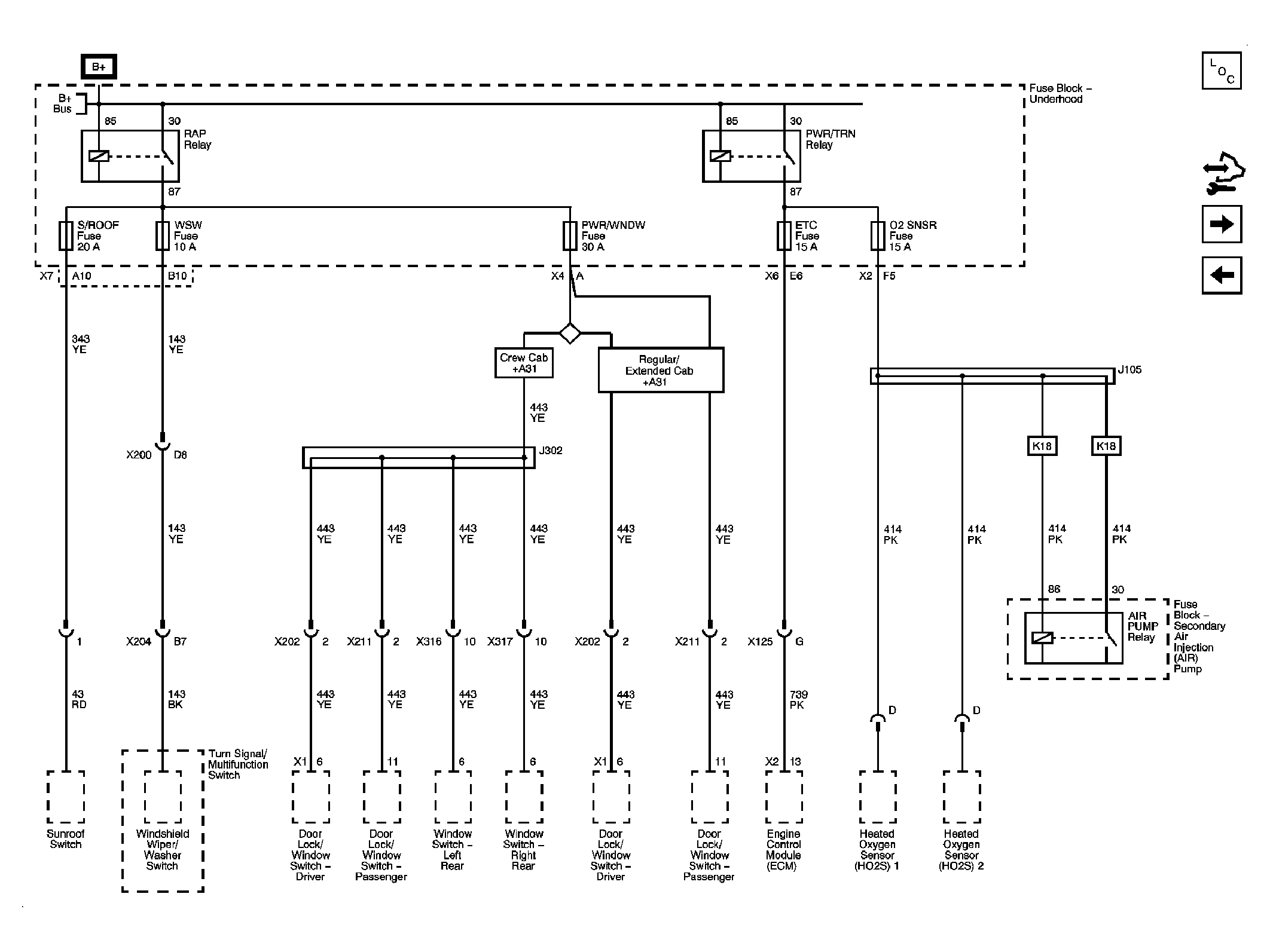

Fig 8: ETC, O2 SNSR, PWR/WNDW, S/ROOF, and WSW Fuses

Courtesy of GENERAL MOTORS CORP.

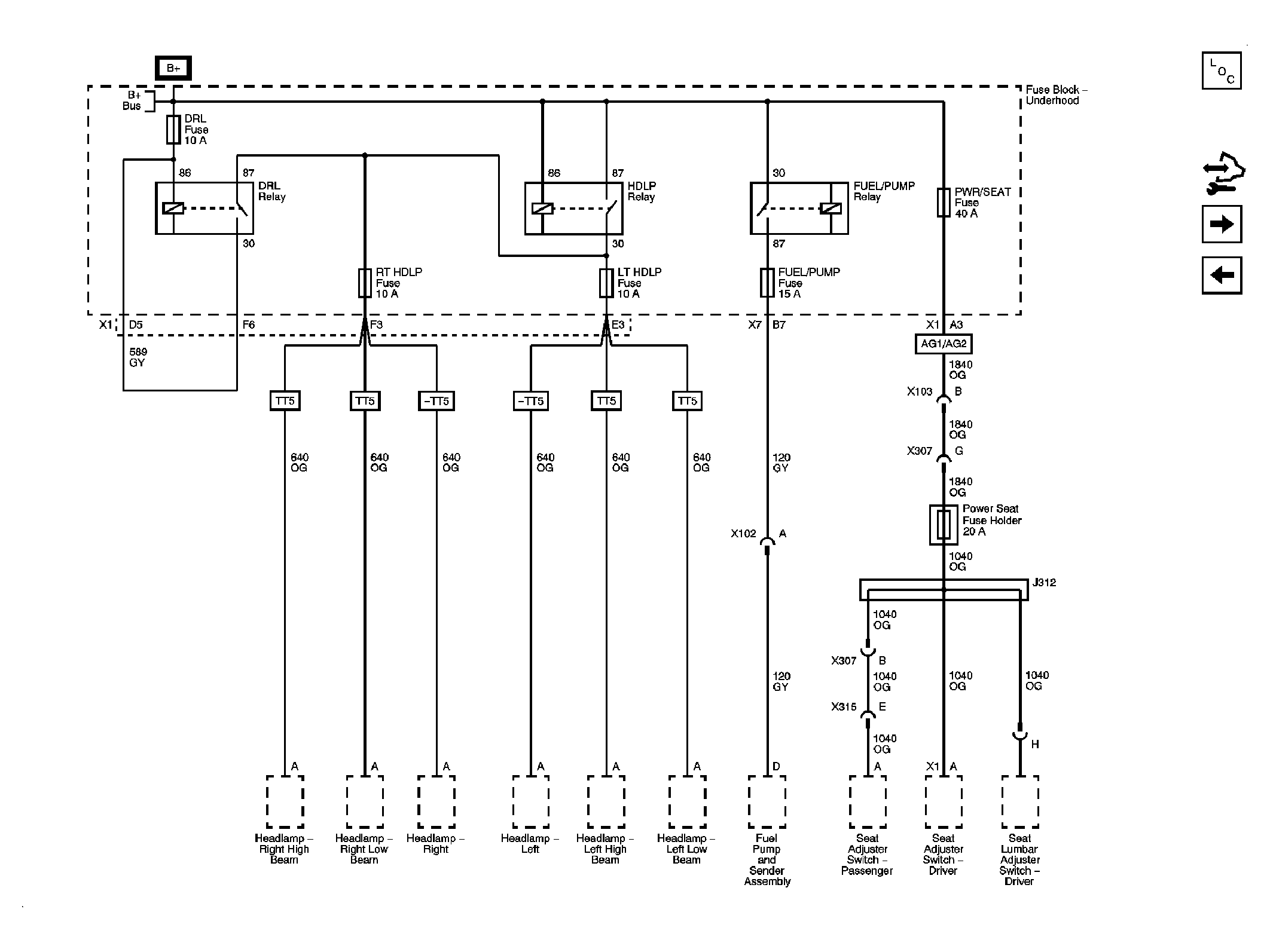

Fig 9: DRL, FUEL/PUMP, PWR/SEAT, LT HDLP, and RT HDLP Fuses

Courtesy of GENERAL MOTORS CORP.

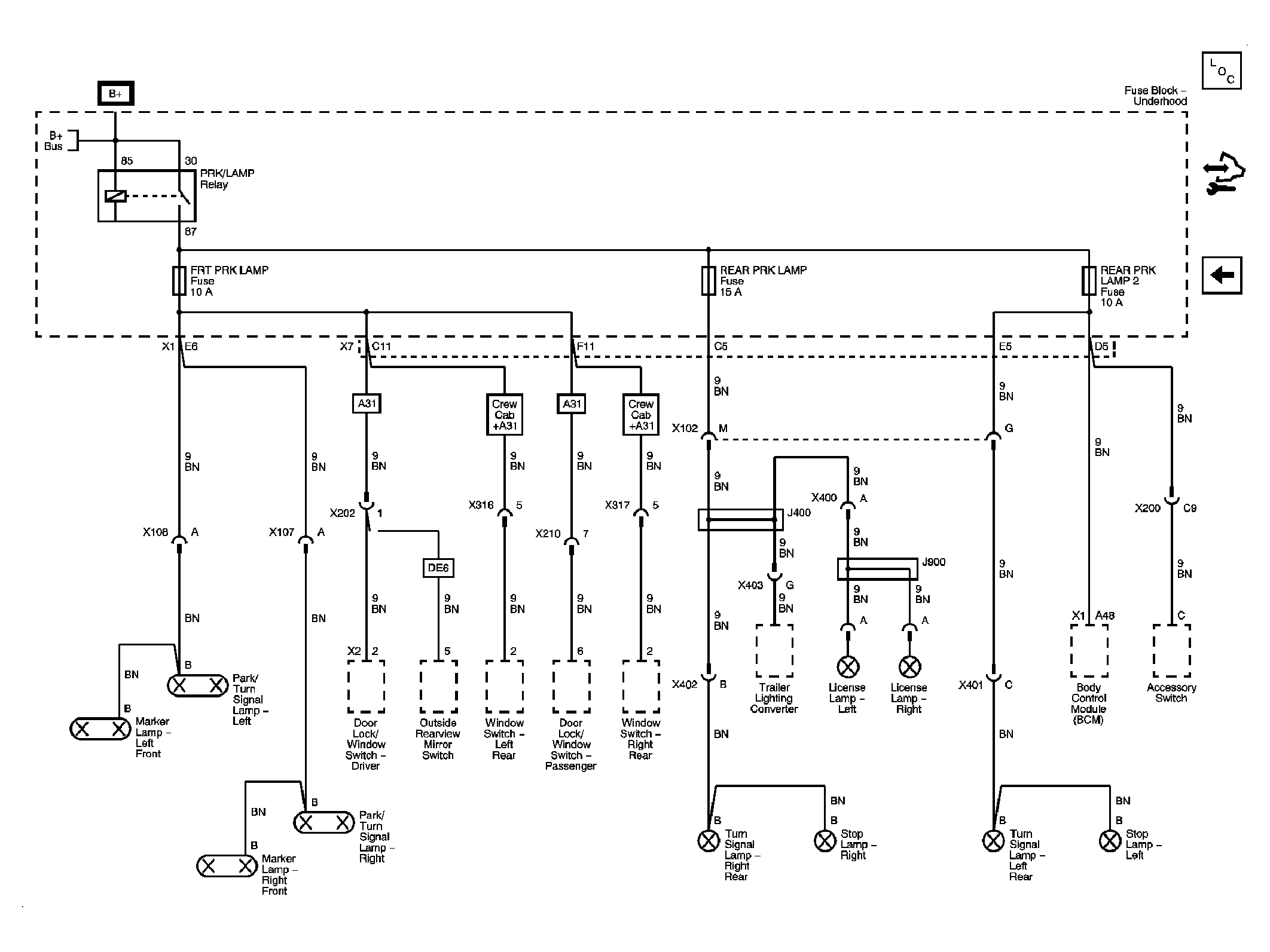

Fig 10: FRT PRK LAMP, REAR PRK LAMP, and REAR PRK LAMP 2 Fuses

Courtesy of GENERAL MOTORS CORP.
