Ground Distribution Schematics

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

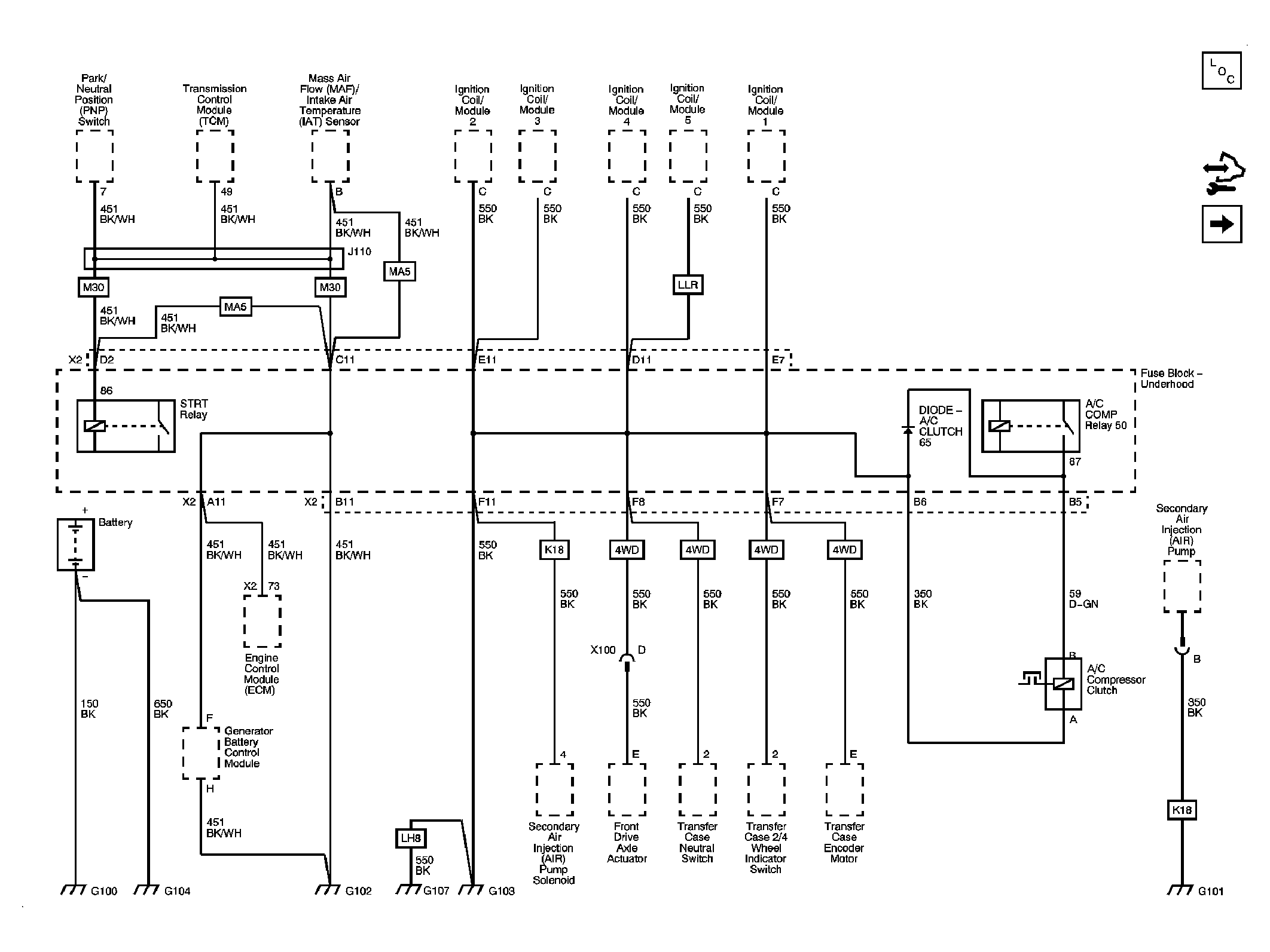

Fig 1: G100, G101, G102, G103, and G104

Courtesy of GENERAL MOTORS CORP.

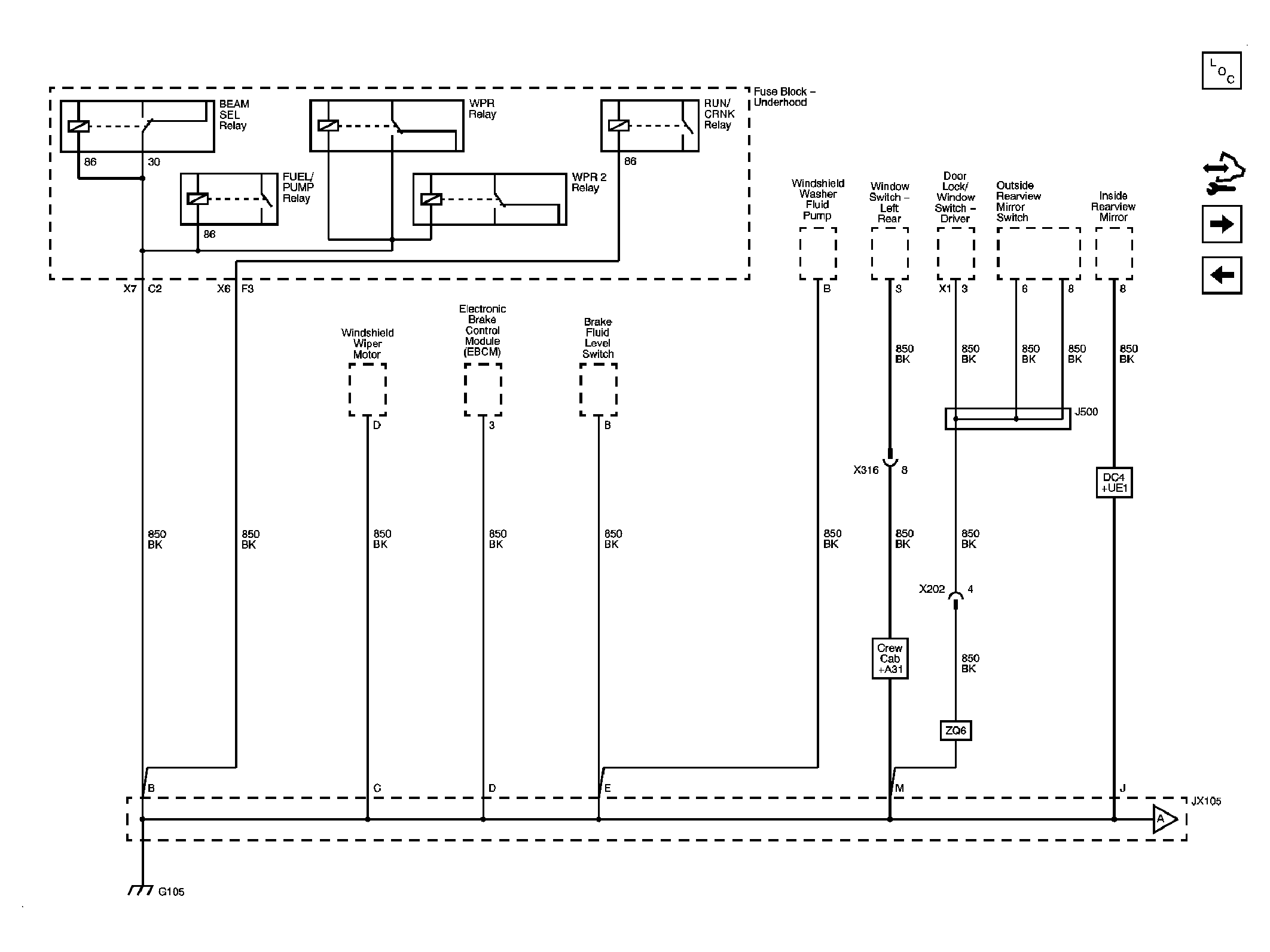

Fig 2: G105 - 1 of 2

Courtesy of GENERAL MOTORS CORP.

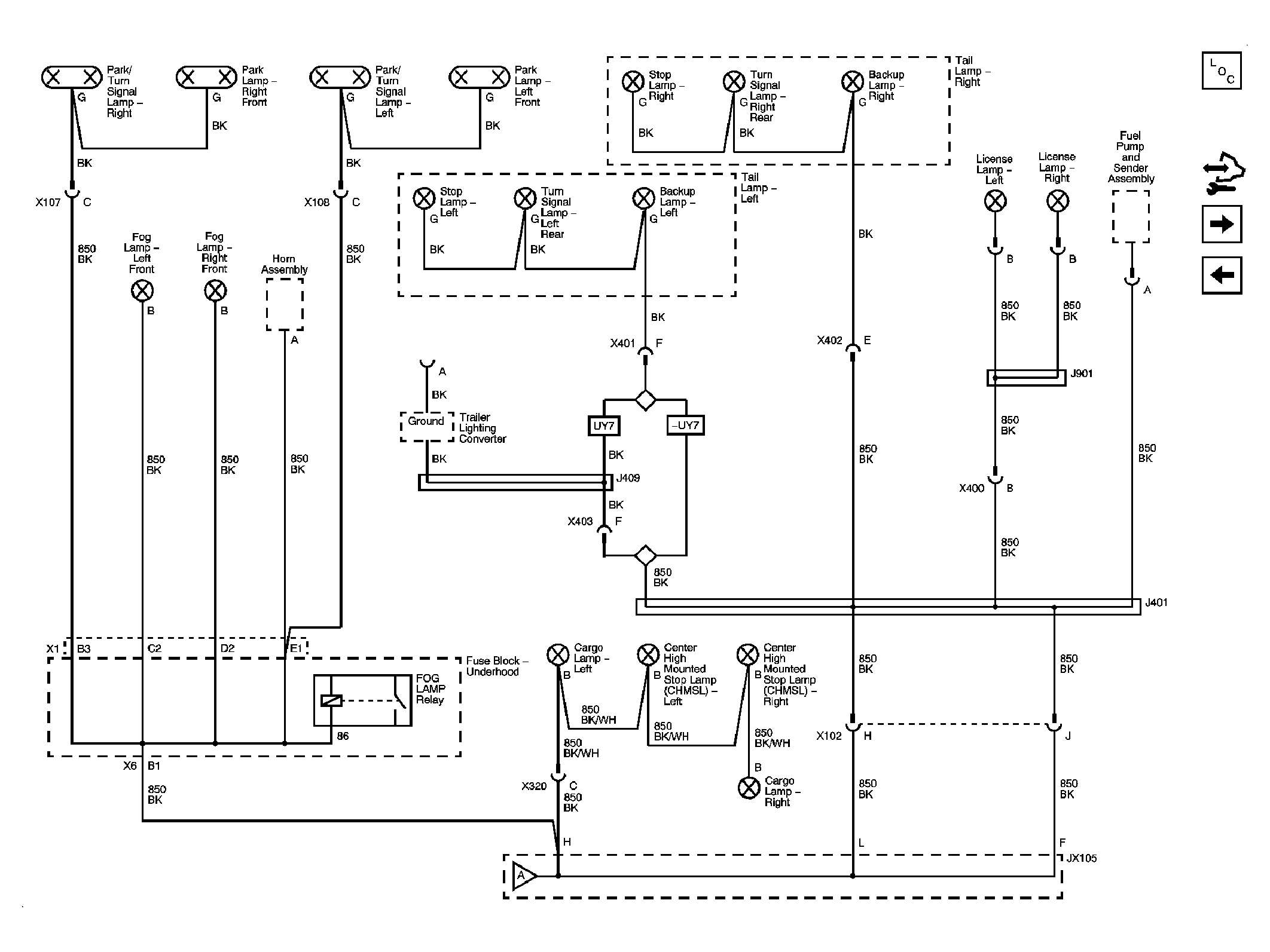

Fig 3: G105 - 2 of 2

Courtesy of GENERAL MOTORS CORP.

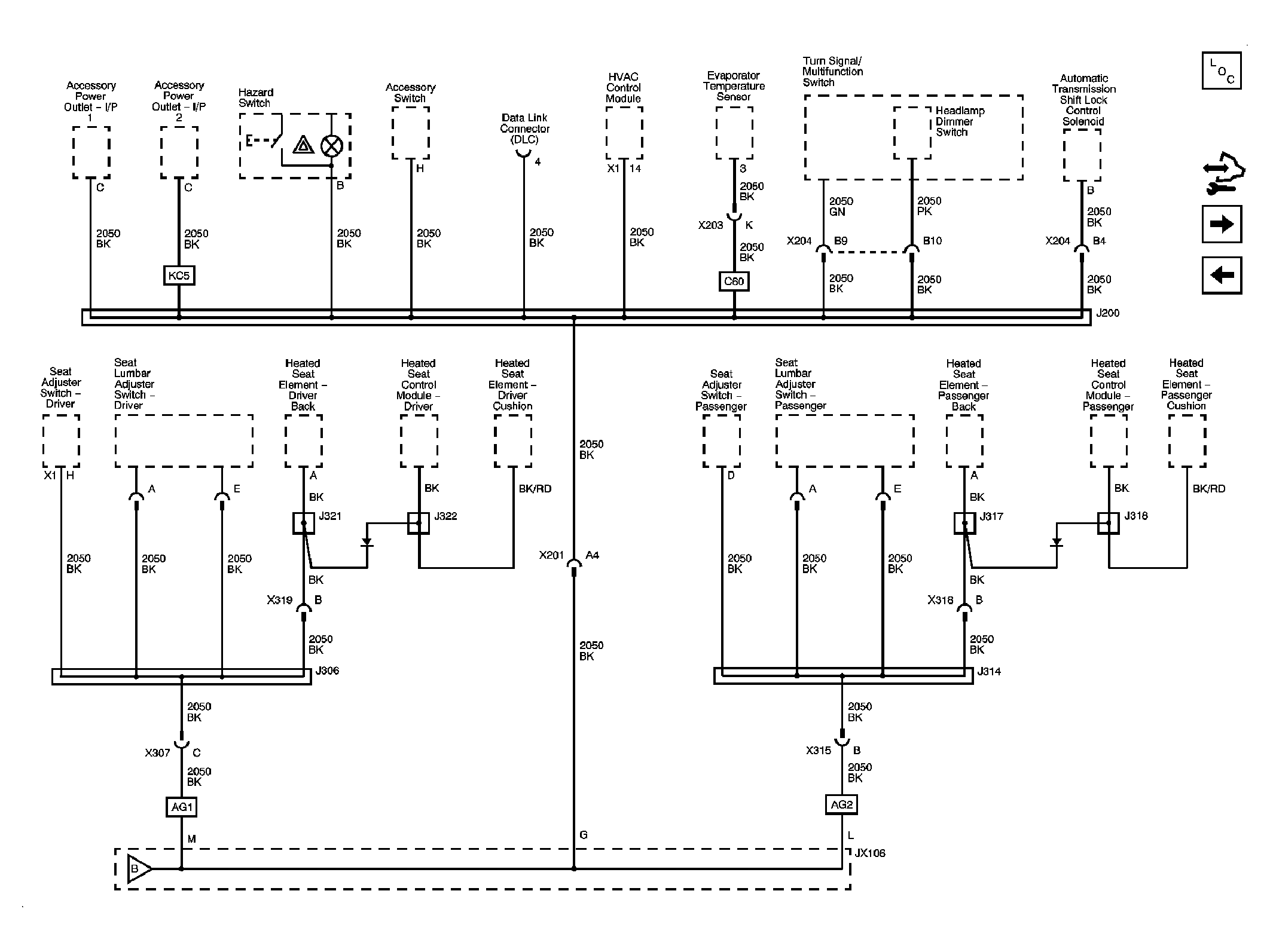

Fig 4: G106 - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 5: G106 - 2 of 2

Courtesy of GENERAL MOTORS CORP.

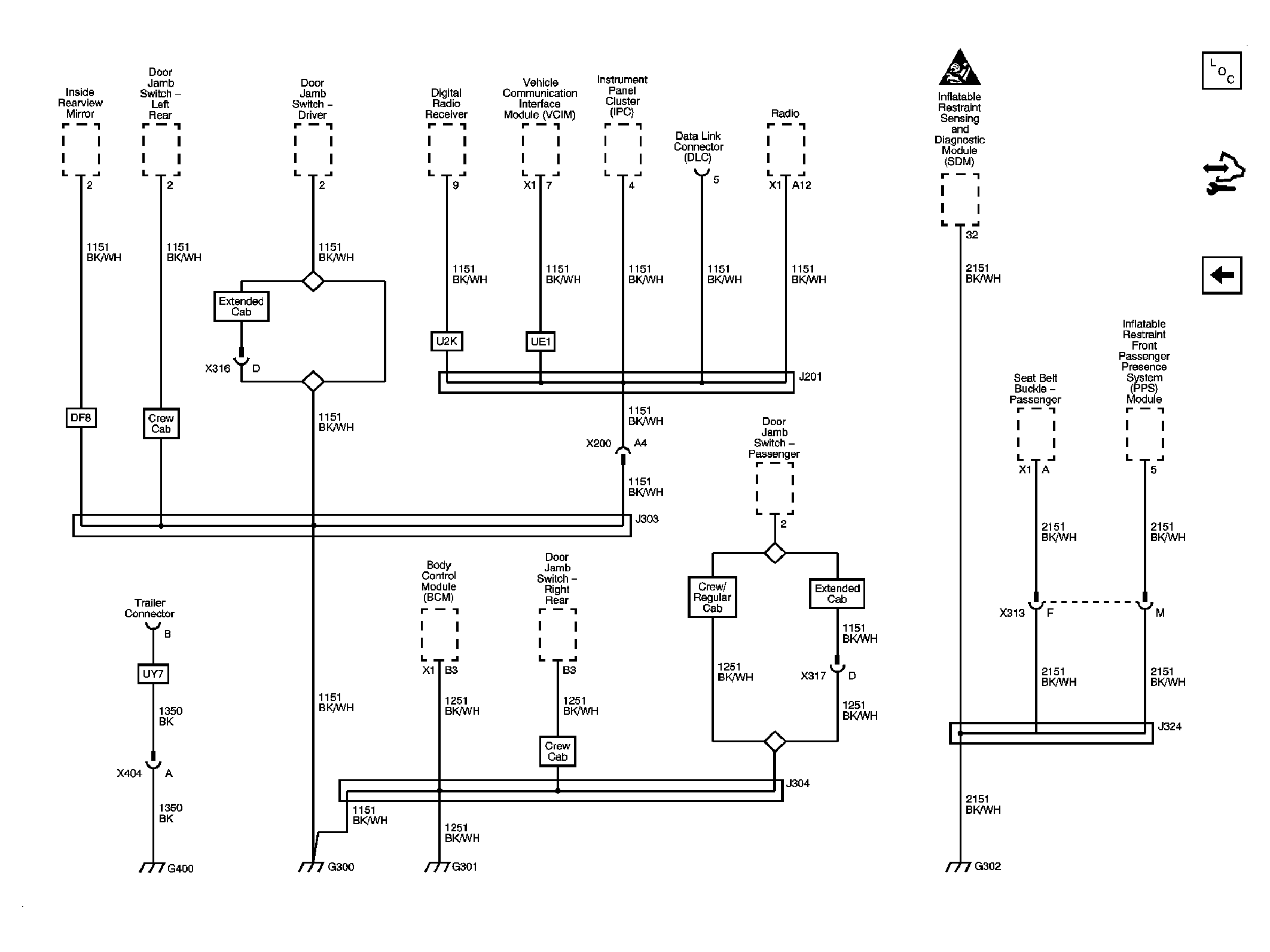

Fig 6: G300, G301, and G302

Courtesy of GENERAL MOTORS CORP.
