Cable Installation - Shift Control End

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

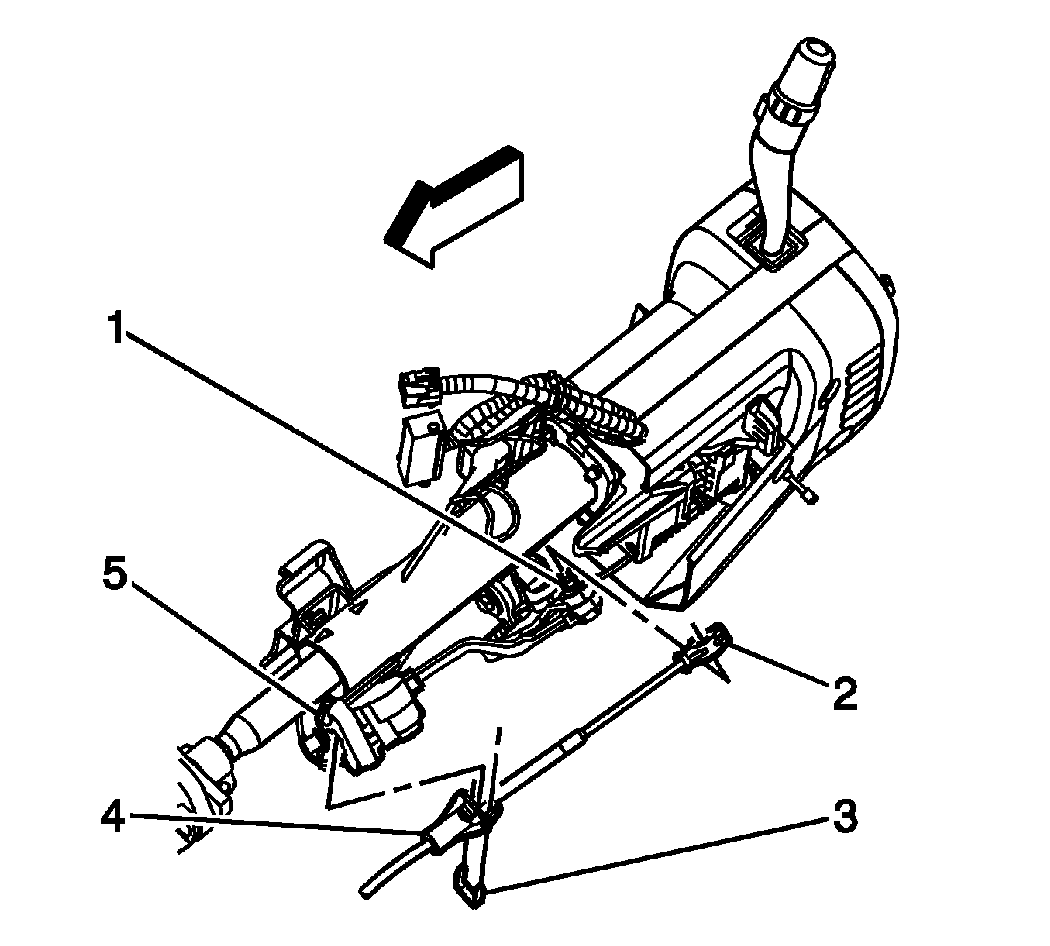

Fig 1: View Of Range Selector Cable & Steering Column Bracket

Courtesy of GENERAL MOTORS CORP.

Install the range selector cable (4) to the steering column bracket (5).
Install the retainer (3) to the range selector cable (4).
Push the range selector cable end (2) onto the range selector lever ball stud (1) to secure.

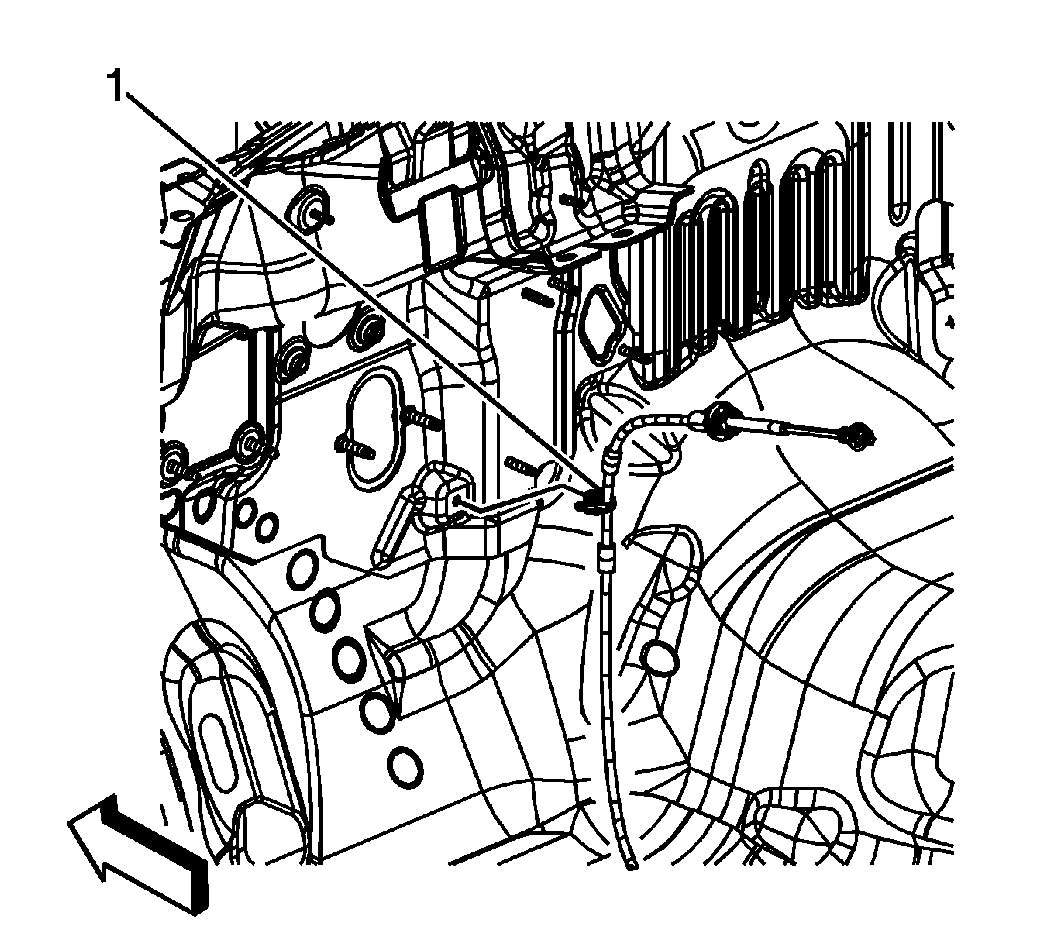

Fig 2: Cable & Retainer

Courtesy of GENERAL MOTORS CORP.

Connect the range selector cable retainer (2) to the lower dash panel (1).

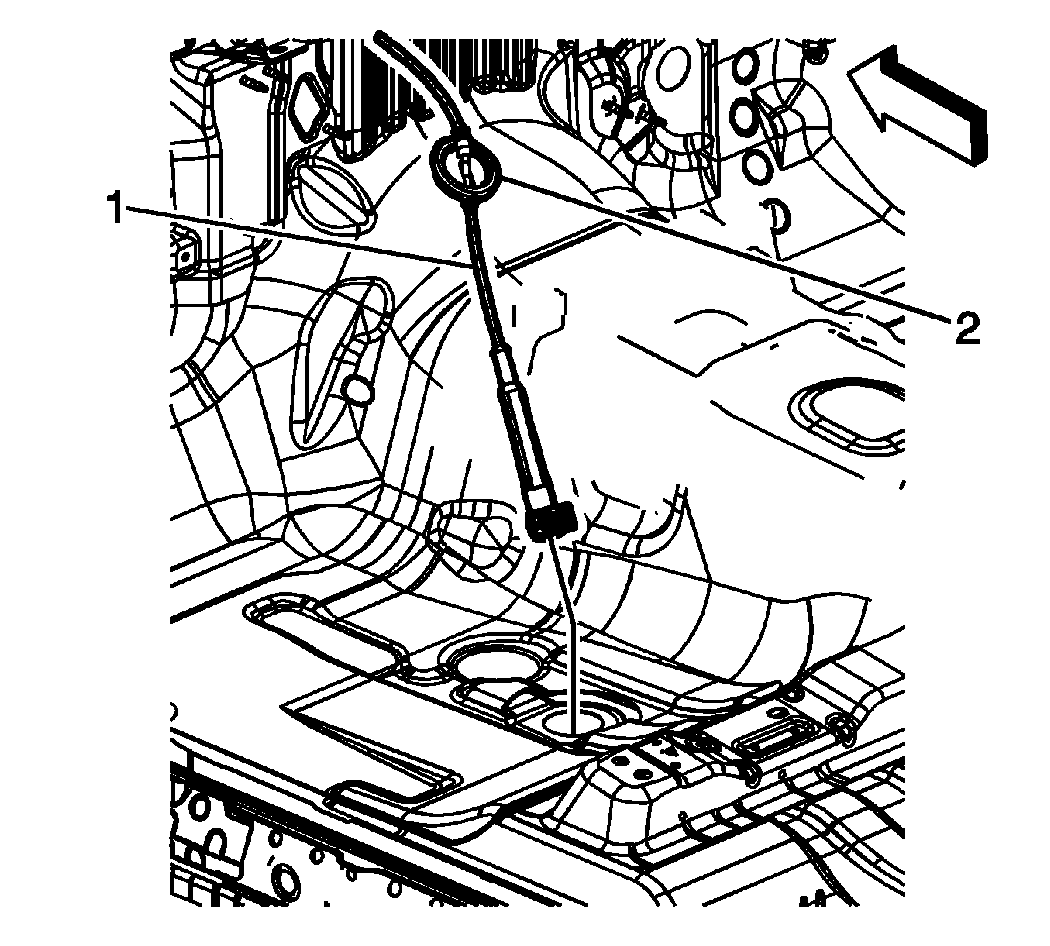

Fig 3: Cable & Gromet

Courtesy of GENERAL MOTORS CORP.

Push the range selector cable down through the floor panel (2) and seat the cable grommet (1).
Reposition the drivers side carpet to the floor panel.
Inspect below the accelerator pedal for binding, to ensure full range of motion.
Install the left hinge pillar trim panel. Refer to Body Hinge Pillar Trim Panel Replacement - Left Side .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
