Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Transmission Range Selector Cable Bracket
    GM1302087Courtesy of GENERAL MOTORS CORP.
  1. Position the transmission range selector cable bracket to the transmission.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the transmission range selector cable bracket bolts and tighten to 25 N.m (18 lb ft).

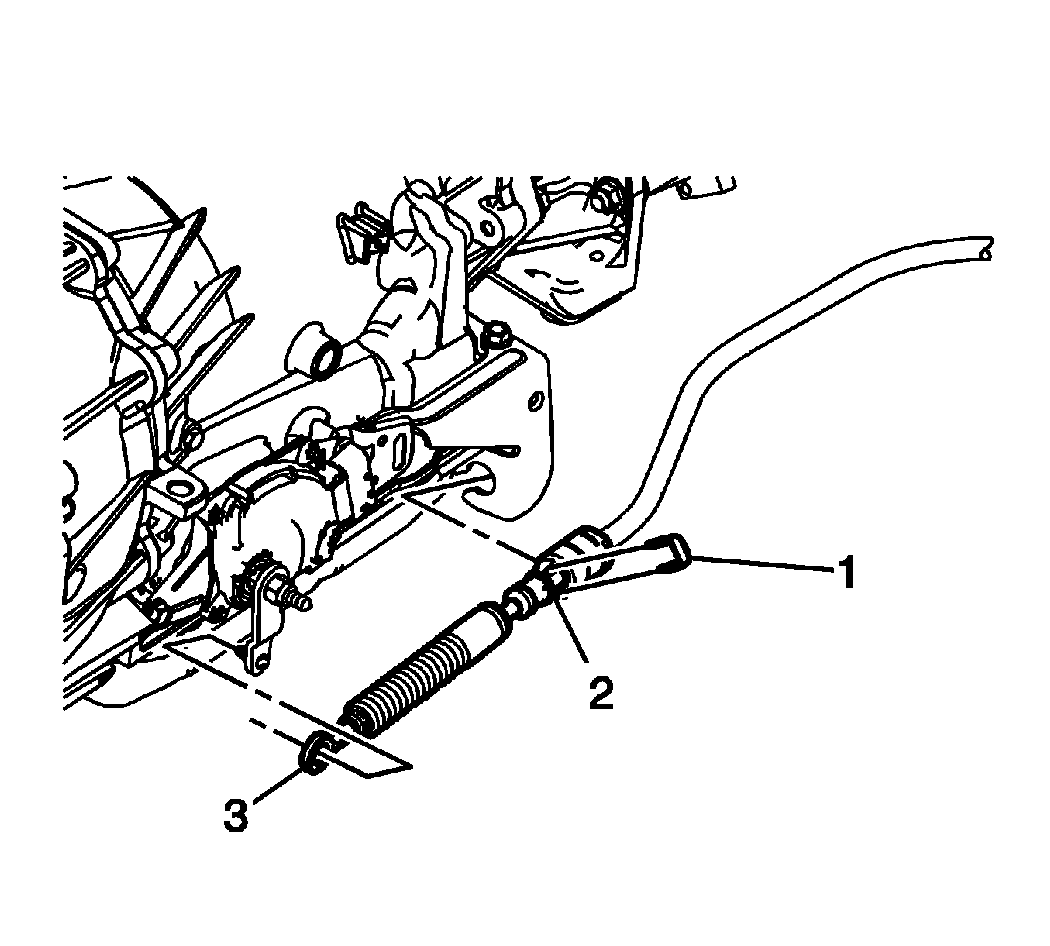

    3. Fig 2: View Of Cable And Mounting
    GM1900891Courtesy of GENERAL MOTORS CORP.
  3. Install the range selector cable (2) to the range selector cable bracket. Ensure the range selector cable retaining tabs fully engage the range selector cable bracket.
  4. Install the retainer (1) to the range selector cable (2).
  5. Connect the range selector cable end (3) to the transaxle range switch lever.

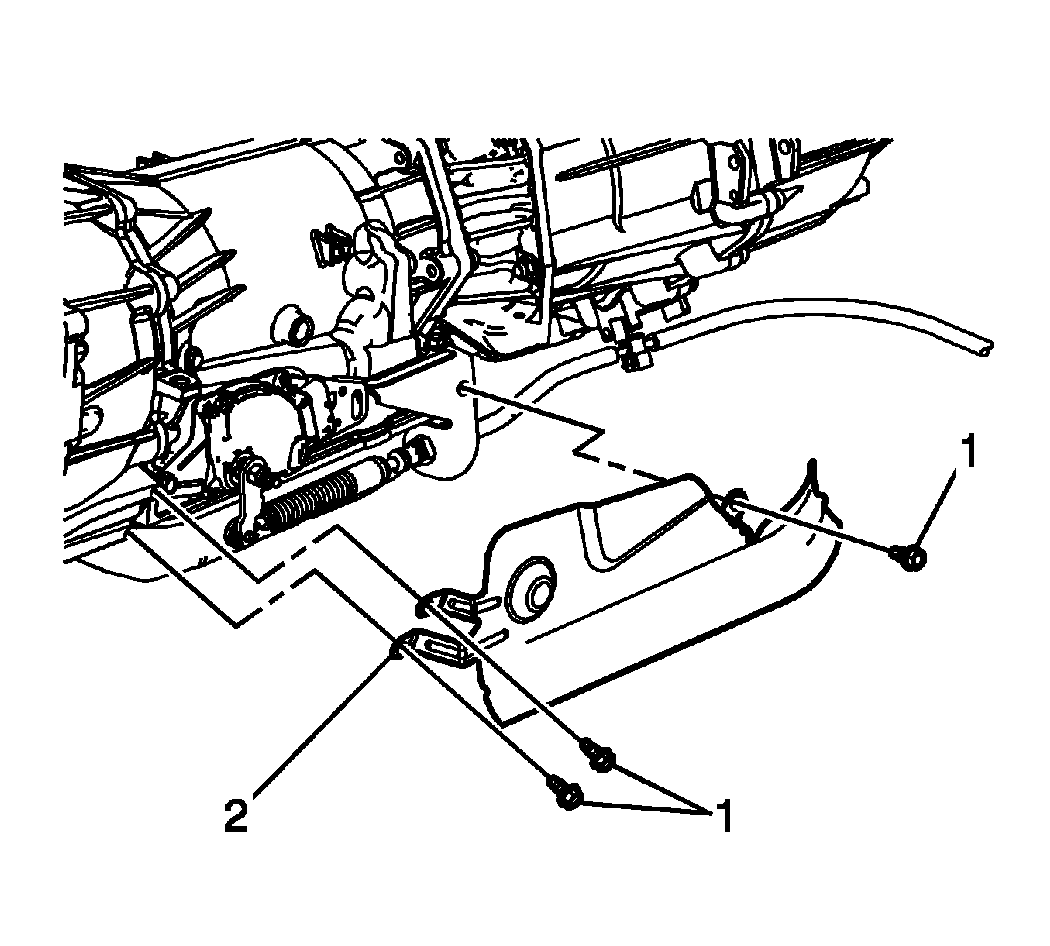

    6. Fig 3: Heat Shield And Bolts
    GM1900888Courtesy of GENERAL MOTORS CORP.
  6. Install the heat shield (2).
  7. Install the heat shield bolts (1) and tighten to 10 N.m (89 lb in).

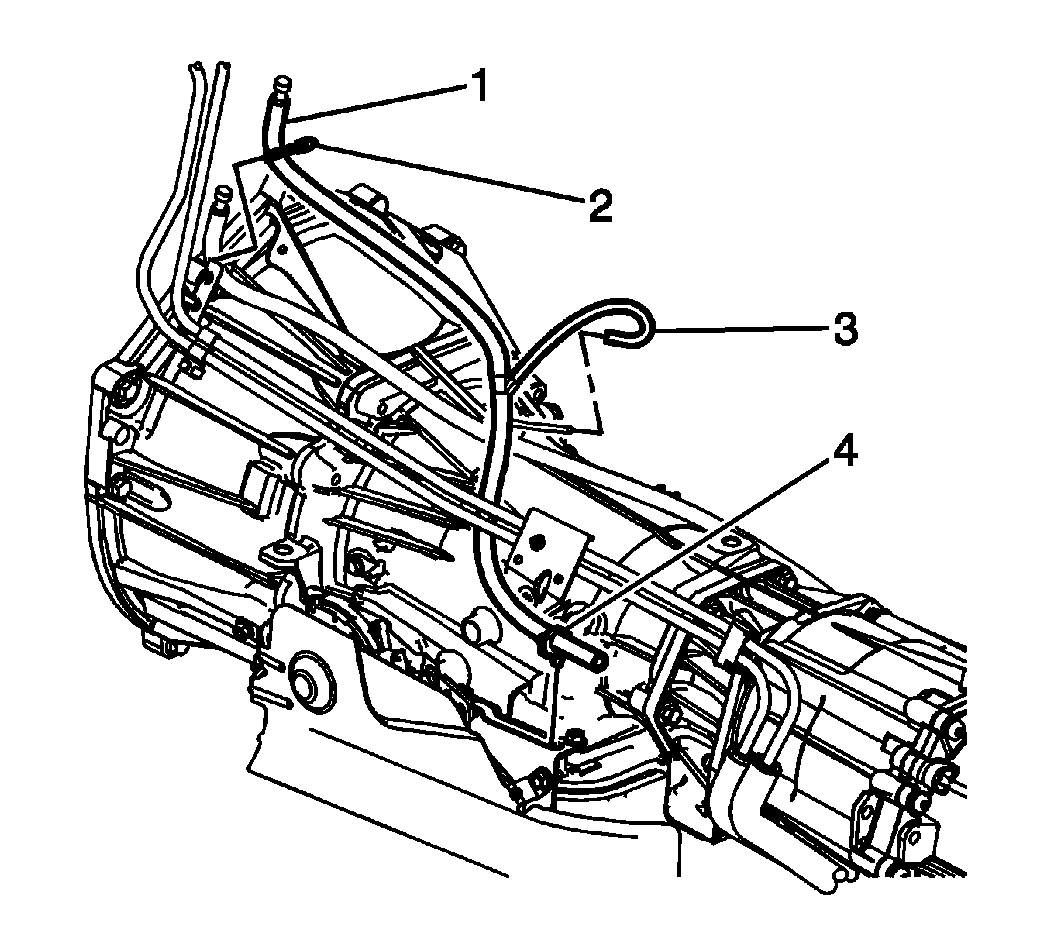

    8. Fig 4: Transmission Vent Hose Retainer
    GM1912460Courtesy of GENERAL MOTORS CORP.
  8. Connect the transmission vent hose retainer (4) to the transmission range selector cable bracket.
  9. Adjust the automatic transmission range selector cable. Refer to Range Selector Lever Cable Adjustment (5.3L)  or Range Selector Lever Cable Adjustment (2.9L and 3.7L) .
  10. Lower the vehicle.
