Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Locating Valve Body Check Balls
    GM676923Courtesy of GENERAL MOTORS CORP.
  1. Install the checkballs (1-7) in the valve body.

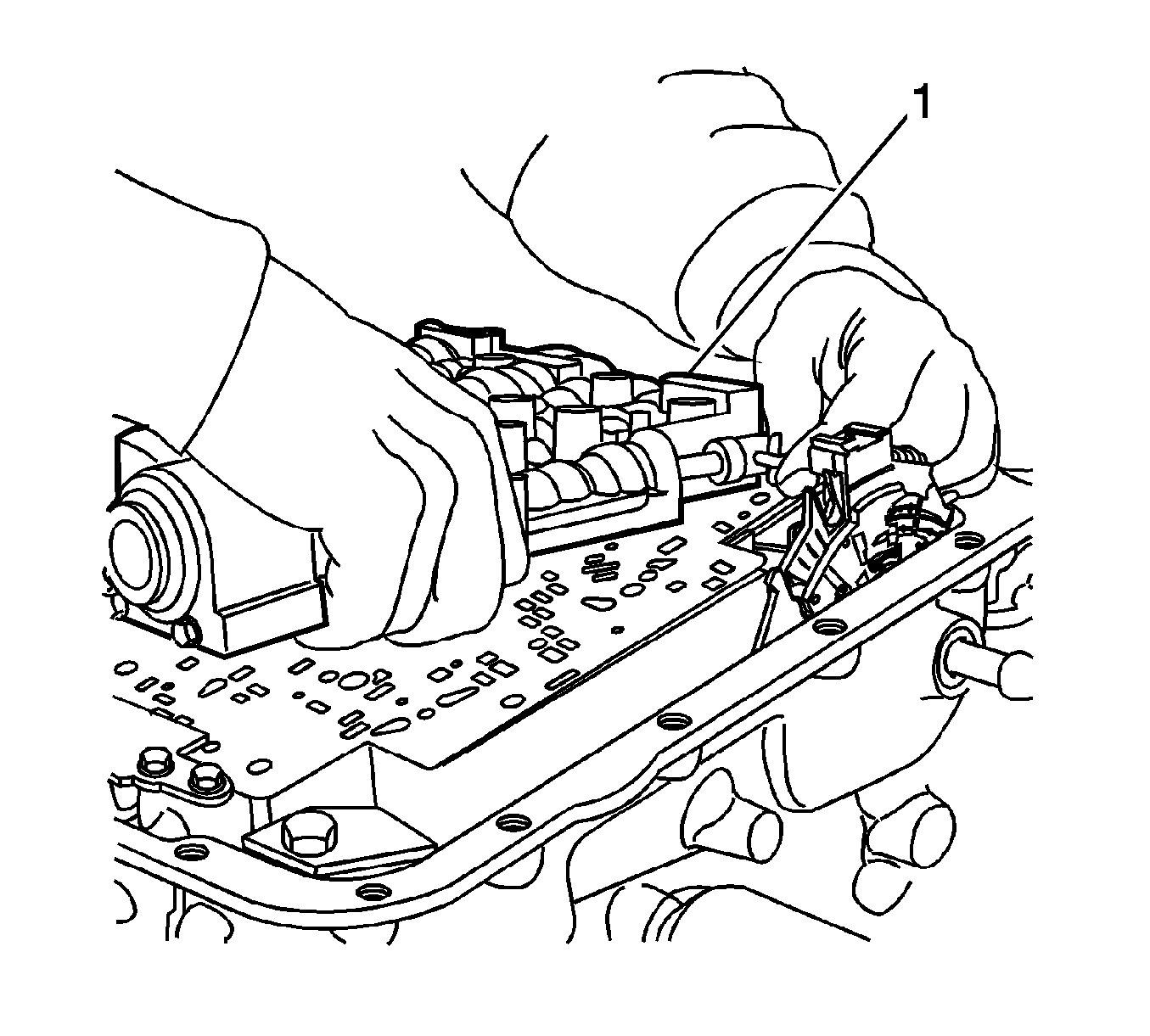

    2. Fig 2: Identifying Manual Valve Link To Manual Valve
    GM2035547Courtesy of GENERAL MOTORS CORP.
  2. Install the control valve body to the transmission case while simultaneously connecting the manual valve link to the manual valve.
  3. Verify that the manual valve link is installed properly to the inside detent lever and the manual valve.
    4. Fig 3: Installing One Bolt (M6 X 1.0 X 47.5) Hand Tight In Center Of Valve Body
    GM670828Courtesy of GENERAL MOTORS CORP.
  4. Install one bolt (M6 X 1.0 X 47.5) hand tight in the center (1) of the valve body to hold it in place.
    5. Fig 4: Identifying Bolt Locations
    GM2035541Courtesy of GENERAL MOTORS CORP.
  5. Install the 12 valve body bolts (62), 2 bolts (59) and 3 bolts (120) that are shown only.
  6. Finger tighten the bolts.

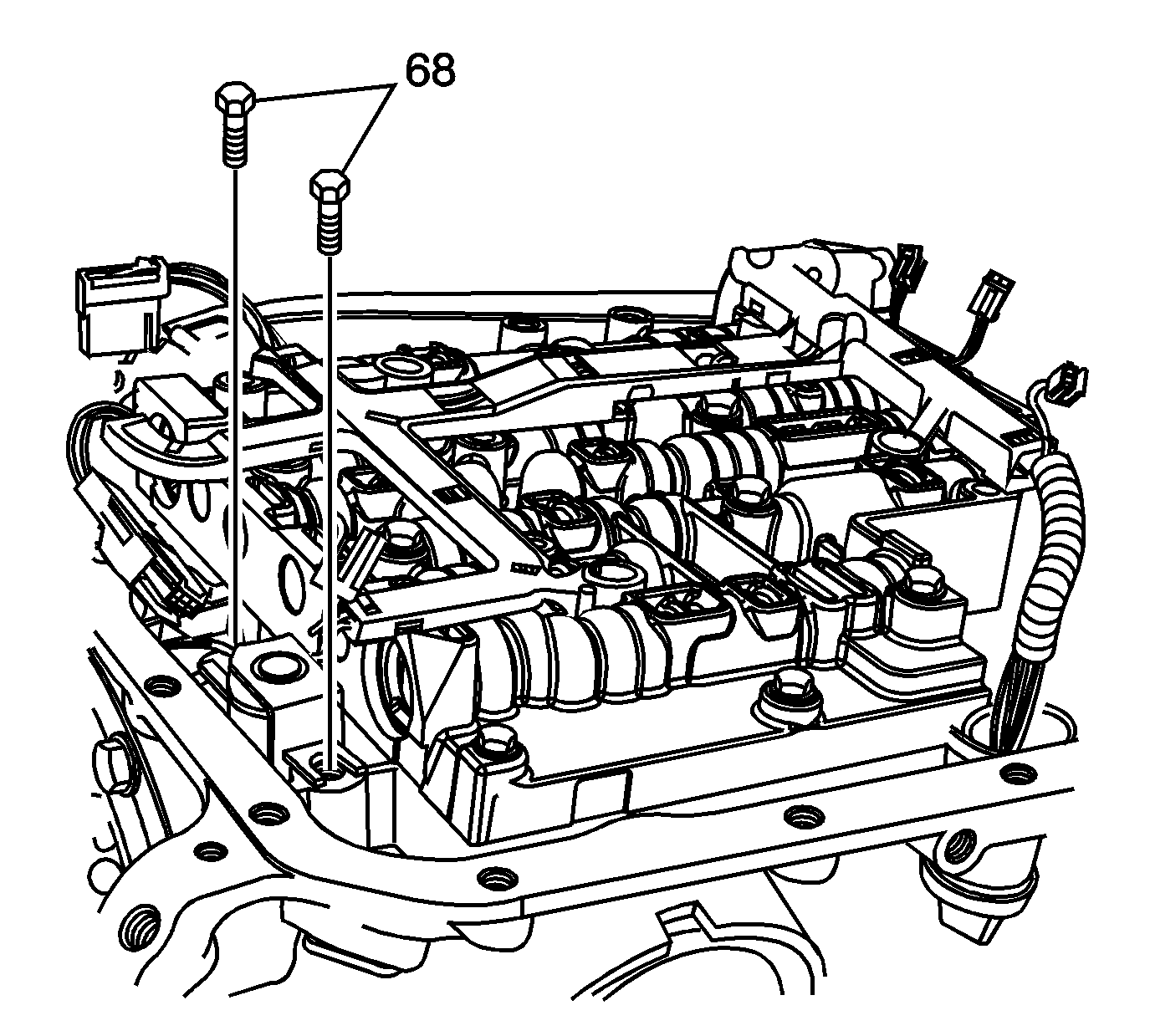

    7. Fig 5: TCC Solenoid Retaining Bolts
    GM2035536Courtesy of GENERAL MOTORS CORP.
  7. Install the transmission wiring harness on the valve body.
    8. CAUTION: Refer to Fastener Caution .
  8. Install the TCC solenoid valve and bolts (68).

    Tighten the bolts to 814 N.m (610 lb ft).

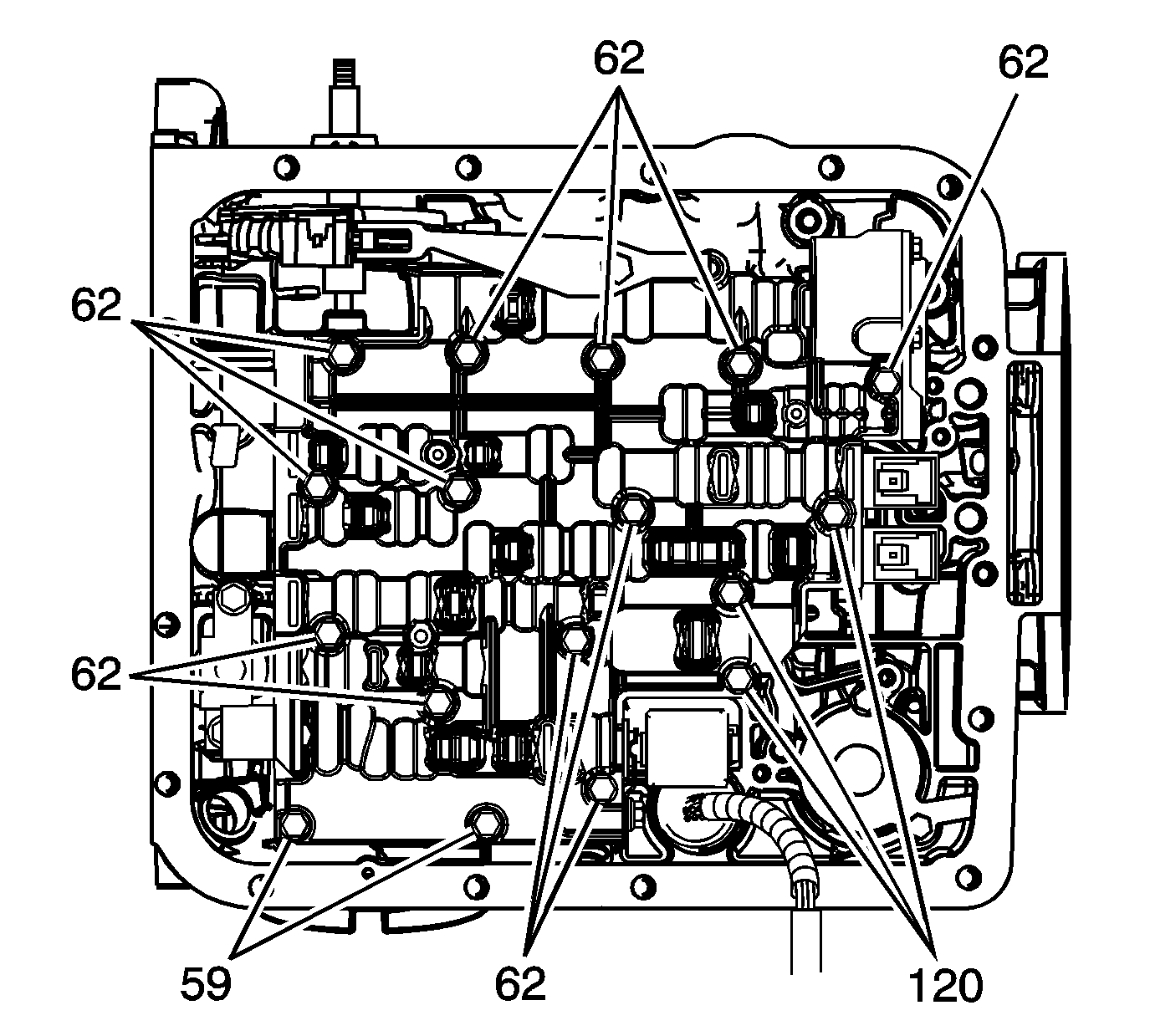

    9. Fig 6: Identifying Bolt Locations
    GM2035548Courtesy of GENERAL MOTORS CORP.
    CAUTION: Do not over-tighten the bolts. Over-tightening the bolts will distort the valve bores. Begin tightening from the center of the valve body tighten the bolts in a outward direction.
  9. Inspect the ensure all of the valve body bolts are in the correct location. Each bolt number refers to a specific size, as indicated in the following list:
    • 59 M6 x 1.0 x 35.0 (Qty: 2)
    • 62 M6 x 1.0 x 47.5 (Qty: 12)
    • 120 M6 x 1.0 x 54.4 (Qty: 3)
  10. Tighten the bolts from the center of the valve body working your way out in a spiral pattern to the outside edge.

    Tighten the bolts to 814 N.m (610 lb ft).

    11. Fig 7: View Of TCC/PWM Solenoid & Clip
    GM405022Courtesy of GENERAL MOTORS CORP.
  11. Install the TCC PWM solenoid valve (396) and the solenoid retainer (395).

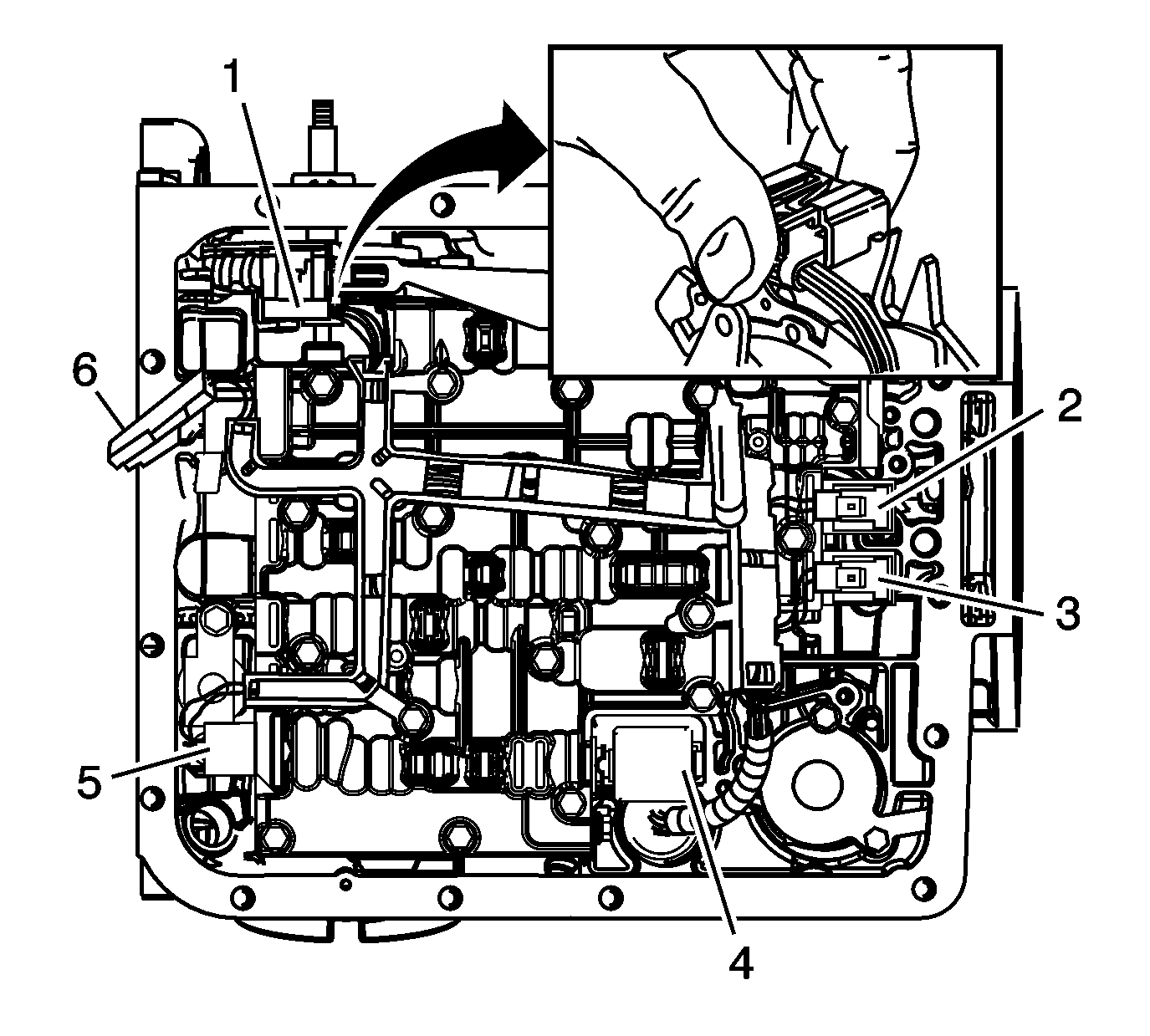

    12. Fig 8: Electrical Connectors
    GM2035534Courtesy of GENERAL MOTORS CORP.
  12. Snap the wiring harness in place on the valve body bolts. Ensure the harness loom tab is located under the transmission fluid pressure (TFP) switch.
  13. Install the wiring connectors to the electrical components (1-6) as indicated in the following list:
    1. The manual shift detent lever with shaft position switch assembly
    2. The 1-2 shift solenoid
    3. The 2-3 shift solenoid
    4. The pressure control solenoid (PCS)
    5. The TCC PWM solenoid
    6. The input speed sensor (ISS)
  14. Install the transmission oil pan and filter. Refer to Automatic Transmission Fluid and Filter Replacement .
  15. Lower the vehicle.
  16. Fill the transmission to the proper level with DEXRON® VI transmission fluid. Refer to Transmission Fluid Check .
    17. NOTE: It is recommended that transmission adaptive pressure (TAP) information be reset.
    Resetting the TAP values using a scan tool will erase all learned values in all cells. As a result, the engine control module (ECM), powertrain control module (PCM) or transmission control module (TCM) will need to relearn TAP values. Transmission performance may be affected as new TAP values are learned.
  17. Reset the TAP values. Refer to Transmission Adaptive Functions .
