Manual Detent Spring Installation

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

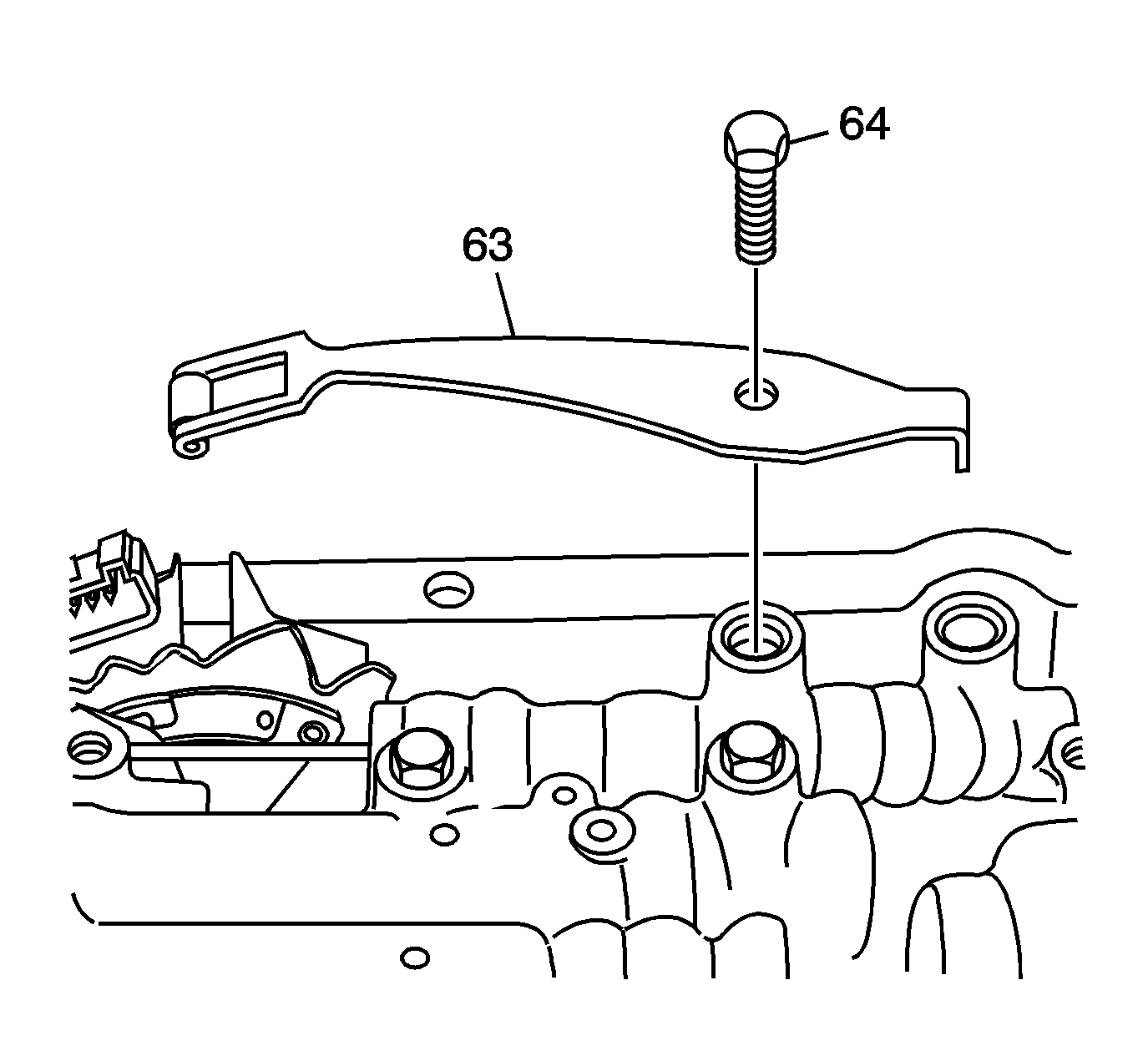

Fig 1: Detent Spring Bolt And Spring Assembly

Courtesy of GENERAL MOTORS CORP.

Inspect the manual detent spring assembly (63) for cracks or damage.
Install the manual detent spring assembly (63).

CAUTION: Refer to Fastener Caution .

Install the manual detent spring bolt (64). Tighten the bolt to 20-27 N.m (15-20 lb ft).
