Starting and Charging Schematics

WARNING: This page is about a different car, the 2009 GMC Canyon and 2009 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

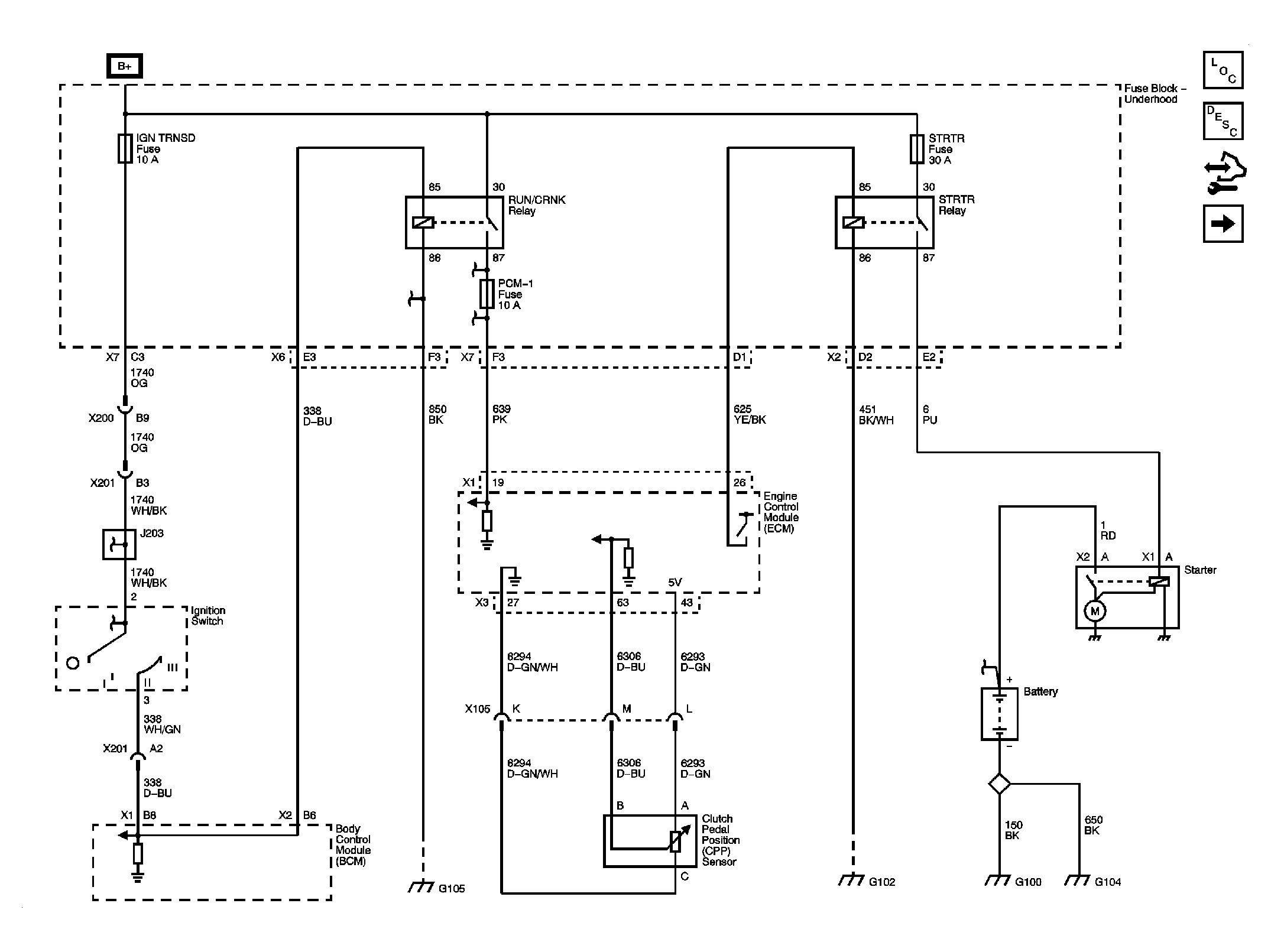

Fig 1: Starting System - MA5
GM2082717Courtesy of GENERAL MOTORS CORP.

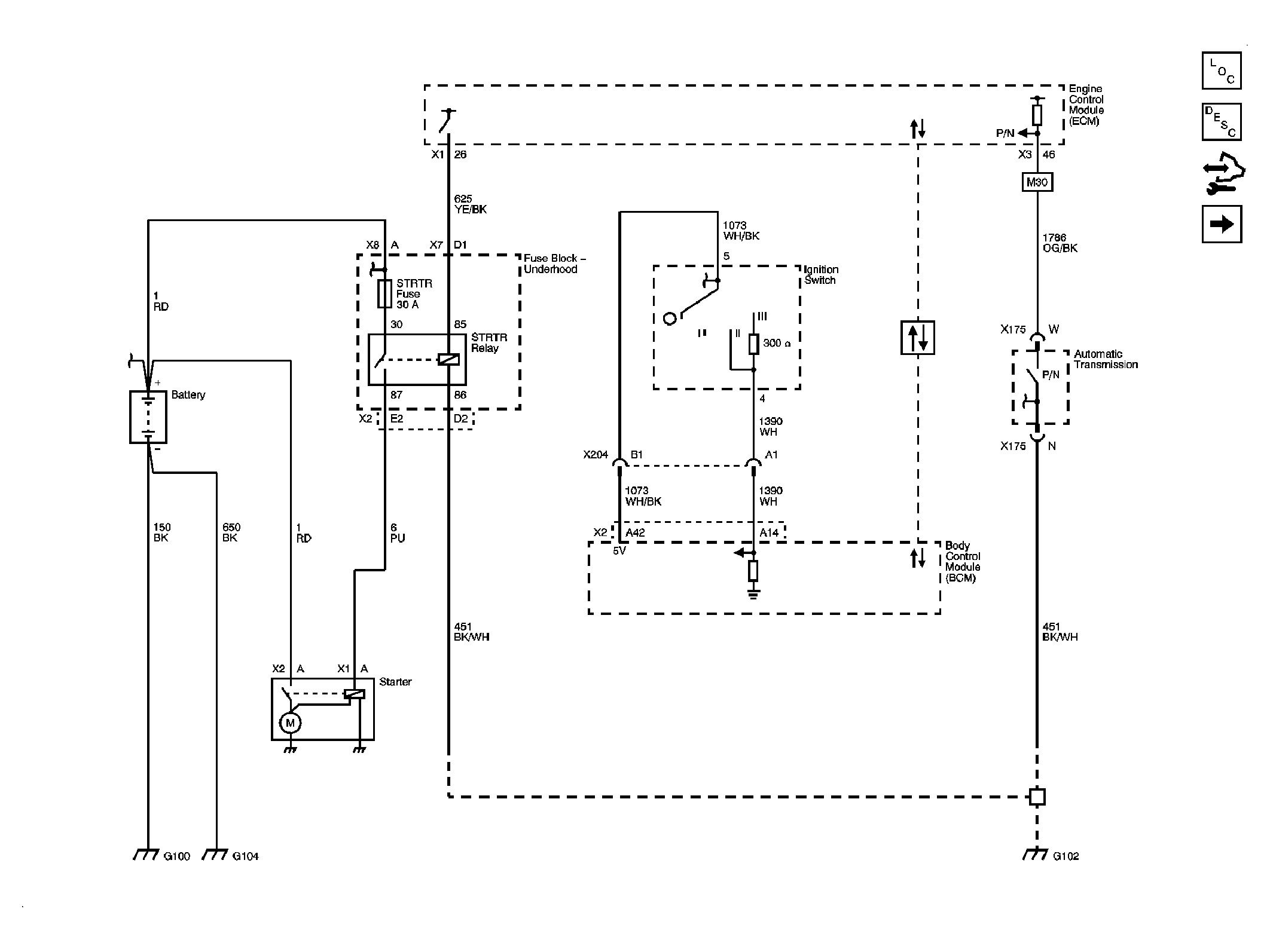

Fig 2: Starting System - M30
GM2082720Courtesy of GENERAL MOTORS CORP.

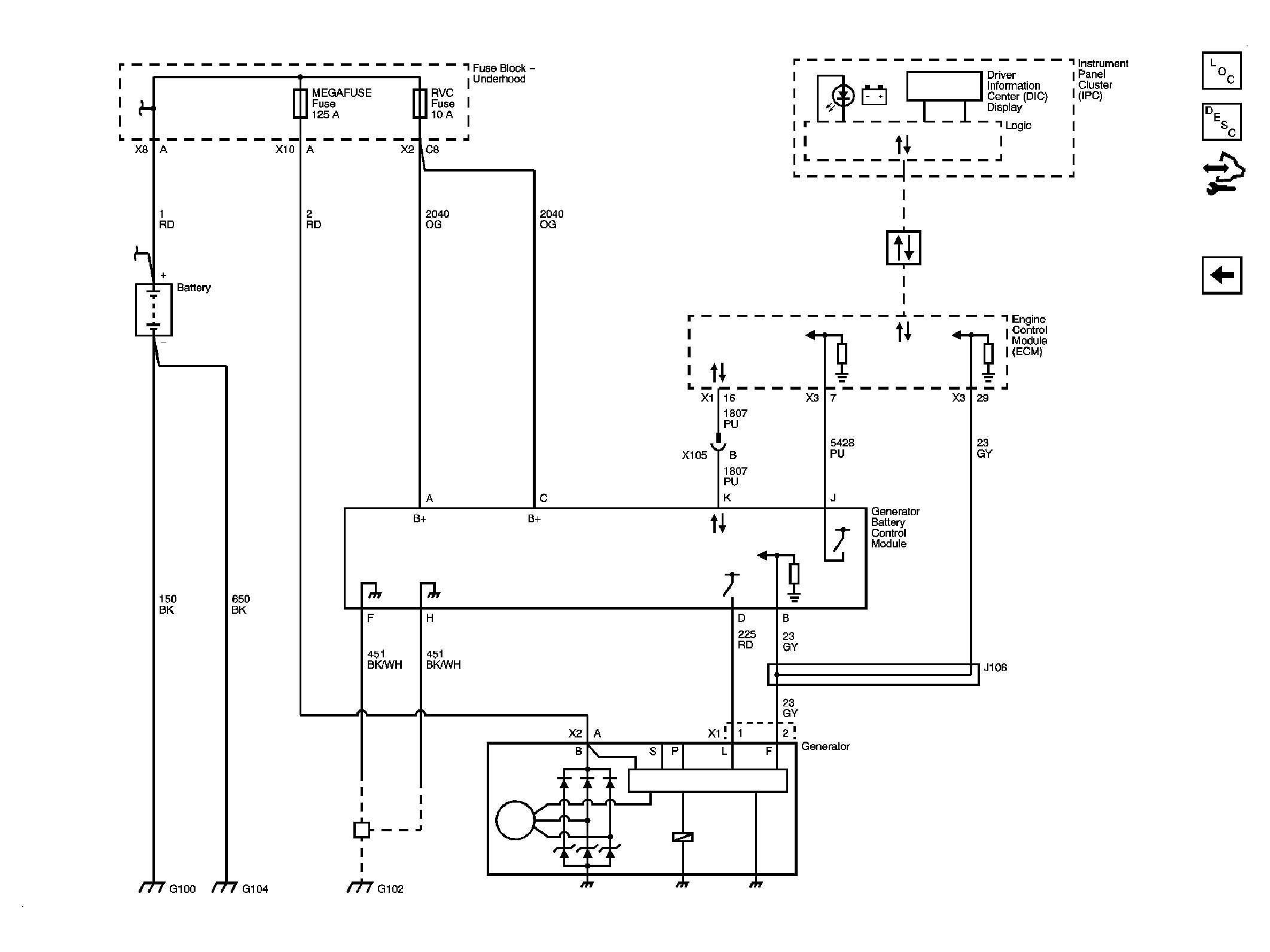

Fig 3: Charging System
GM2082722Courtesy of GENERAL MOTORS CORP.
