Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

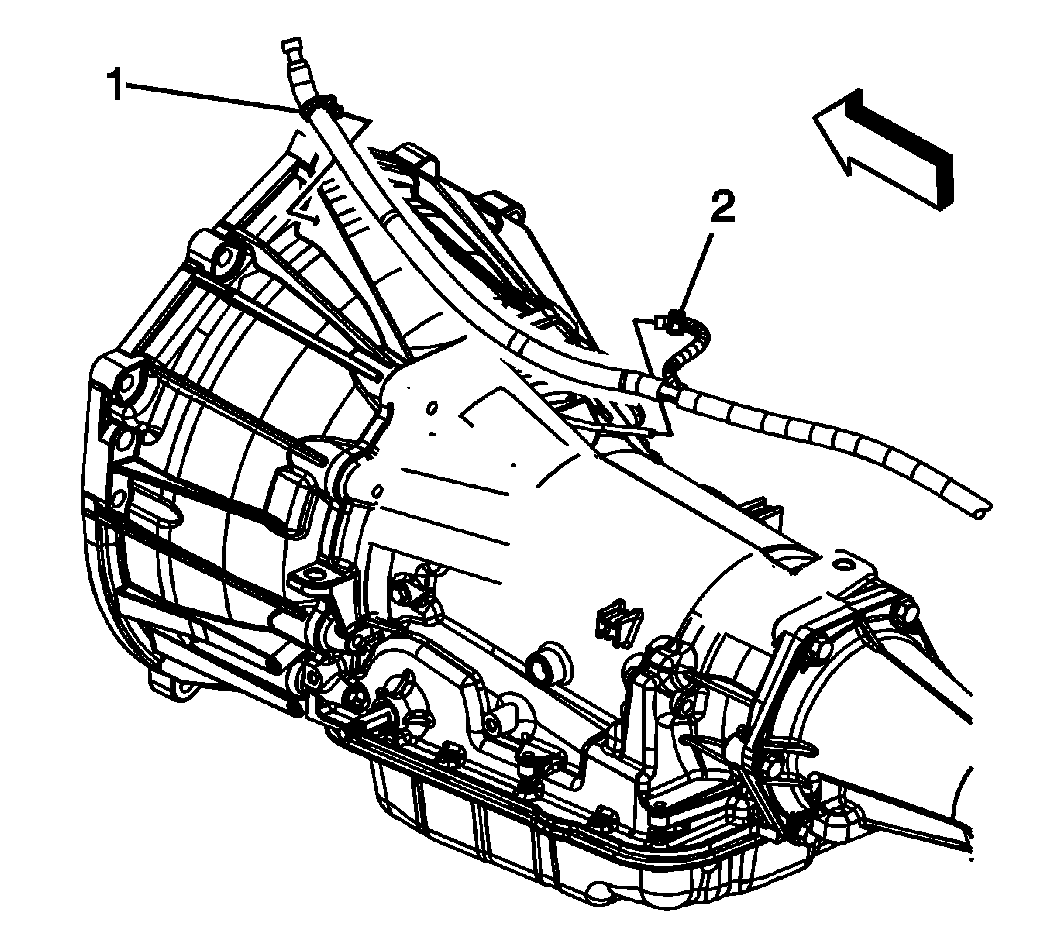

    Fig 1: Transmission Vent Hose Retainer At Transmission Housing
    GM2007884Courtesy of GENERAL MOTORS CORP.
    IMPORTANT:
    • Ensure the vent is not plugged.
    • Route the vent hose the same way as removed.
    • Ensure the vent hose is free of kinks and is routed clear of sharp objects.
  1. Connect the transmission vent hose (2) to the vent pipe.
  2. Connect the transmission vent hose retainer (1) to the transmission housing.

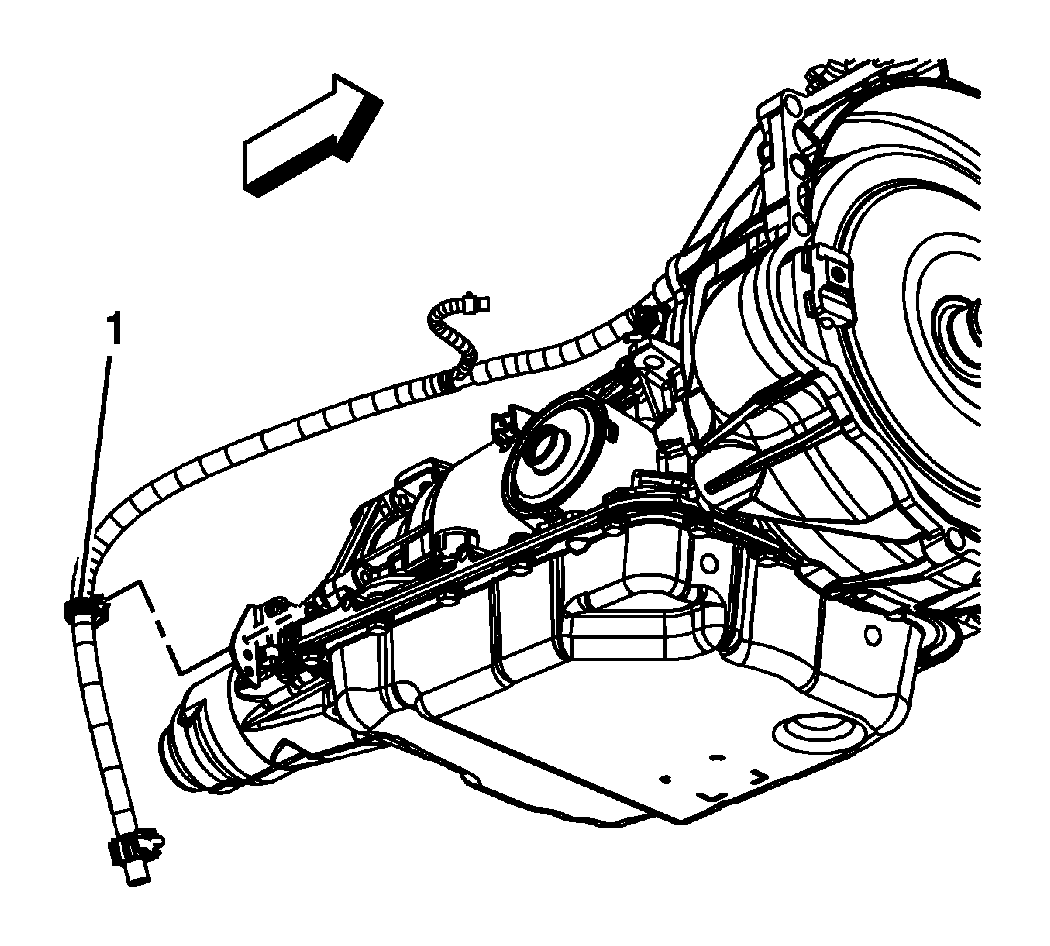

    3. Fig 2: Transmission Vent Hose Retainer At Tail Housing Bracket
    GM2007886Courtesy of GENERAL MOTORS CORP.
  3. Connect the transmission vent hose retainer (1) to the transmission tail housing bracket.

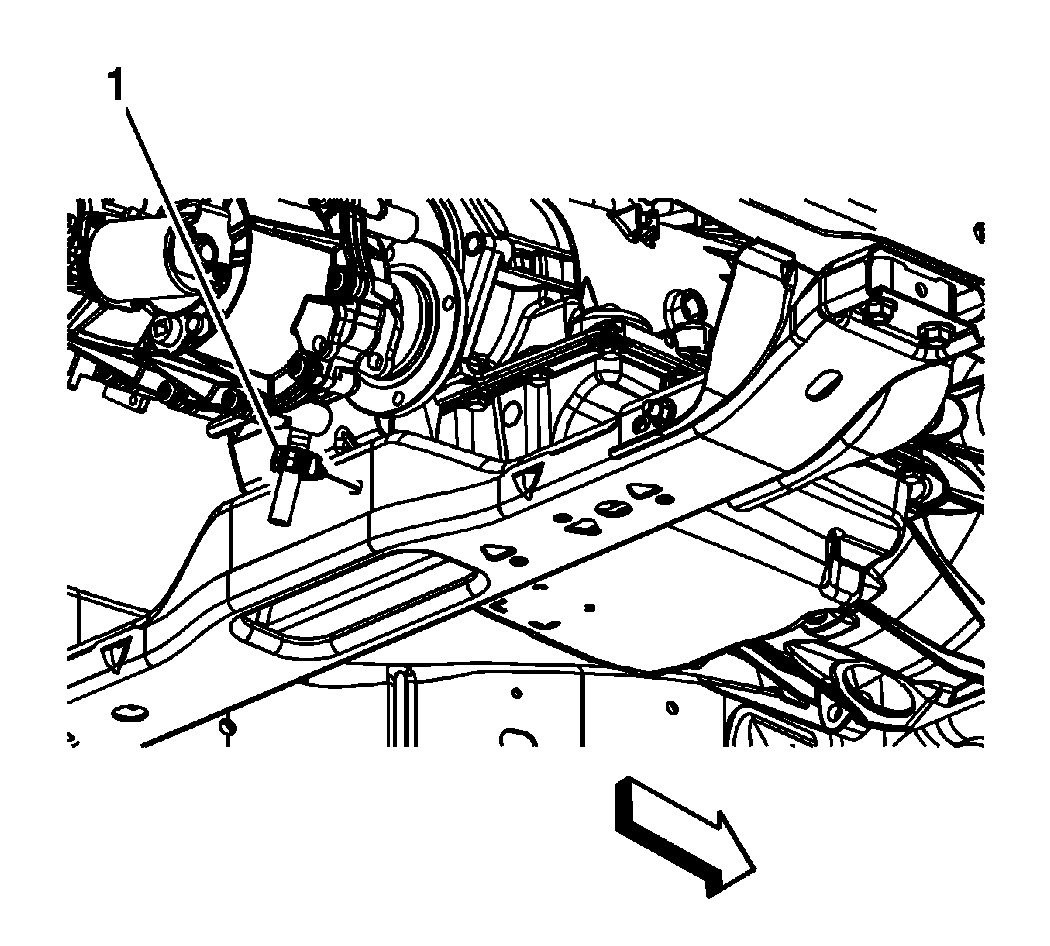

    4. Fig 3: Transmission Vent Hose Retainer At Transmission Support
    GM2007888Courtesy of GENERAL MOTORS CORP.
  4. Connect the transmission vent hose retainer (1) to the transmission support.
  5. Lower the vehicle.
